Jet Model JF225 Portable Metal Cutting Cold Saw
Click to Request this Quote and info
- Cutting Capacity: Round at 90°: 2-1/2", Round at 45°: 2" Rectangle at 90°: 2-1/2 x 2-15/16" Square at 90°: 2-1/4 x 2-1/4"
- Blade Size: 225mm x 32mm x 2mm
- Blade Speed: 52 RPM
- Maximum Vise Opening: 2-3/4"
- Motor: 1 HP, 115 Volts, 1 phase
- Weight: 84 Lbs. / 145 Lbs for shipping
- Manually cuts from 0 to 45 degrees left.
- Bronze worm gear and hardened ground worm screw gear box in an oil bath.
- Control handle with a safety spring loaded trigger switch to start or stop the machine.
- Coolant system.
- Manual vise.
- Adjustable depth stop.
Jet CS-275 Metal Cutting Cold Saw
Click to Request this Quote and info
- Cutting Capacity: Round at 90°: 3.3" (tube), 1.5" (solid) Round at 45°: 3.3" (tube), 2.5" (solid) Rectangle at 90°: 3.1 x 2.0 (tube), 3.1 x 2.0 (solid) Rectangle at 45°: 2.2 x 2.0 (tube), 2.2 x 2.0 (solid) Square at 90°: 2.5 x 2.5 (tube), 2.5 x 2.5 (solid) Square at 45°: 2.2 x 2.2 (tube), 2.2 x 2.2 (solid)
- Blade Size: 275mm x 32mm x 2mm
- Blade Speeds: 54 , 108 RPM (ferrous cutting)
- Maximum Vise Opening: 4"
- Motor: 1.5 HP, 220 Volts, 3 phase
- Weight: 400 Lbs.
Heavy duty cast iron frame and base standard. Cast dual pivot saw head. Two cutting speeds. Hardened and ground worm and wheel gear box. 1.5 gallon coolant tank capacity. Integral flood-style coolant system. 30 inch material length stop. Safety guards. Capable of slotting.

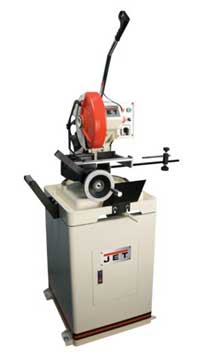

Jet CS-315 Metal Cutting Cold Saw
Click to Request this Quote and info
- Cutting Capacity: Round at 90°: 3.5" (tube), 2" (solid) Round at 45°: 3.5" (tube), 2" (solid) Rectangle at 90°: 3.2 x 3.2 (tube), 4 x 3.2 (solid) Rectangle at 45°: 2.6 x 2.6 (tube), 3.2 x 2.6 (solid) Square at 90°: 3.25 x 3.25 (tube), 3.2 x 3.2 (solid) Square at 45°: 3.125 x 3.125 (tube), 2.6 x 2.6 (solid)
- Blade Size: 315mm x 32mm x 2mm
- Blade Speeds: 52 , 104 RPM (ferrous cutting)
- Maximum Vise Opening: 4.7"
- Motor: 2 HP, 220 Volts, 3 phase
- Weight: 450 Lbs
Miter up to 135 degrees. Heavy duty cast iron frame base with a cast saw head. Long actuating handle giving the operator a lot of leverage. Clamping system operation is conducted with an cam-handle for quick release. Integral coolant system.

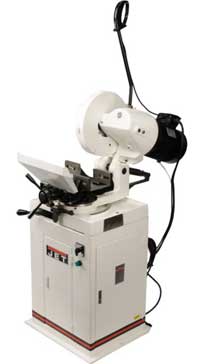

Jet JFK350-2K Ferrous Cutting Cold Saw
Jet JCK350-2K Non-Ferrous Cold Saw
Click to Request this Quote and info
- Cutting Capacity: Round at 90°: 4-1/2. Round at 45°: 3-1/2" Rectangle at 90°: 5-1/2 x 3-3/4". Rectangle at 45°: 3-1/2 x 3-1/2" Square at 90°: 4-1/4 x 4-1/4". Square at 45°: 3-1/2 x 3-1/2"
- Blade Size: 350mm x 32 x 2.5
- Blade Speeds (ferrous): 44, 88 RPM
- Blade Speeds (non-ferrous): 1750, 3500 RPM
- Maximum Vise Opening: 6"
- Motor: 2 HP, 3 phase, 230 Volts or 460 Volts (choose)
- Weight: 760 Lbs
Available as ferrous cutting or non-ferrous cutting cold saw. Manual feed, manual return. Sturdy gear box design. Manually cuts from 45° left to 45° right. Miter stops at 90°, 45° left and 45° right. Double self-centering vise for burr free cuts. Thermal overload protection with magnetic starter.

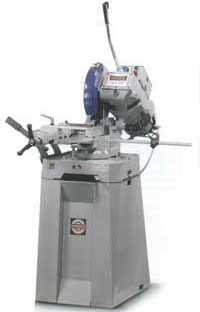

Dake Circular Cold Saws
DAKE circular cold saws will give you the finest, high-tolerance mill-grade quality cut of any cold saw on the market.
Dake Model Cut 250
Click to Request a Quote for this machine
- Cutting Capacity: @90°: 1 1/4 round solid, 2 3/4 round tube, 2 1/2 sq.tube, 3 7/8 x 1 3/4 rectangle tube. @45°: 1" round solid, 2 3/8 round tube, 2 1/8 sq.tube, 2 1/2 x 1 7/8 rectangle tube.
- 10" max blade diameter
- 44 rpm. 1.2 HP motor.
- Coolant included.
Dake Model 315CE
Click to Request a Quote for this machine
- Cutting Capacity: @90°: 2 5/8 round solid, 3 5/8 round tube, 3 1/4 sq.tube, 4 1/4 x 2 3/4 rectangle tube. @45°: 2 1/2" round solid, 3 1/2 round tube, 3 1/8 sq.tube, 3 1/4 x 2 3/4 rectangle tube.
- 12.5" max blade diameter
- 22/44 rpm. 2.5 HP motor.
- Coolant included.
Dake Model 350CE
Click to Request a Quote for this machine
- Cutting Capacity: @90°: 3 3/8 round solid, 4 3/4 round tube, 4 1/8 sq.tube, 6 1/4 x 3 1/2 rectangle tube. @45°: 3" round solid, 4" round tube, 3 3/8 sq.tube, 3 3/8 x 2 3/4 rectangle tube.
- 14" max blade diameter
- 22/44/88 rpm.
- 2/2.2/3.5 HP motor.
- Coolant included.
Options:
- Pneumatic Vise
- 78 inch Loading and Unloading Tables
Dake Technics Cold Saw
- Cutting Capacity: @90°: 3 3/8 round solid, 4 3/4 round tube, 4 1/8 sq.tube 6 1/4 x 3 1/2 rectangle tube @45°: 3 " round solid, 4" round tube, 3 3/8 sq.tube 3 3/8 x 2 3/4 rectangle tube
- Foot Switch
- Rotates 45° right, 60° left
- Adjustable Pneumatic Vise
- Adjustable Positive Stop
- 14" max blade diameter
- Blade speeds: 22 / 44 rpm.
- 2.5/3.5 HP motor.
- Coolant included.
Dake Technics 350SA Semi-Automatic Cold Saw
Click to Request a Quote for this machine
Feeds down by itself. Head returns up automatically after each cut.
Dake Technics 350A Automatic Cold Saw
Click to Request a Quote for this machine
Vise clamps automatically. Head feeds down by itself. After cutting, head returns up automatically and shuts off after the cut. Vise unclamps.
Optionals:
- Automatic Feed System
- 78" loading and unloading Tables
Dake Euromatic Semi And Fully Automatic Cold Saws
- Capacities: @90°: 4" round solid, 5" round tube, 4" sq.tube, 7 x 4 rectangle tube. @45°: 3 5/8" round solid, 5" round tube, 3 7/8 sq.tube, 6 x 4 rect tube.
- Head rotates up to 45° right for miter cutting.
- Head rotates up to 90°left for slot cutting
- Table has removeable surface wear plates.
- Mesh discharge chute for short lengths.
- Cutting head has 3 gib guides for accuracy.
- Large automatic clamping vise.
- Clip brush is self adjusting and fills removeable chip drawer.
- Clear acrylic hood with shock assists and electrical interlocks.
- 3.5/4.5 hp @ 25/50rpm(non-ferrous) or 1500/3000rpm(ferrous)
Click to Request a Quote for Semi-Automatic Machine
Click to Request a Quote for Automatic Machine

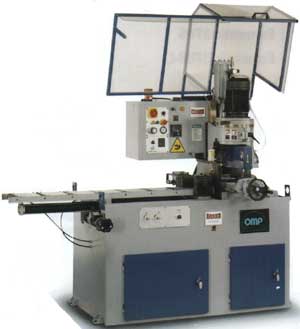

Automatic Cold Saw with 20 inch shuttle feed up that feeds stock with up to 99 strokes
