Dake-Johnson SE-712 Band Saw On Roller Cart

Click to request the info packet

.

Also works vertical by raising head up and installing table plate. 110 volts.

• Cutting Capacity:@90 degrees: 7" Round, 12 x 7" Flat Bar@45 degrees: 4" Round, 5.5 x 3.75" Flat Bar
• Blade speeds: 85, 130, 180, 235 fpm.
• Blade width: 3/4"
• Motor: 3/4 HP @ 110 volts, 1 phase
• Hydraulic control of head down feed rate
• Coolant system
• Adjustable blade guides
• Chip brush blade cleaner
• Quick release vise that can swivel for angle cuts
• Storage in a roller cart
• Also works as a vertical bandsaw

Ask about the RongFu brand version of this saw for $500 less.

Dake-Johnson SE-912 horizontal bandsaw on roller cart

Click to request the info packet

.

• Cutting Capacity:@90 degrees: 9" Round, 12 x 9" Flat Bar@45 degrees: 3.5" Round, 7.5 x 3.5" Flat Bar
• Blade speeds: 98, 164, 246, 328 fpm
• Blade width: 1"
• Motor: 1 HP @ 220 volts, 1 phase
• Hydraulic control of head down feed rate
• Coolant system
• Chip brush blade cleaner
• Adjustable blade guides
• Quick release swivel vise
• Storage in roller cart

Dake-Johnson JH10 workhorse - Made in USA

Click to Request this Quote

• Cutting Capacity: @90degrees: 10" Round, 18" wide Flat Bar@45degrees: 5" Round, 11 x 5" Flat Bar
• Blade speeds: 50, 90, 160, 270 fpm.
• Blade width: 1"
• Motor: 1 HP
• Table height: 24"
• Available in 110 volts 1 phase.
• Hydraulic control of head feed rate
• Coolant system
• Adjustable blade guides
• Chip brush blade cleaner
• Quick release swivel vise
• Head does not swivel
• Options: Casters, light, roller tables

BS-250 or 260 Swivel-Head Horizontal Band Saw

Click to Request this Quote

BS-250: swivel vise, 110 volts, 1 phase
BS-260: swivel head, 220 volts, 1 phase.

• Cutting Capacity:@90degrees: 8.75" Round, 10 x 4" Flat Bar@45degrees: 6.5" Round, 5.5" Square
• Blade speeds: 66 to 280 fpm variable
• Blade width: 1"
• Table height: 35"
• Hydraulically controlled cutting head feed
• Carbide and roller blade guides
• Head rotates to Miter up to 60° right
• Direct drive gear box

Click to see more Baileigh Band Saw machines

Dake TRAD-301 Swivel-head Horizontal Band Saw Heavy Duty

Click to Request this Quote

220 volts, 3 phase

• Cutting Capacity:@90degrees: 10" Round, 11.75 x 7" flat bar@45degrees: 7.5" Round, 7.5 x 6.5" flat bar
• Blade speeds: 108 or 216 fpm
• Blade width: 1"
• Motor: 1.3 or 2 HP
• Table height: 37"
• Hydraulically controlled cutting head feed
• Carbide and roller blade guides
• Head rotates to Miter up to 60° right
• Direct drive gear box
• Auto shut-off
• Infeed roller
• Measuring stop gauge
• Optional infeed & output roller tables

Rong Fu 1018-S Horizontal Band Saw

Click to Request the Rong Fu 1018-S Quote

• Large size light duty Metal Cutting Bandsaw Machine
• Cutting Capacity:@ 90 degrees: 10" Round or 5" x 18" Flat Bar
• Cutting Capacity @ 45 degrees: 6" Round or 6" x 9" Flat Bar
• Miter cutting @ 45 degrees using the swivel vise
• Blade Width: 1"
• Electric Motor: 2 HP, 229 volts, 1 phase.
• Belt drive blade speeds 114, 196, 228,377 feet per minute.
• Control panel mounted on saw head
• Adjustable hydraulic down feed dial on control panel
• Quick release vise for fast part changes
• Worm gearbox has hardened and ground gears
• Magnetic safety switch
• Automatic shut off
• Adjustable blade guide

AMADA HA250W Automatic Horizontal Band Saw

Click to Request a Quote for Amada HA250W

• Cutting Capacity Round (dia.): 0.5" - 10" [13 - 250mm]
• Cut Capacity Rectangle (W x H): 12" x 10" [300 x 250mm]
• Work Load Capacity: 3307 Lbs. [1500 kg]
• Cutting Control: Oil pressure flow control valve
• Main Split Vise and Rear Vise with hydraulic cylinders
• Motors: Blade 5 HP, Hyd Pump 1 HP, Fluid Pump 1/4 HP
• Electrics: 208/220/240 or 440/480 Volts, 3 phase, 60 Hz

Features:

• 9 Times Multi-Indexing up to 141"
• Chip Conveyor
• Diagnostic Lights
• Index Floating Vise
• Kerf Compensating Dial
• Motion detector
• Piece Counter
• Pressure Flow Valve
• Split Vise
• Variable Blade Speed Drive
• Zero Clamp Vise

A less expensive semi-automatic version is also available

Options:

• Roller tables
• Vertical clamps
• Vise pressure control

VERTICUT 280S (straight cut) & 280M (mitering)

280S - straight cuts plus swivel vise

Click to Request a Quote for the 280S

280M - head swivels for miter cuts

Click to Request a Quote for the 280M

• Cutting Capacity @90°: 11" Round
• Cutting Capacity @45°: 10" Round
• Cutting Capacity @90°: 9 high x 16" maximum width
• Speeds: 65, 95, 140, 295, 280 feet/min
• Blade Width: 1"
• Max piece weight: 3000 Lbs.
• Machine weight: 1350 Lbs.
• Motor: 2 HP, 220 or 440 or 575 volts, 3 phase

280S: Mitre cuts up to 45 degrees by swiveling vise.

280M: Saw frame swings 45 degrees allowing mitre cutting without swinging the material. Saw frame cam locks with frame angle indicating scale. Hard stops at 0 and 45°. Material discharge table built in conveyor with 5 rollers for material feed.

BOTH MACHINES:

• Scissor type saw with heavy duty all welded design for rigidity and strength
• Flood coolant system with catch area built into the base
• Quick adjusting material clamp
• Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
• Flood coolant system to both saw guides
• Steel wheels
• Heavy duty cast iron gear box designed for band sawing machines, with precision machined worm, phosphorous bronze worm gear, taper roller bearings and oil bath lubrication
• Magnetic motor starter with automatic shut off at the end of cut
• Cutting feed hydraulically regulated with quick shut off to avoid valve adjustments
• CSA approved electrics.
• Manufactured in Canada.

Options:

• Variable Speed Drive
• 3 Phase Disconnect
• Single Phase Power
• Conveyor
• Shipping Crate

Click for our Double Column Band Saw machines

VERTICUT 400M

Click to Request a Quote for the 400M

Features:

• Cutting Capacity@90 degrees: 16" Round
• Cutting Capacity@45 degrees: 14" Round (left/right)
• Cutting Capacity@60 degrees: 10" Round
• Cutting Capacity@90 degrees: 21" max width @ 8" height
• Blade Width: 1", Variable Blade Speed variable from 70 to 450 feet/minute
• Max piece weight: 3000 Lbs.

• Scissor type saw with heavy duty all welded design for rigidity and strength
• Saw frame swings 45 degrees forward, 60 degrees to the rear allowing mitre cutting with out swinging the
• Hydraulic saw head lift and full stroke material clamp
• Large base for stability with large coolant catch area
• Pivot uses taper roller bearings for a highly rigid machine with smooth low friction movement
• Control station mounted on a swinging console
• Cutting feed hydraulically regulated with feed rate scale
• Automatic shut off at the end of cut, motor thermal overload protection
• Power disconnect on machine
• Powered blade brush to remove cutting chips
• Adjustable material length stop for repetitive cutting
• Ductile iron wheels
• Blade guides are carbide faced with rollers to remove blade twist and dampen vibration, internal coolant channel to lubricate guides and direct coolant onto blade
• Flood coolant system to both saw guides with adjustable flow rates
• Quality made in Canada
• Motor: 3 HP, 220 or 440 or 575 volts, 3 phase
• CSA / UL approved electrical components.

Options:

• 220V 1 Phase Power
• Work Light
• Heavy Duty 5 hp with 1 1/4" blade
• Shipping Crate
• Conveyor

BIRMINGHAM Vertical Saws

Standard Equipment:

• Saw blade butt welder with integrated annealing unit
• Blade shear, grinder
• Built in blade and tire cleaning brush
• Work light.

Optionals:

• Rip fence for straight, repeated cutting
• Miter protractor for angular cutting
• Groove table

BIRMINGHAM

Standard Equipment:

• Automatic Table Feed
• Saw blade butt welder with integrated annealing unit
• Blade shear, grinder
• Built in blade and tire cleaning brush
• Work light.

Optionals:

• Rip fence for straight, repeated cutting
• Miter protractor for angular cutting
• Groove table

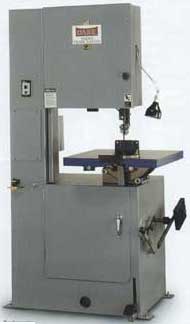

Dake Trademaster Vertical Band Saw

Dake Work-A-Matic SXC Vertical Band Saw

Dake Johnson

Optional carbide blade guides, circular cutting attachment

Vertical Tiltable Head Double Miter Band Saw

VERTICUT 500MV

Cuts up to 18" wide x 25" high stuctural beams or 18" diameter pipe.

Click to Request a Quote for the 500MV Saw

VERTICUT 360MVC

Cuts up to 14" wide x 17" high stuctural beams or 14" diameter pipe (12" at 45°).

Click to Request a Quote for the 360MVC Saw

Verticut:

The sawing head of this machine can tilt to miter cut up to 45° left and 45° right. Great for cutting structurals, pipe and tubing at 90° or 45° or compound angles.

Features:

• Made in Canada
• Angle is adjustable
• Swivel vise for many angles
• Adjustable angle stops
• Separate feed controls
• Variable feed
• Powered chip brush
• Variable speed
• Hydraulic vises, left & right for model 500MV and hand crank vises for model 360MVC
• Coolant system
• Depth stop, light, lockout
• CSA./UL appd components
• Choose from 208/220 volts or 380 volts or 440/480 volts or 575 volts, 3 phase electrics
• OPTIONAL: 10 foot long Infeed and Output conveyors
