GMSG-618M & GMSG-818M
Click to Request a Price Quote for model GMSG-618
Click to Request a Price Quote for model GMSG-818
- High Precision machine made in Taiwan
- ISO 9001 factory
- Precision roller ball ways
- Heavy duty "Meehanite" casting
- Roller tracks are Turcite-B coated for long life
- Turcite B Coating on slide ways
- Double Vee cross
- Complete coolant system included
- Full length splash guards
- Table load capacity 300 Lbs.
- Hardened & precision ground & hand scapped ways
- Dynamically balanced spindle run-out within 0.0002"
- Safety 24 Volts low voltage electric controls & overload protection
- Automatic continuous lubrication for all ways & lead screws
- Adjustable longitudinal table stops and cross feed lock
- (4) Preloaded class 7 high precision angular contact spindle bearings for precision grinding
- Main Motor: 2 HP, 208V/220V/230 Volts, 3phase (440 volts optional)
- Halogen work light installed
- Grinding wheel with flange, 8" dia. x 3/4" thick x 1-1/4" bore
- Grinding wheel extractor included
- Diamond wheel dresser with base
- Balance stand, wheel wrench & balance arbor.
- One year warranty for parts.
SPECIFICATIONS - GMC Surface Grinders:
- Table Chuck Size GMSG-618M: 6 x 18 inches
- Table Chuck Size GMSG-818M: 8 x 18 inches
- Max Grinding Size, W x L: GMSG-618M: 6.25 x 18.75
- Max Grinding Size, W x L: GMSG-818M: 7.87 x 18.75
- Max Cross Travel: GMSG-618M: 6.3 inches
- Max Cross Travel: GMSG-818M: 9 inches
- Max Cross Travel: 19 inches
- Distance - spindle centerline to table: 16.5 inches
- Cross handwheel graduation: 0.001"
- Cross travel per handwheel revolution: 0.05"
- Vertical downfeed handwheel graduation: 0.0002"
- Vertical downfeed per handwheel revolution: 0.05"
- Spindle Speed: 3600 RPM
- Spindle Motor: 2 HP
- Machine Size GMSG-618M: 55 x 41 x 79 inches
- Machine Size GMSG-818M: 63 x 49 x 79 inches
- Machine Weight GMSG-618M: 1720 Lbs.
- Machine Weight GMSG-818M: 1920 Lbs.

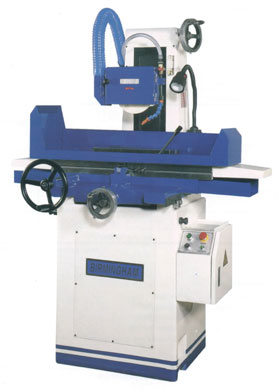

Birmingham Surface Grinders
WS-618 & WS-818
Click to Request a Price Quote for model WS-618
Click to Request a Price Quote for model WS-818
- Less expensive machine made in China
- Fine Graduation on Travels
- Cartridge Wheel Spindle
- Smooth Roller Way Table
- Auto Lubrication on Leadscrews & Ways
- Fine grain high tensile casting
- Grinding wheel with flange, 8" dia. x 1/2" thick x 1-1/4" bore
- Wheel Balance Arbor
- Diamond Wheel Dresser
- Work Light
- Coolant System
- Standard Permanent Magnetic Holder
- Tool Box
- Hoisting Set
- Leveling Pads
- One year warranty for parts.
SPECIFICATIONS - Birmingham Surface Grinders:
- Table Chuck Size WS-618: 6.5 x 18.5 inches
- Table Chuck Size WS-818: 8.25 x 19.75 inches
- Max Grinding Size, W x L: WS-618M: 6.5 x 18.5
- Max Grinding Size, W x L: WS-818M: 8.25 x 18.75
- Max Cross Travel: WS-618M: 7 inches
- Max Cross Travel: WS-818M: 9 inches
- Max longitudeinal Travel WS-618M: 19 inches
- Max longitudeinal Travel WS-818M: 21.6 inches
- Distance - spindle centerline to table WS-618: 15.5 inches
- Distance - spindle centerline to table WS-818: 19.75 inches
- Cross travel per handwheel graduation: 0.001"
- Cross travel per handwheel revolution: 0.2"
- Vertical downfeed handwheel graduation: 0.00025"
- Vertical downfeed per handwheel revolution: 0.05"
- Spindle Speed: 3600 RPM
- Spindle Motor: 2 HP
- Machine Size WS-618: 55 x 39 x 71 inches
- Machine Size WS-818: 59 x 47 x 72 inches
- Machine Weight WS-618: 1600 Lbs.
- Machine Weight WS-818: 2300 Lbs.
