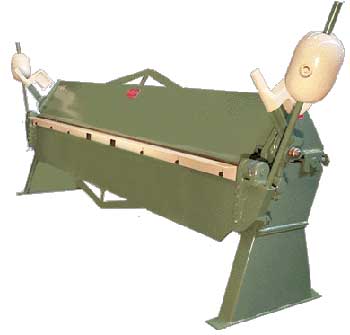

Standard Sheet Metal Hand Brake:
Chicago Dreis & Krump heavy duty machinery construction. Designed for accurate and economical bending of standard and special design forms. Ideal for bending mild steel with a 1 inch minimum flange to the rated capacity of the machine. Capable of 1/4 inch reverse bends on lighter metal. Even usuable for occassional hemming.
Options most hand brakes can't offer:
- Handwheel Back Gauge - 25 inch travel to measure and square up your metal (see below)
- Insert Bar - 1/4 inch (for closer offset bends)
- Radius Formers - for forming gutters, mouldings, prototypes, etc, from thin sheet metal.
Click to see push button operated hydraulic powered sheet metal bending machine
NOTE: Mild Steel = 55,000 psi tensile strength and Stainless Steel = 90,000 psi tensile strength
|
CLICK MODEL NUMBER to Request a Quote |
Bending Length | CAPACITY | Shipping Weight | |
| Mild Steel | Stainless Steel | |||
| SB 412 | 48.5" | 12 gauge(.105") | 16 gauge(.06") | 1800 |
| SB 612 | 73" | 12 gauge(.105") | 16 gauge(.06") | 2275 |
| SB 812 | 97" | 12 gauge(.105") | 16 gauge(.06") | 3300 |
| SB 816 | 97" | 16 gauge(.06") | 20 gauge(.036") | 2100 |
| SB 1016 | 121" | 16 gauge(.06") | 20 gauge(.036") | 3400 |
| SB 1014 | 121" | 14 gauge(.075) | 18 gauge(.048") | 3860 |
| SB 1218 | 145" | 18 gauge(.048") | 22 gauge(.03") | 4200 |
BOX & PAN SHEET METAL HAND BRAKE: See chart below.
Incorporates all of the outstanding features of the standard hand brake plus removable, sectioned fingers that can bend any length of metal from 3 inches long to the full length of the machine. Boxes and pans can be up to 6 inches deep. A very versatile well built Chicago Dreis & Krump machine.
Options most hand brakes can't offer:
- Handwheel Back Gauge with 25" travel to measure and square up your metal (see below)
- Extension Fingers (to form rigid inside corners with a return flange across the top)
- Open End Fingers (to form tubes of triangular, square, rectangular, or tapered shape)
- Radius Nose Bars up to 1.5" (great for aluminum aircraft work)
- Insert Bar - 1/4 inch (for closer offset bends)
- Radius Formers - for forming gutters, mouldings, prototypes, from thin sheet metal.
|
CLICK MODEL NUMBER to Request a Quote |
Bending Length | CAPACITY | Shipping Weight | |
| Mild Steel | Stainless Steel | |||
| BPU 412-6 | 48" | 12 gauge(.105") | 16 gauge(.06") | 2065 |
| BPU 612-6 | 72" | 12 gauge(.105") | 16 gauge(.06") | 2670 |
| BPU 812-6 | 96" | 12 gauge(.105") | 16 gauge(.06") | 3750 |
| BPU 1014-6 | 120" | 14 gauge(.075) | 18 gauge(.048") | 4350 |
| MODEL | Width and number of Fingers included | ||||
| 3" | 4" | 5" | 6" | Total | |
| BPU 412-6 | 5 | 2 | 5 | 0 | 12 |
| BPU 612-6 | 5 | 4 | 7 | 1 | 17 |
| BPU 812-6 | 5 | 6 | 9 | 2 | 22 |
| BPU 1014-6 | 6 | 10 | 10 | 2 | 28 |
Add an optional Chicago Dreis & Krump Back Gauge:
Who says a hand brake can't have sophistication?

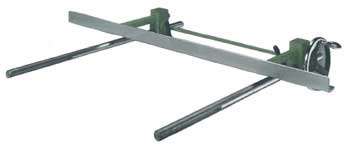

Tired of always using a tape measure to mark lines that must be lined up with the nose bar? This back gauge has a 25 inch travel with a inch/cm scale so it is a must for those who want a labor saving, time saving, accuracy improving hand cranked back gauge to speed up production and improve quality. It measures where your metal bend will be and it squares up your metal to the machine.
Benchtop / Portable Sheet Metal Hand Brake

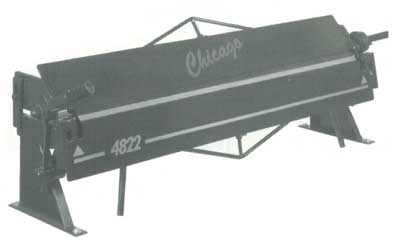

Tabletop Standard Sheet Metal Brake:
Optional floor stand (not shown) is $160 extra
The full featured machines are constructed with hefty steel weldments using brass hinge pins for smooth operation and trouble free forming. Clamp handles include plastic covers for positive grip. Their easy operation, precision performance, portability and cost make them perfect for light duty table top use, on-site work, sheet metal shops, industry and vocational schools.
Click to Request a formal Quote
| MODEL | Price |
Bending Length |
Capacity Mild Steel |
Lift of Beam |
Beam Adjust |
Max. Reverse Bend |
Min. flange in capacity material |
Shipping Weight Lbs. |
| SB-4816 | $1875 | 48 1/2" | 16 Ga. | 1 3/4" | 5/8" | 1/4" | 1" | 520 |
Benchtop Box & Pan Sheet Metal Hand Brake
Optional floor stand (not shown) is $160 extra
These full featured machines are constructed with hefty steel weldments using brass hinge pins for smooth operation and trouble free forming. Clamp handles include plastic covers for positive grip. Their easy operation, precision performance, portability and cost make them perfect for light duty benchtop use, on-site work, HVAC shops, industry and vocational schools.
Removable, sectioned fingers that can bend metal from 2" in length, up to the full length of the machine. Comes with (5) 2" fingers, (6) 3" fingers and (5) 4" fingers.
Click to Request a formal Quote
| MODEL | Price | Bending Length |
Capacity Mild Steel |
Lift
of Beam |
Beam Adjust |
Max. Reverse Bend |
Min.
flange
in capacity material |
Shipping Weight Lbs. |
| BPU-4816-4 | $2195 | 48 1/2" | 16 Ga. | 1 3/4" | 5/8" | 1/4" | 1" | 575 |
Magnetic Box & Pan Sheet Metal Hand Brake
A magnet holds your metal during bending!
Maximum Length: Choose from 48" long or 96" long
Maximum thickness: 16 gauge steel or 20 gauge stainless.
Electric Power: 220 volts, 1 phase.
Click to Request a Quote for the 48" machine
Click to Request a Quote for the 96" machine
A strong 6 ton magnet in the bed is activated by foot pedal or push button control to hold down a mild steel clamping bar of almost any configuration across the bed width or bed length. The sheet metal is pinned between the magnetic mild steel clamping bar. The bottom bending leaf is lifted to make the bend. The steel clamping bar can be made of straight bars (of various widths for tight boxes) for straight bends or segmented clamping bars for box and pan applications of any other configuration such as totally enclosed boxes, triangles, alternate bends on varying planes, round items such as scrolling applications, and much more. Great for bending mild steel sheet metal, stainless steel, aluminum, coated materials, and heated plastics. The bottom leaf’s bending extension can be removed for the tightest bends. The scaled stroke angle control can be set for repeat bends. Parts supports and adjustable back gauge for production runs, east to use gap adjustments on the clamping bars for different sheet metal thicknesses.
Diamond Pattern Forming Machine GMC DFM-20
Click to Request a Quote for this machine
This machine forms Diamond Plate Pattern
on stainless steel for truck doors, catering trucks, kitchen, etc.
Features: Capacity 50" x 20 gauge Stainless Steel.
Motor: 2 HP, 110 Volts. Variable Speed.
Infeed table with side gauge.
Machine weight: 1650 Lbs
Dimensions: 63" x 53" x 43 inches
Made in Taiwan
Hand Operated Sheet Metal Notcher
To notch out the corners for making box or pan shapes using pull down lever
Maximum Force: 4 Tons
Max Notching size: 6" x 6"
Metal Capacity: 16 gauge (.06") [1.6mm]
Stroke: 3/4"
$895. Call 773-334-5000 to order this machine.
Weight: 220 pounds. Optional Stand: $195.
