JET Drill Press Machines

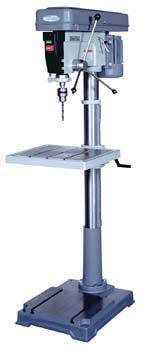

JET 2500/2550 15" & 20" Step Pulley Drill Presses

Click to Request this Quote

• Cast iron head with spindle that four heavy duty sealed ball bearings.
• Large T-slotted production work table.
• 3-3/8" stroke for deep hole applications.
• Accurate depth stop for precise hole depths.
• 5/8" Drill chuck & arbor included.

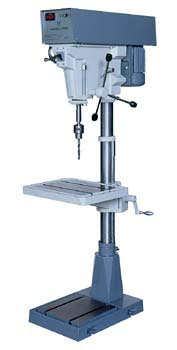

JET A5816/A5818 15" Variable Speed Drill Press

Click to Request this Quote

• Available as floor model or bench style
• Speeds from 400 to 5,000 RPM
• Handwheel adjustment sets the speeds
• Large 2-1/4" quill allows greater accuracy
• Full bearing support on quill for maximum spindle stiffness
• 6" stroke for deep hole applications.
• Accurate depth stop for precise hole depths.
• 1/2" Drill chuck & arbor included.
• Electric:1 HP, 115/220 Volts, 1 phase OR 1 HP, 220/440 Volts, 3 phase
• Cast Iron Drilling Capacity: 5/8"
• Steel Drilling Capacity: 1/2"
• Column Diameter: 3"
• Distance Spindle to Column: 7-1/2"
• Distance Spindle to Table: 41"
• Table Size: 15-1/4 x 17-3/4"
• Height: 67-1/2"
• Weight: 436 Lbs.

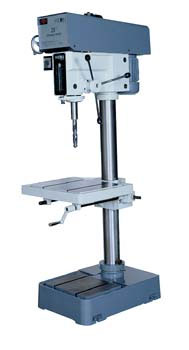

JET 2221/2223VS 20" Variable Speed Heavy Duty Drill Press

Click to Request this Quote

• Variable spindle speeds from 300 to 2000 RPM .
• 6" spindle/quill travel ? External #3 Morse Taper.
• Front mounted positive control depth stop.
• Massive 3" quill diameter.
• Heavy duty cast iron design.
• Large precision ground T-slot production table for easy set ups.
• Front or side rack and worm gear table raiser.
• Table rotates 360° around the column.
• Machined T-slotted base.
• Head is massively constructed for more accuracy and rigidity.
• Electric:1.5 HP, 115/220Volts, 1 phase OR 2 HP, 220/440 Volts, 3 ph
• Cast Iron Drilling Capacity: 1-1/4"
• Steel Drilling Capacity: 1-1/4"
• Column Diameter: 4-1/2"
• Distance Spindle to Column: 10-7/16"
• Distance Spindle to Table: 32-3/8"
• Table Size: 18-1/8 x 14-3/4"
• Height: 77-1/4"
• Weight: 715 Lbs.

Options:

• 3/4" Chuck with adapter for #3 morse taper
• Coolant System

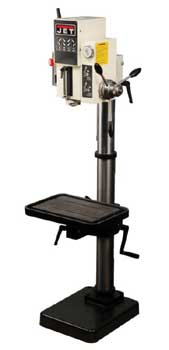

JET 2232/2234AC 20" Electronic Variable Speed Drill Press

Click to Request this Quote

• Variable spindle speeds from 65 to 2000 RPM. Great for Tapping.
• High torque at all speeds both forward and reverse for tapping.
• Latest AC inverter variable speed technology.
• Continuous speed adjustment while in operation.
• Front mounted LED spindle RPM readout.
• Front mounted positive control depth stop.
• Electrics: 2 HP, 220/440 Volts, 3 phase.
• #3 Morse taper spindle.
• Emergency stop
• Cast Iron Drilling Capacity: 1-1/2"
• Steel Drilling Capacity: 1-3/8"
• Column Diameter: 4-1/2"
• Distance Spindle to Column: 10-7/16"
• Distance Spindle to Table: 32-3/8"
• Table Size: 18-1/8 x 14-3/4"
• Height: 82-1/4"
• Weight: 792 Lbs.

Options:

• 3/4" Chuck with adapter for #3 morse taper
• Coolant System

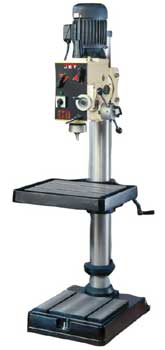

JET model GHD-20T 20" Geared Head Drill Press

Click to Request this Quote

• Motor 2HP, 230V, 3 phase, 2-speed
• Spindle speeds(12): (RPM) 120, 260, 460, 900, 1600, 3000, 60, 130, 230, 450, 800, 1500
• Spindle Taper MT-3
• Quill Diameter (in.) 3
• Max Distance Spindle to Table ( in.) 30-1/2
• T-Slots Number and Size (in.) 2 x 5/8 T-Slot Centers (in.) 9
• Work Table Weight Capacity (lbs.) 275
• Column Diameter (in.) 4-1/2
• Drilling Capacity Cast Iron (in.) 1-1/2. Drilling Capacity Mild Steel (in.) 1-1/4. Tapping Capacity Cast Iron (in.) 13/16
• Quill Travel (in.) 5
• Table Size (in.) 21-3/4 x 19-1/2
• Drills to Center of Circle (in) 20
• Spindle Distance to Base (in.) 44-5/16
• Swing (in.) 10 Base Work Table (in.) 15-1/4 x 13 Base Slots
• Number & Size (in.) 2 x 5/8.
• Dimensions: 32 x 24 x 71. Weight 700 pounds

Features:

Heavy-duty design allows a variety of precision drilling and tapping applications. Easy to read internal depth gauge. Built-in spindle lock. Head tilts left or right. Easy accessible table raiser. Large production table and T-slotted base. Integrated tapping and reversing controls. T-slotted worktable. Drill chuck arbor. Draw bar. TEFC Motor

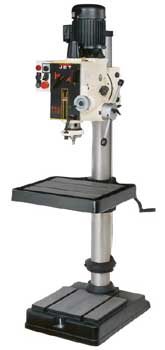

JET model GHD-20PFT 20" Geared Head Drill Press with power downfeed

Click to Request this Quote

• Motor 2HP, 230V, 3 phase, 2-speed
• Spindle speeds(12) (RPM) 120, 260, 460, 900, 1600, 3000, 60, 130, 230, 450, 800, 1500
• Spindle Taper MT-3
• Quill Diameter (in.) 3
• Max Distance Spindle to Table ( in.) 30-1/2
• T-Slots Number and Size (in.) 2 x 5/8. T-Slot Centers (in.) 9
• Work Table Weight Capacity (lbs.) 275
• Column Diameter (in.) 4-1/2
• Drilling Capacity Cast Iron (in.) 1-1/2. Drilling Capacity Mild Steel (in.) 1-1/4. Tapping Capacity Cast Iron (in.) 13/16. Tapping Capacity Mild Steel (in.) 1/2
• Quill Travel (in.) 4-1/2
• Quill Travel w/ Powerfeed engaged (in.) .004, .007, .01
• Distance Base to Spindle (in.) 44-5/16 Table Size (in.) 21-3/4 x 19-1/2 Distance Column to Spindle (in.) 10 Drills to Center of Circle (in) 20 Spindle Distance to Base (in.) 44-5/16 Swing (in.) 20 Base Work Table (in.) 15-1/4 x 13
• Spindle Travel (in.) 4-1/2 Manual, Auto 4-1/4
• Number of Powerfeeds 3
• Base Slots Number & Size (in.) 2 x 5/8
• Dimensions 32 x 24 x 71. Weight 708 pounds

Features:

Heavy-duty design allows a variety of precision drilling and tapping applications. Easy to read internal depth gauge. Three power down feeds. Calibrated fine down feed built-in. Built-in spindle lock. Head tilts left or right. Easy accessible table raiser. Large production table and T-slotted base. Integrated tapping and reversing controls. T-slotted worktable. Drill chuck arbor. Draw bar. TEFC Motor.

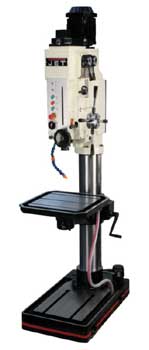

JET model J-2360 20" Geared Head Drilling & Tapping Press with powerfeed

Great for Tapping

Click to Request this Quote

• Motor 4 HP, 230/460V, 3 phase, Prewired 230V.
• Spindle speeds(9)(RPM) 55, 98, 156, 198, 346, 456, 576, 822, 1338
• Spindle Taper MT-4
• Quill Diameter (in.) 3.465
• Max Distance Spindle to Table ( in.) 30-1/2
• T-Slots Number and Size (in.) 3 x 5/8
• Work Table Weight Capacity (lbs.) 400
• Drilling Capacity Cast Iron (in.) 2-5/32 Drilling Capacity Mild Steel (in.) 2 Tapping Capacity Cast Iron (in.) 2 Tapping Capacity Mild Steel (in.) 1-3/4
• Quill Travel (in.) 10. Quill Travel w/ Powerfeed engaged (in.) 10
• Quill Down feed Rates (IPR) .003, .006, .010, .014
• Distance Base to Spindle (in.) 50
• Distance Column to Spindle (in.) 15
• Spindle Distance to Base (in.) 50
• Swing (in.) 15
• Max Distance - Spindle to Table (in) 30-1/2
• Quill Feed 4
• Spindle Travel (in.) 10
• Quill Down feed Rates (IPR): .003, .006, .010, .014
• Number of Powerfeeds 4
• Base Slots Number & Size (in.) 5/8. Table 22 X 19
• Spindle Distance to Table (max./in.) 30-1/2
• Spindle Distance to Table (min./in.) 2-3/4
• Base Dimensions (LxWxH) 108 x 30 x 53 inches. Weight 2405 Lbs

Features:

Direct drive round column drill press with mechanical clutch. Two speed forward and reverse switch. Mechanical powerfeed clutch engagement. Heavy duty quill and spindle. Tempered, ground spindle with internal taper mounted in precision bearings for maximum accuracy, minimizing deflection. Speed and feed selectors are located on one side of the drill head for convenience and ease of operation. Oversized base is precision ground with T-slots for added versatility and stability. Spindle gear box is equipped with steel hardened, ground, shafts and gears. Spindle gear box is internally lubricated in a continuous oil bath for long term smooth operation. Tilting table, 45° left and right. Powerfeed can be disengaged manually. Automatic tool ejector. Manual quill lock. Coolant system. Low voltage at switch.

JET model J-A2608M-PF2 20" Geared Head Drill Press with Powerfeed

Click to Request this Quote

• Motor 1 & 1.5 HP, 220 Volts, 3 phase
• Spindle speeds(8) (RPM) Low-130, 260, 420, 840; High-535, 1070, 1745, 3480
• Spindle Taper MT-3
• Quill Diameter (in.) 2-3/8
• Max Distance Spindle to Table ( in.) 35-5/8
• T-Slots Number and Size (in.) 2 x 9/16
• Work Table Weight Capacity (lbs.) 350
• Column Diameter (in.) 3-15/16
• Base Dimensions (LxWxH/ in.) 24 x 22
• Drilling Capacity Cast Iron (in.) 1-3/8 Drilling Capacity Mild Steel (in.) 1-1/4 Tapping Capacity Cast Iron (in.) 5/8 Tapping Capacity Mild Steel (in.) 1/2
• Quill Travel (in.) 5-1/8
• Quill Down feed Rates (IPR) .004, .006, .009, .012
• Drills to Center of Circle (in) 20
• Table Travel (in.) 24-1/2
• Max Distance - Spindle to Table (in) 35-5/8
• Quill Feed Power Spindle Travel (in.) 5-1/8
• Number of Powerfeeds 4
• Vertical Movement of Drill Head 8-5/8
• Vertical Movement of Table (in.) 24-1/2
• Table 15-3/4 x 19-3/4
• Overall Dimensions 24 x 22 x 72. Weight 600 pounds

Features:

Helical gears for smooth quiet operation. Quick release drill ejector. Safety latch to prevent head dropping when unclamped. Eight spindle speeds. T-Slotted table with coolant through Head and table rotate 360 degrees around column 2 position, High/Low switch 3-15/16" Column diameter English/Metric depth gauge.

Rong Fu RF-31 Mill-Drill

Click to Request this Quote

• Motor: 2HP, 1 phase 110 volt or 220 volt or 3 phase 220 volt
• Spindle Speeds: (12) 120 to 2500 rpm
• Spindle Taper : R8
• Spindle/Quill Travel: 5-1/8"
• Spindle to column: 5-1/2"
• Working Table: 8.25" x 28.75"
• Table Longitudinal X travel: 18-1/8"
• Table Cross Y Travel: 6-1/4""
• Shipping weight: 700 Lbs
• Capacity: drilling - 1.25" (steel), tapping - 1/2" (steel), end mill: 3/4", face mill - 4"
• Standard Accessories: 3.5" angle type drill press vise, 1/2" drill chuck w/key, drill chuck arbor R8/JT6, 3" face cutter, shell mill arbor, forward/reverse drum switch, and draw bar.
• Manufactured in Taiwan.

Options Available:

• Cabinet with chip pan
• R8 collet sets (11 pieces)
• 52 piece clamping kit
• Work light
• Floor type coolant system
• Variable speed

Rong Fu RF-40 Geared Head Drill-Mill

Click to Request this Quote

• Head tilts 90° left and 45° right and swivels
• Motor: 1.5 HP, 110v/220volt, 1 phase or 220v/440volt 3 phase
• 5 speed spindle: 60, 130, 230, 450, 1500 rpm
• Spindle Taper : R8
• Spindle/Quill Travel: 5-1/8"
• Spindle to column: 6.5"
• Spindle to table (max): 18.5"
• Table Longitudinal X travel: 19.75"
• Table Cross Y Travel: 9"
• Shipping weight: 650 Lbs
• Capacity: drilling - 1.25" (steel), end mill: 3/4", face mill - 4"
• Standard Accessories: 1/2" drill chuck w/key, drill chuck arbor MT3/JT6, forward/reverse switch, table with standard T-slots.
• Manufactured in Taiwan.

Options Available:

• Cabinet with chip pan, power down feedCabinet with chip pan, power down feed
• 52 piece clamping kit
• Work light
• Floor type coolant system
• Digital Readout

Rong Fu RF-45 Geared Head Drill-Mill

Click to Request this Quote

• Extra heavy duty square column design
• Head tilts 90° left and 45° right
• Motor: 1.5 HP, 110v/220volt, 1 phase or 220v/440volt 3 phase
• 5 speed spindle: 60, 130, 230, 450, 1500 rpm
• Spindle Taper : R8
• Spindle/Quill Travel: 5-1/8"
• Spindle to column: 10"
• Spindle to table (max): 18.5"
• Table Longitudinal X travel: 20.5"
• Table Cross Y Travel: 8.25"
• Shipping weight: 800 Lbs
• Capacity: drilling - 1.25" (steel), end mill: 3/4", face mill - 4"
• Standard Accessories: 1/2" drill chuck w/key, drill chuck arbor MT3/JT6, forward/reverse switch, table with standard T-slots.
• Manufactured in Taiwan.

Options Available

• Cabinet with chip pan, power down feedCabinet with chip pan, power down feed
• 52 piece clamping kit
• Work light
• Floor type coolant system
• Digital Readout
