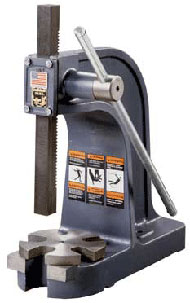

DAKE ARBOR PRESSES - made in USA
Click to Request a written Quote for this machine
- Shimmed ram cap permits take-up for potential wear.
- Adjustable handle allows convenient handle positioning.
- Smooth action gears permit finite ram control.
- Base opening and slotted table plate for arbor work (models X and Y have solid base).
- Friction Brake.
- Pedestals available on models Y, 0, and 1.
Model X: 1-ton capacity, 25:1 leverage, 7" max dia part, 4.5" max distance ram to table. $?.
Model Y: 1.5-ton capacity, 32:1 leverage, 9" max dia part, 7.5" max distance ram to table. $?. Optional Pedestal: $?.
Model 00: 1-ton capacity, 25:1 leverage, 7" max dia part, 5" max distance ram to table, 4.5" max dist ram to table plate. $?.
Model 0: 1.5-ton capacity, 32:1 leverage, 9" max dia part, 7.75" max distance ram to table, 7.12" max distance ram to table plate $?. Optional Pedestal: $?.
Model 1: 3-ton capacity, 36:1 leverage, 14" max dia part, 11.5" max distance ram to table,10.75" max distance ram to table plate. $?. Optional Pedestal: $?.

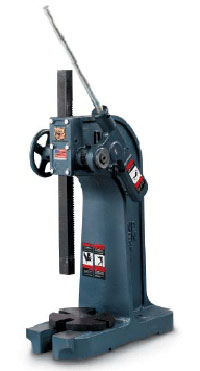

DAKE Ratcheting ARBOR PRESSES - made in USA
Click to Request a written Quote for this machine
- Ratchet allows lever to be used in most convenient position.
- Handwheel advances ram to work quickly.
- Counterweight returns lever quickly after downstroke.
- Pedestals available on 1-1/2, 1-1/2B, and 3A models.
Model 1-1/2: 3-ton capacity, Fixed Table, Friction Brake, Bench Mounted Press: $?. Optional Pedestal: $?. extra
Model 1-1/2B: 3-ton capacity, Fixed Table, Built for Broaching, Friction Brake, Bench Mount: $?. Optional Pedestal: $?.
Model 1-1/2C: 3-ton capacity, Fixed Table, Designed for Large Diameter Pieces, Bench Mount: $?.
Model 1-3/4: 3-ton capacity, Fixed Table, Friction Brake, Special Side Mount: $?
Model 3A: 5-ton capacity, Fixed Table, Hand Operated Brake, Bench Mount: $?. Optional Pedestal: $?.
Model 4M: 5-ton capacity, Adjustable Table, Mandrel Catcher on Base, Hand Operated Brake, Large Floor Model: $?.

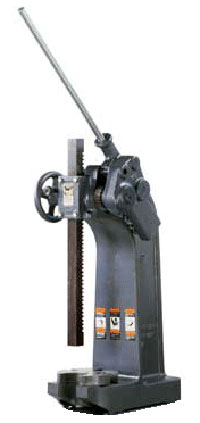

DAKE Compound Leverage ARBOR PRESSES - made in USA
Click to Request a written Quote for this machine
- Compound Leverage Mechanism means less effort for you.
- Sliding Pin changes press from compound to single leverage.
- Ratchet allows lever to be used in most convenient position.
- Handwheel advances ram to work quickly.
- Counterweight returns lever quickly after downstroke.
- Pedestals available on 1-1/2, 1-1/2B, and 3A models.
- Pedestal stands available on all bench models.
Model 2: 6-ton capacity, Fixed Table, Hand Operated Brake, Bench Mount: $?. Optional Pedestal: $?. extra
Model 2B: 6-ton capacity, Fixed Table, Large arbor for electrical and generator repair work, Hand Operated Brake, Bench Mount: $?. Optional Pedestal: $?.
Model 2-1/2: 6-ton capacity, Fixed Table, Great for Broaching, Hand Operated Brake, Bench Mount: $?. Optional Pedestal: $?.
Model 3: 12-ton capacity, Fixed Table, Hand Operated Brake, Bench Mount: $?. Optional Pedestal: $?.
Model 4: 12-ton capacity, Adjustable Table, Hand Operated Brake, Large Floor Model: $?.
Model 5: 15-ton capacity, 2 Swinging Tables, Hand Operated Brake, Large Floor Model: $?.

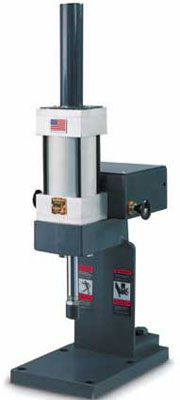

Dake Pneumatic Bench Presses - Made In USA
Click to Request a written Quote for this machine
- Non-rotating double acting ram eliminates the need for guide pins on most tooling
- Chrome-plated piston rod resists rust and ensures long life
- Threaded rod end permits nose piece and tooling to be easily attached and detached
- Easily adjusted ram speed, pressure, and stroke allow accurate control of ram movement
- Dual-palm push buttons must be engaged before the ram will move and cannot be mechanically by-passed
- Polyurethane rod wiper protects cylinders from dust and contaminants
- Air filter/regulator combination assembly ensures clean and continuous air flow to press
- Daylight can be easily adjusted
Model 1204: 400 pounds pressure at 90 psi, 2" travel, 5" throat, 9" x 6" work area, 5" inside height with nose piece. $?.
Model 1210: 1000 pounds pressure at 85 psi, 4" travel, 5" throat, 9" x 8" work area, 8" inside height with nose piece. $?.
Model 1220: 2000 pounds pressure at 100 psi, 4" travel, 5" throat, 9" x 8" work area, 8" inside height with nose: $?.
