BURR KING Belt Grinders for rapid metal sanding

American Machine Tools Company is accedited by the Better Business Bureau with an A+ rating! Click to verify.

We usually accept credit cards for up to $10,000.

These belt grinding and sanding machines run at super fast rpms to grind metal unbelievably fast and smooth. These high speed metal grinding machines may look like they are belt sanding but these machines run many times faster. Some models can be fitted with optional attachments to grind parts in multiple ways. Different models are available in vertical, horizontal and adjustable angle styles and will likely last a lifetime since they are quality made with pride in the USA. SFPM = Surface Feet Per Minute.

BURR KING 1272 Belt Sander Grinder

BURR KING 1272 Belt Sander Grinder

Model 1272 provides internal and radius grinding attachments as well as yoke attachments giving users a wide range of belt and wheel sizes.

Multi-Speed SFPM Yoke Assy. Weight HP Volt/Phase/Hz Price
680-6320 No 225 1.5 120/1/60 Request
680-6320 No 225 1.5 220/1/60 Request
680-6320 No 235 2 220/1/60 Request
680-6320 No 250 3 220/3/60* Request
680-6320 No 250 3 440/3/60* Request
680-6320 Yes 265 1.5 120/1/60 Request
680-6320 Yes 265 1.5 220/1/60 Request
680-6320 Yes 275 2 220/1/60 Request
680-6320 Yes 290 3 220/3/60 Request
680-6320 Yes 290 3 440/3/60 Request

*Includes magnetic starter (NEMA 12) and controls without power cord.

Model 1272 has 16 standard selectable speeds: 680, 900, 1100, 1130, 1440, 1690, 1580, 1800, 2260, 2710, 2530, 2820, 3610, 3950, 4510, 6320.

SFPM Pedestal is optional, not included.

Click to Request the model 1272 Quote and info packet

BURR KING 482 Three Wheel Belt Grinder

BURR KING 482 Three Wheel Belt Grinder

Burr King's family of three wheel grinders provides maximum versatility. Contact wheel, platen, work rest support, and loose belt grinding are precision controlled with positive belt tracking, quick belt change, and linear belt tension. Constructed of rugged cast aluminum and precision machined components, every Burr King grinder delivers unexcelled grinding performance and reliability.

Model 482 can be pedestal or bench mounted and uses a standard 48" belt up to 2" wide.

  • -Contact wheel, platen and workrest support grinding.
  • -Slack belt grinding.
  • -Adjustable belt tension.
  • -Positive belt tracking/patented design.
  • -Quick belt change.
  • -Large throat clearance for enhanced work point access.
  • -Precision machined cast aluminum frame.
  • -Accepts internal grinding attatchments (excluding Model 562).
  • -Accepts nylon, buffing, wire, fiber wheels.
  • -Compact footprint friendly to "cell" manufacturing.
  • -OSHA compliant, enclosed guarding.
Speed Fixed Speed Variable Weight HP Volt/Phase/Hz Price
6000 SFPM No 85 1 120/1/60 Request
6000 SFPM No 85 1 220/1/60 Request
6000 SFPM No 85 1 220/3/60* Request
6000 SFPM No 85 1 440/3/60* Request
No 600-6000 SFPM 100 1 120/1/50-60 Request
No 600-6000 SFPM 100 1 220/1/50-60 Request
No 600-6000 SFPM 105 1.5 220/3/50-60 Request
No 600-6000 SFPM 105 1.5 440/3/50-60 Request

*Includes magnetic starter (NEMA 12) and controls without power cord.

Pedestal is optional, not included.

Click to Request the model 482 Quote and info packet

BURR KING 562 Three Wheel Belt Grinder

BURR KING 562 Three Wheel Belt Grinder

Burr King's family of three wheel grinders provides maximum versatility. Contact wheel, platen, work rest support, and loose belt grinding are precision controlled with positive belt tracking, quick belt change, and linear belt tension.

Model 562 offers a 1 x 42 inch belt size. Constructed of rugged cast aluminum and precision machined components, every Burr King grinder delivers unexcelled grinding performance and reliability. Model 562 shown with optional dust scoop (DS-5). This machine can be pedestal or bench mounted and uses a standard 42" belt up to 1" wide.

  • -Contact wheel, platen and workrest support grinding.
  • -Slack belt grinding.
  • -Adjustable belt tension.
  • -Positive belt tracking/patented design.
  • -Quick belt change.
  • -Large throat clearance for enhanced work point access.
  • -Precision machined cast aluminum frame.
  • -Accepts internal grinding attatchments (excluding Model 562).
  • -Accepts nylon, buffing, wire, fiber wheels.
  • -Compact footprint friendly to "cell" manufacturing.
  • -OSHA compliant, enclosed guarding.
Speed Fixed Speed Variable Weight HP Volt/Phase/Hz Price
5300 SFPM No 70 3/4 120/1/60 Request
5300 SFPM No 70 3/4 220/1/60 Request
5300 SFPM No 85 3/4 220/3/60* Request
5300 SFPM No 85 3/4 440/3/60* Request
No 530-5300 SFPM 85 3/4 120/1/50-60 Request
No 530-5300 SFPM 85 3/4 220/1/50-60 Request
No 530-5300 SFPM 100 1 220/3/50-60 Request
No 530-5300 SFPM 100 1 440/3/50-60 Request

*Includes magnetic starter (NEMA 12) and controls without power cord.

Pedestal is optional, not included.

Click to Request the model 562 Quote and info packet

BURR KING 720 Probe Belt Grinder

BURR KING 720 Probe Belt Grinder

The Model 720 presents a unique up front, two wheel, rear drive configuration that quickly accepts contact wheel finishing diameters from 3/8 inches to 3 inches in diameter. The Model 720 is equipped with a reliable and fully adjustable air pressure, belt tension control system. Using 1/2 inch to 2 inch belt width. The Model 720 72 inch belt track delivers long abrasive life coupled with excellent utility. Available in single or vari speed.

Model 720 Probe Belt Grinder:
  • -Reaches into deep cavities
  • -Finishes the I.D. of tubing
  • -Work exotic materials with multiple belt speeds from 500 to 5500 SFPM
  • -Great for turbine blades
  • -Delicately blend finishes
  • -Rough away material
  • -Finish inside diameters.
Standard Features Include:
  • -72" belt track
  • -1/2 to 2 inch belt widths
  • -1 inch diameter x 2 inch wide contact wheel
  • -5500 SFPM
  • -1.5 horse power in popular voltage and phase options
  • -Air tension control abrasive belt
  • -Pressure regulation and adjustment
  • -Accepts all Burr King 1400 series nose attachments (choice of one with machine)
  • -Heavy fabricated steel frame
  • -Out front grinding point with up to 14 inches probe capability (diameter dependent)
  • -Integrated dust collection shroud with 3 inch outlet
  • -Belt guard with belt access door
  • -Bench or pedestal mount
  • -Foot print approximately 20W x 36D x 36H.
Speed Fixed Speed Variable HP Volt/Phase/Hz SKU Price
No 550-5500 SFPM 1.5 120/1/50-60 16110 Request
No 550-5500 SFPM 1.5 220/1/50-60 16210 Request
5500 SFPM No 1.5 120/1/60 16300 Request
5500 SFPM No 1.5 220/1/60 16400 Request
5500 SFPM No 1.5 220/3/60 16503 Request
5500 SFPM No 1.5 440/3/60 16603 Request
Optional Features Include:
  • -Variable speed from 500 to 5200 in 1 phase and 3 phase options - Magnetic starters
  • -2 horse power motors
  • -Mounting pedestal
  • -Various nose attachments with contact wheels from 3/8 to 3 inches in diameter with 1/2, 1, and 2 inch widths.

Click to Request the model 720 Quote and info packet

BURR KING Model 760 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder

BURR KING Model 760 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder

Burr King's family of three wheel grinders provides maximum versatility. Contact wheel, platen, work rest support, and loose belt grinding are precision controlled with positive belt tracking, quick belt change, and linear belt tension.

Constructed of rugged cast aluminum and precision machined components, every Burr King grinder delivers unexcelled grinding performance and reliability.

Model 760 is the largest example of our versatile three wheel belt grinders. Model 760 offers contact, backup platen, worktable and loose belt grinding at 8000 SFPM.

Model 760 Includes:
  • -Rotating parts covered eliminating parts entanglement, greater operator safety.
  • -Deeper horizontal and vertical throat clearance for larger and odd shaped parts.
  • -Improved dust extraction.
  • -New and improved door latching system.
  • -New pinch point guarding when back up platen is removed.
  • -New urethane covered idler wheels for longer life.
  • -New idler wheels are electrostatically conductive.
Belt Size Speed Fixed Speed Variable HP Volt/Phase/Hz SKU Price
1 1/2 x 60 8000 SFPM No 1.5 120/1/60 70100 Request
1 1/2 x 60 8000 SFPM No 1.5 220/1/60 70200 Request
1 1/2 x 60 8000 SFPM No 1.5 220/3/60* 70303 Request
1 1/2 x 60 8000 SFPM No 1.5 440/3/60* 70403 Request
1 1/2 x 60 8000 SFPM No 2 220/3/60* 70503 Request
1 1/2 x 60 8000 SFPM No 2 440/3/60* 70603 Request
1 1/2 x 60 8000 SFPM No 3 220/3/60* 70703 Request
1 1/2 x 60 8000 SFPM No 3 440/3/60* 70803 Request
1 1/2 x 60 4000 SFPM No 1.5 120/1/60 71100 Request
1 1/2 x 60 4000 SFPM No 1.5 220/1/60 71200 Request
1 1/2 x 60 4000 SFPM No 1.5 220/3/60* 71303 Request
1 1/2 x 60 4000 SFPM No 1.5 440/3/60* 71403 Request
1 1/2 x 60 4000 SFPM No 2 220/3/60* 71503 Request
1 1/2 x 60 4000 SFPM No 2 440/3/60* 71603 Request
1 1/2 x 60 4000 SFPM No 3 220/3/60* 71703 Request
1 1/2 x 60 4000 SFPM No 3 440/3/60* 71803 Request
1 1/2 x 60 No 8000 SFPM 1.5 120/1/50-60 72110 Request
1 1/2 x 60 No 8000 SFPM 1.5 220/1/50-60 72210 Request
1 1/2 x 60 No 8000 SFPM 2 220/1/50-60 73110 Request
1 1/2 x 60 No 8000 SFPM 2 220/3/50-60 74103 Request
1 1/2 x 60 No 8000 SFPM 2 440/3/50-60 74203 Request
2 x 60 8000 SFPM No 1.5 120/1/60 75100 Request
2 x 60 8000 SFPM No 1.5 220/1/60 75200 Request
2 x 60 8000 SFPM No 1.5 220/3/60* 75303 Request
2 x 60 8000 SFPM No 1.5 440/3/60* 75403 Request
2 x 60 8000 SFPM No 2 220/3/60* 75503 Request
2 x 60 8000 SFPM No 2 440/3/60* 75603 Request
2 x 60 8000 SFPM No 3 220/3/60* 75703 Request
2 x 60 8000 SFPM No 3 440/3/60* 75803 Request
2 x 60 4000 SFPM No 1.5 120/1/60 76100 Request
2 x 60 4000 SFPM No 1.5 220/1/60 76200 Request
2 x 60 4000 SFPM No 1.5 220/3/60* 76303 Request
2 x 60 4000 SFPM No 1.5 440/3/60* 76403 Request
2 x 60 4000 SFPM No 2 220/3/60* 76503 Request
2 x 60 4000 SFPM No 2 440/3/60* 76603 Request
2 x 60 4000 SFPM No 3 220/3/60* 76703 Request
2 x 60 4000 SFPM No 3 440/3/60* 76803 Request
2 x 60 No 8000 SFPM 1.5 120/1/50-60 77110 Request
2 x 60 No 8000 SFPM 1.5 220/1/50-60 77210 Request
2 x 60 No 8000 SFPM 2 220/1/50-60 78110 Request
2 x 60 No 8000 SFPM 2 220/3/50-60 79103 Request
2 x 60 No 8000 SFPM 2 440/3/50-60 79203 Request

Shown with optional Variable Speed. Pedestal is optional, not included.

*Includes magnetic starter (NEMA 12) and controls without power cord.

Click to Request the model 760 Quote and info packet

BURR KING Model 960-250 2.5 x 60 Two Wheel Belt Grinder

BURR KING Model 960-250 2.5 x 60 Two Wheel Belt Grinder

Burr King's family of two wheel grinders provides vigorous contact wheel, workrest, and platen grinding in a frame design that pivots to ideal work positions. These machines are frequently selected as tool post grinders, roll grinders, and for fixturing into centerless grinding applications.

Available in easily adjusted variable speed and aggressive single speed.

Model 960-250 has a standard 60" belt up to 2-1/2" wide and can be bench or pedestal mounted.

Model 960-250 includes:
  • -Contact wheel, platen and workrest support grinding.
  • -Adjustable belt tension.
  • -Positive belt tracking/patented design.
  • -Quick belt change.
  • -Upto 8000 SFPM belt speed standard
  • -Compact footprint friendly to "cell" manufacturing.
  • -Adapts for "tool post" or "on center" grinding.
  • -Adapts for robot mounts.
  • -Variable speed 120/220-1 PH, and 220/440-3 PH options.
  • -Precision machined cast aluminum frame
  • -OSHA compliant, enclosed guarding.
Speed Fixed Speed Variable HP Volt/Phase/Hz SKU Price
8000 SFPM No 1.5 120/1/60 90100 Request
8000 SFPM No 1.5 220/1/60 90200 Request
8000 No 1.5 220/3/60* 90303 Request
8000 No 1.5 440/3/60* 90403 Request
8000 No 2 220/3/60* 90503 Request
8000 No 2 440/3/60* 90603 Request
8000 No 3 220/3/60* 90703 Request
8000 No 3 440/3/60* 90803 Request
4000 No 1.5 120/1/60 91100 Request
4000 No 1.5 220/1/60 91200 Request
4000 No 1.5 220/3/60* 91303 Request
4000 No 1.5 440/3/60* 91403 Request
4000 SFPM No 2 220/3/60* 91503 Request
4000 SFPM No 2 440/3/60* 91603 Request
4000 SFPM No 3 220/3/60* 91703 Request
4000 No 3 440/3/60* 91803 Request
No 800-8000 SFPM 1.5 120/1/50-60 92110 Request
No 800-8000 SFPM 1.5 220/1/50-60 92210 Request
No 800-8000 SFPM 2 220/1/50-60 93110 Request
No 800-8000 SFPM 2 220/1/50-60 94103 Request
No 800-8000 SFPM 2 440/3/50-60 94203 Request

Pedestal is optional, not included.

*Includes magnetic starter (NEMA 12) and controls without power cord.

Click to Request the model 960-250 Quote and info packet

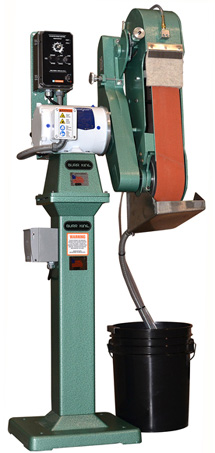

BURR KING Model 960-251 2.5 x 60 Two Wheel Wet Belt Grinder

BURR KING Model 960-251 2.5 x 60 Two Wheel Wet Belt Grinder

Ideal for lapidary, glass, and other finishing applications optimized by diamond abrasives.

With diamond belts and the model 960-251, you will experience up to 100 times the life of expectancy of silicon carbide abrasives while attaining vastly superior results.

Standard 60" belt 2 1/2" wide.

Speed Fixed Speed Variable HP Volts/Phase/Hz SKU Price
5000 SFPM No 1 120/1/60 31010 Request
5000 SFPM No 1 220/1/60 31020 Request
No 500-5300 SFPM 1 120/1/50-60 31030 Request
No 500-5300 SFPM 1 220/1/50-60 31040 Request

Also available is 4000 FilterPAK, stainless steel tank with filter

Pedestal is included.

Click to Request the model 960-251 Quote and info

Model 960-272 2 x 72 Two Wheel Belt Grinder

Model 960-272 2 x 72 Two Wheel Belt Grinder

Burr King's family of two wheel grinders provides vigorous contact wheel, workrest, and platen grinding in a frame design that pivots to ideal work positions.

  • - Grind, polish, buff with one machine!.
  • - Hollow grind, flat grind, contour, slack belt, vertical or horizontal platens.
  • - Fixed and Variable Speeds, smooth running.
  • - Small wheel attachment.
  • - Serrated contact wheels for rapid stock removal.
  • - New Larger workrest (Standard).
  • - 944 Optional Vertical Attachment.
  • - 965 Small Wheel Attachment for 2" wide belts.
  • - Available 8" or 10" Contact wheel

Turn your Model 960-272 into a finishing center. Run buffs, woven and convolute polishing wheels by using versatile adapters.

Available in easily adjusted variable speed and aggressive single speed, 2" x 72." Model 960-272 can be bench or pedestal mounted.

  • - Contact wheel, platen and work rest support grinding.
  • - Adjustable belt tension.
  • - Positive belt tracking.
  • - Quick belt change.
  • - Up to 7000 SFPM belt speed.
  • - Variable speed 120/220-1 PH.
  • - Precision machined cast aluminum frame.
  • - Cord & Switch Included.
  • - Belt Guard.
Speed Fixed Speed Variable 8" Contact Wheel 10" Contact Wheel HP Volt/Phase/Hz SKU Price
5400 SFPM No No Yes 1 120/1/60 98110 Request
5400 SFPM No No Yes 1 220/1/60 98220 Request
5400 SFPM No No Yes 1.5 120/1/60 98330 Request
5400 SFPM No No Yes 1.5 220/1/60 98440 Request
5400 SFPM No No Yes 2 220/1/60 98550 Request
No 700-7000 SFPM No Yes 1 120/1/50-60 98720 Request
No 700-7000 SFPM No Yes 1.5 120/1/50-60 98730 Request
No 700-7000 SFPM No Yes 1 220/1/50-60 98740 Request
No 700-7000 SFPM No Yes 1.5 220/1/50-60 98750 Request
4400 SFPM No Yes No 1 120/1/60 99110 Request
4400 SFPM No Yes No 1 220/1/60 99220 Request
4400 SFPM No Yes No 1.5 120/1/60 99330 Request
4400 SFPM No Yes No 1.5 220/1/60 99440 Request
4400 SFPM No Yes No 2 220/1/60 99550 Request
No 620-6200 SFPM Yes No 1 120/1/50-60 99720 Request
No 620-6200 SFPM Yes No 1.5 120/1/50-60 99730 Request
No 620-6200 SFPM Yes No 1 220/1/50-60 99820 Request
No 620-6200 SFPM Yes No 1.5 220/1/50-60 99830 Request

Pedestal is optional, not included.

*Includes magnetic starter (NEMA 12) and controls without power cord.

Click to Request the model 960-272 Quote and info

Click for our Machine Safety Webpage

Click for American Machine Tools Homepage

American Machine Tools Corp 5862 Northwest Hwy Chicago IL 60631 USA Phone: 773-334-5000 Fax: 773-442-0314

Click to email Us

Privacy Clause
Terms & Conditions Frequently Asked Questions
Website by HumCommerce.com Copyright © 2001-2024 American Machine Tools Co. All Rights Reserved
Information and prices on this website is subject to change without notice. Offers from American Machine Tools Corporation include include Terms and Conditions shown on our website. Liability is strictly limited to those warranties of fitness for purpose and safety as provided by the manufacturer. Products and Logos in this website are trademarks or registered trademarks of their respective companies or mark holders.
