Tool Grinder Machines:

American Machine Tools Company is accedited by the Better Business Bureau! Click to verify.

We accept credit cards

The Universal Cutter and Tool Grinder machine has a combination swiveling turntable and moveable offset slide to provide your shop with enough versatile capability to quickly set up and accurately grind convex and concave radii of varying sizes. Eliminate outsourcing by grinding your tools in house using one of our super high quality machines.

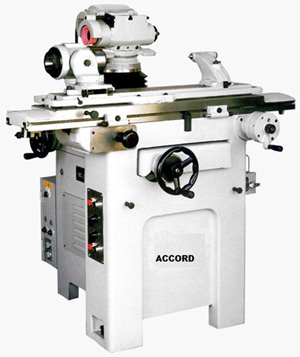

Tool Grinder model M40

Tool Grinder - Universal Cincinati type

Standard Features:

  • Universal tool and cutter grinder, Cincinnati type
  • Designed as a versatile tool sharpener and can also be used for light cylindrical, surface and internal grinding operations with some optional accessories.
  • The wheelhead can be tilted +/- 15 degrees, and swiveled 360 degrees in the horizontal plane. This allows the setting of rake and relief angles.
  • The wheelhead spindle is supported in two pairs of angular ball bearings, which are preloaded.
  • The spindle is lubricated for life.
  • The workhead can be positioned along the table and can be swiveled vertically and horizontally. It has a taper hole in each end of the spindle (one side is ASA50 and the other MT5)
  • The table can be swiveled +/- 60 degrees. This along with the wheelhead swiveling permits grinding long cutters and tools.
  • The table ways are hardened and ground.
  • Antifriction ball bearing assemblies allow easy and smooth positioning.
  • Fine feed knobs on the right and left side of the table allow fine to rapid feed range of the table. A crank allows fine feed control on the right side of the table.
  • The tailstock can be positioned longitudinally along the table. The center is retractable for easy workpiece loading between centers.
  • Table dogs are used for table positioning and cushioning
  • Fully centralized lubrication system for the longitudinal and cross ways, and cross feed screw and nut.
  • Optional grinding attachments are available to allow face mill, radius, helical, cylindrical, internal, surface, drill point, lathe and planer tool grinding.

Click to Request a formal quote that includes complete information about the M40 Grinder

Standard Equipmant:

  • Workhead
  • Leveling pads (3 pcs.)
  • Draw-in bolts for workhead and washer
  • Collet wrench
  • Left and Right hand tailstock
  • Wheel guard holder (long and short)
  • Belt for spindle drive (Poly-flex belt)
  • Grinding wheel sleeves (5) Reducing collet B & S or MT #5 x #2, 3 & 4 (3)
  • Sleeve extracting bar
  • 4" spindle extension
  • Ejector rod
  • 4" extension wheel sleeve & collar
  • Center gauge
  • Center for workhead spindle B & S or MT #2
  • Pin wrench
  • Plain tooth rest holder (with off set blade) (2)
  • T-wrench for grinding wheel sleeve
  • Washer for 1/8" grinding wheel
  • Grinding wheel (7 in 6 sizes: 6x3/4x1.25, two 6x1/2x1.25, 3.5x1.5x1.25, 4x1/16x1/2, 5x1.5x1.25, 3x1/2x1/2")
  • Wheel guards (4)
  • Diamond dresser holder
  • Touch -up paint
  • Tool cabinet
  • Micrometer adjustable tooth rest (w/ round top table)
  • Double end wrench
  • Extension & washers of slit-saw & side-mill cutters
  • Universal tooth rest plate & blade holder extension
  • Allen type wrench
  • Nut wrench (2)
  • Driver

Specifications:

  • Swing Over Table: 10"
  • Distance Between Center: 27 1/2"
  • Distance Between Tailstock & Workhead: 22 3/4"
  • Taper Hole In Workhead Spindle: ASA No.50 & M.T. No.5
  • Table T-Slot (Number & Size): One 0.565"
  • Table Working Surface: 5 5/16" x 37"
  • Grinding Wheel Spindle RPM: 2600, 3700, 6200 RPM
  • Grinding Wheel Spindle Motor: 1 HP
  • Table X Travel: 16"
  • Table Y Travel: 10"
  • Cross Movement of Saddle: 10"
  • Graduation for Table Swivel Movement: ±60°
  • Table Graduation on End, For Taper of: ±10°
  • Wheel Head Tilts: ±15°
  • Wheel Head Swivels: 360°
  • Wheel Spindle Center to Top of Table: Max 12"-Min 2"
  • Wheel Spindle Center to T-Slot Center: Max 16 1/2"- Min 6 1/2"
  • Voltage: Choose 220 or 440 Volts, 3 phase
  • Net Weight: 2,560 Lbs.
  • Machine size: 58" x 58" x 60"

Optional Accessories:

  • Dust Collector
  • Face Mill Grinding
  • Radius Grinding 0-1" (4" Max. Dia of Cutter)
  • Radius Grinding 0-2" (11 3/4" Max. Dia of Cutter)
  • Helical Grinder
  • Cylindrical Grinding W / 3Jaw Chuck
  • Internal Grinding
  • Work Head Indexing
  • Extended Grinding Wheel Spindle
  • Surface Grinding
  • Lathe And Planer Grinding
  • Spring Collet Set
  • Coolant System
  • Drill Point Grinding
  • Wet Grinding
  • Wheel Flange.

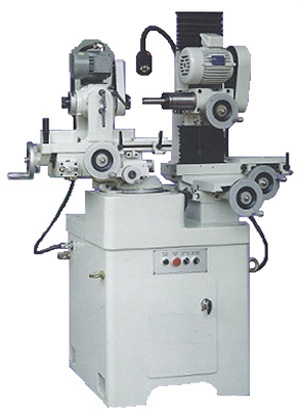

Tool Grinder Model MN2

Tool Grinder for complex cutter & tool grinding

Standard Features & Equipment

  • Cast Iron Base
  • Designed To Grind Complex Tools
  • Table And Work Head Controls Motorized
  • 18 Standard Tooling Items

CAPACITIES :

  • Swing over main slide: 12 inches
  • Collet work diameter: 0.12 min. to 1.25 max.
  • Lead generated by spiral lead mechanism: 1.81" min
  • Length between spindle nose and tail center: 6" max.
  • Grinding wheel diameter: 4" max

RANGE (Workhead):

  • Main slide travel: 5.75"
  • Offset slide travel: 5.25"
  • Workhead horizontal plane angular adjustment: 235°
  • Workhead vertical plane angular adjustment: ±40°

RANGE (Wheel head):

  • Longitudinal slide travel: 6"
  • Vertical slide travel: 9.50"
  • Cross slide travel: 7.50"

POWER Etc:

  • Workhead speed: 436 RPM
  • Workhead motor: 1/4 HP
  • Wheel head speed: 3600 RPM
  • Wheel head motor: 1/2 HP
  • Voltage: 220 volts 3 phase or 440 volts, 3 phase
  • Weight: 1525 Lbs
  • Machine Size: 60 x 67 inches

Click to Request a formal Quote that includes complete information about the MN2 Tool Grinder

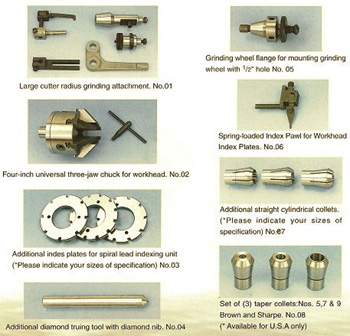

Optional Accesories:

  • Large Cutter Radius Grinding Attachment
  • Four Inch Universal 6-Jaw Chuck for workhead additional index
  • Plate for Spiral Lead Indexing Unit
  • Additional Diamond Trueing Tool W/ Diamond Nib
  • Flange to mount 1/2" grinding wheel
  • Spring Loaded Index Pawl For Workhead Index
  • Additional Straight Cylindrical Collet
  • Wheel Flange
Many options available for the M2 Cutter Grinder machine
Tool Grinder Model MN2

The diagram above shows how the swivelling turntable and moveable offset slides will give your shop versatility to quickly set up and accurately grind convex and concave radii

Milling cutter end milling on the M2 Tool Grinder machine

Milling Cutter End Grinding

Grinding outer diameter

Grinding Outer Diameter

Vertical milling with the M2 Tool Grinder machine

Vetical Milling

Centering device on the M2 Tool Grinder

Centering Device

Screw slot surface grinding on the M2 Tool Grinder

Screw Slot Surface Grinding

Formed milling cutter grinding

Milling Cutter Grinding

Screw angular grinding

Screw Angular Grinding

Side milling cutter grinding on the M2 Tool Grinder

Side Milling Cutter Grinding

Drill Bit grinding on the M2 Tool Grinder machine

Drill Bit Grinding

Arc grinding

Arc Grinding
