Pipe, Tube, Angle, Channel & Flat Bar Rolling Machines

American Machine Tools Company is accedited by tde Better Business Bureau! Click to verify.

We accept Cards for up to $25,000.

Large radius rolling of pipe, tube, angle, channel, flat bar, and T-shapes is usually done on a pyramid style 3 roll bender. When rolling pipe or tube, you will need the 3 rolls to match the contour of the tube to prevent the wall stress from flattening the tube. Onme die set can roll parts to different radii.

But if you want to roll your pipe/tube to a small radius that can be repeatably and accurately done, then you want a rotary mandrel draw bender machine. It uses a die set that matches the tube/pipe size and the desired exact radius. The outer die pulls the pipe (or tube) as it rotates around the inner mandrel.

The blue colored pyramid roll bender machines for rolling pieces with a large radius come with a combination set of segmented rolls that can be used in different configurations to fit the shapes you are working with. Optional rolls may be needed to productively roll some shapes and all round shapes on the pyramid roll benders. When rolling angle iron, it helps to use optional lateral angle guide rolls (expensive) to prevent twisting or you can try rolling 2 angles together that have been tack welded into a T-shape to compensate for possible twisting. Separate the 2 rolled angles when finished. But this method reduces the angle size capacity.

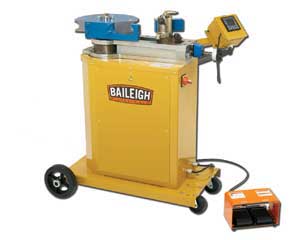

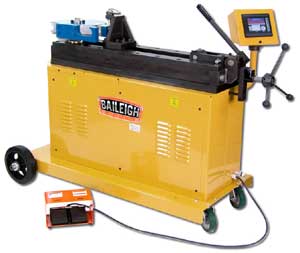

The yellow Baileigh rotary draw bender machines are made in USA. The blue Baileigh roll bender machines are made in Portugal. The blue GMC machines are made in Taiwan (not China).

Round Pipe and Round Tubing are not the same thing. Pipe is listed by the nominal (approximate) inside diameter but tubing is listed by the exact outer diameter. For some pipe bender machines you can also buy or make die sets to bend Square Tubing, Angle Iron, etc.

Outer Diameter of schedule 40 Pipe for Reference:

  • 1/4 inch pipe = 0.540 inch outer diameter
  • 3/8" pipe = 0.675" outer diameter
  • 1/2" pipe = 0.840 outer diameter
  • 3/4" pipe = 1.050 outer diameter
  • 1" pipe = 1.315 outer diameter
  • 1-1/4" pipe = 1.660 outer diameter
  • 1-1/2" pipe = 1.900 outer diameter
  • 2" pipe = 2.375 outer diameter
  • 2-1/2" pipe = 2.875 outer diameter
  • 3" pipe = 3.500 outer diameter
  • 4" pipe = 4.500 outer diameter
  • 5" pipe = 5.563 outer diameter
  • 6" pipe = 6.625 outer diameter

GMC Roll Bender Machines

GMC Roll Bender Machines for large radius rolling of flat bar, angle, channel, square tubing, etc.
2 Bottom Rolls are Driven // Rolls are Hardened // Cast Iron Frame // Includes a Set of Standard Rolls // Adjustable Side Guide Rolls // Overload Protection // Safety foot pedal control // Use Horizontally or Vertically.
Options available: * Rolls for round shapes. * Nylon rolls to prevent from marking up your parts.

PRB-30HV: $3850

GMC Pyramid Roll Bender Machine model PRB-30HV

Click to request more info.

  • Model: PRB-30HV: $3850.
  • (Top half can tilt for horizontal use)
  • Diameter of rollers: 1.12"
  • Rolling speed: 9 rpm
  • Motor: 1 HP, 110 Volts
  • Dimensions: 47 x 30 x 48"
  • Weight: 620 Lbs

PRB-55: $5850.

GMC Pyramid Roll Bender Machine model PRB-30HV

Click to request this info

  • Model: PRB-55: $5850.
  • Diameter of rollers: 2"
  • Roller speed: 13 rpm
  • Motor: 3 HP, 220 Volts,1 phase
  • Dimensions: 40 x 35 x 65"
  • Weight: 1050 Lbs
  • Optional hydraulic top roll & DRO

PRB-65: $12850.

Picture of GMC Pipe and Tube Roll Bender Machine model PRB-65

Click to request more info

  • Model: PRB-65: $12850.
  • with push button hydraulic powered top roll positioning and digital readout.
  • Diameter of rollers: 1.12"
  • Roller speed: 10 rpm
  • Motor: 3 HP, 220 Volts,3 phase
  • Dimensions: 50 x 45 x 71 inches
  • Weight: 2110 Lbs.

BAILEIGH

Roll Bender Machines for large radius rolling of Pipe, Tube, Angle, Channel, flat bar, etc.

  • Ratcheting top roll adjustment
  • Cast frame
  • Shafts are hardened steel
  • Rolls are hardened and ground steel.
  • Hardened Rolls for standard flat profiles included.
  • Rolls for round shapes are optional.
  • Made in Europe (not Turkey).
  • Bottom 2 rolls are powered by electric motor controlled by forward & reverse foot pedals.
  • Excellent for large radius bending.
Photo of Baileigh RM40 Roll Bending for pipe, tubing, angle, flat bar, etc.

Click to request this Quote

Plate bending roll photo

Click to request this Quote

Pyramid Rolls RM40
(just the top half of this machine tilts
for horizontal use)
RM55
(push button hydraulic adjustment with
digital readout is optional)
Description: Foot pedal turns 2 lower rolls forward and reverse.
Manual vertical adjustment of top roll.
Use horizontal or vertical.
Foot pedal turns 2 lower rolls forward and reverse.
Manual vertical adjustment of top roll.
Use horizontal or vertical. Also available with
push button hydraulic top roll position.
Shaft Diameter 1.25" 1.968"
Upper Roll Diameter 5.83" 5.83"
Lower Roll Diameters 4.64" 5.83"
Shaft Speed variable 10 to 21 rpm variable speed 13 to 27 rpm
CAPABILITIES Made in Europe Made in Europe
Flat Bar Hard Way 2.0" x 3/8" @ 8" Radius Min. 2-1/4" x 3/8" @ 16" Radius Min
2" x 1/2" @ 16" Radius Min.
Flat Bar Easy Way 2" x 3/8" @ 10" Radius Min 4" x 1/2" @ 15" Radius Min.
Solid Round 1.75" @ 10" Radius Min. 1.25" @ 24" Radius Min.
Solid Square 1.25" @ 10" Radius Min. 1.25" @ 24" Radius Min.
Angle Iron Leg In 1.5" x 1.5"x 3/16" @ 10" Radius Min./
1 x 1 x 3/16
2" x 2" x 1/4" @ 24" Radius Min.
Angle Iron Leg Out 1.5" x 1.5" x 3/16" @ 10" Radius Min. 2" x 2" x 1/4" @ 24" Radius Min.
Tubing Round 2" x 14 ga. @ 20" Radius Min. 2.25" x .078" @ 24" Radius Min
Tubing Square 1.5" x 1.5" x 14 ga @ 20" Radius Min 2" x 2" x .12" @ 24" Radius Min.
Schedule 40 Pipe 1" @ 14" Radius Min 1-1/2" @ 20" Radius Min.
Channel 2" 2"
Electrics 2HP, 220 volts, 1 phase 220 volts, 1 phase
Weight 560 Lbs 925 Lbs

BAILEIGH Roll Benders

for large radius rolling of Pipe, Tube, Angle, Channel, flat bar, etc.:
  • All 3 rolls are powered by forward/reverse foot pedals
  • Push button up-down positioning of top roll with Digital ReadOut
  • Steel-Welded Construction
  • Hardened alloy steel shafts
  • Hardened Rolls for standard flat profiles included.
  • Top Roll Moved Hydraulically via push buttons
  • Machine works horizontally or vertically
  • Standard flat rolls included
  • Guide Rollers
  • Mobile Control Console
  • Brake motor equipped
  • Made in Europe (not Turkey)

Optional Accessories:

  • Rolls for Pipe/Tube/Profiles/ High volume Angle Bending
  • Special Lateral Angle Guides
Image of Baieligh 3 roll shape bender

Click to request this Quote

Baileigh RH55 Roll Bending Machine for pipe, tubing, angle, flat bar, etc

Click to request this Quote

Pyramid Rolls RH45
(just the top half of this machine tilts
for horizontal use)
RH55
(push button hydraulic adjustment with
digital readout is optional)
Shaft Diameter 1.77" 2.165"
Roll Diameter 6.37" 6.69"
Shaft Speed 12 rpm 11 rpm
CAPABILITIES
Flat Bar Hard Way 3 x 3/8" @ 14" Radius Min. 4" x 3/8" @ 16" Radius Min.
Flat Bar Easy Way 4" x 3/4" @ 14" Radius Min. 4.75" x 3/4" @ 16" Radius Min.
Angle Iron Leg Out 2 x 2 x 1/4" @ 14" Radius Min 3" x 3" x 3/16" @ 16" Radius Min.
Angle Iron Leg In 2" x 2" x 1/4" @ 14" Radius Min. 3" x 3" x 3/16" @ 16" Radius Min.
Tubing Round 2-3/4" x 14 ga. @ 30" Radius 3" x 16 ga. @ 32" Radius Min.
Tubing Square 2" x 3/32 @ 26" Radius Min. 2-3/8" x 1/8 @ 51" Radius Min.
Schedule 40 Pipe 2" @ 24" Radius Min. 2.5" @ 29" Radius Min.
Channel 4" @ 16" Radius Min 4-1/2" @ 17" Radius Min
Electrics 220 volts, 1 phase, 3 HP 220 volts, 3 phase, 5.25 HP
Weight 1200 Lbs 1630 Lbs.
Machine size (l x w x h) 48" x 31" x 57" 51" x 35" x 62"

For frequent users, the hydraulic RH45, RH55 and RH85 machines adjust the bending radius via push buttons and they have a digital readout showing the up-down position of the bending roll to help repeat your work. On the RH85, RH120 and RH150, both bottom rolls move up and down instead of the top roll, so there are 2 digital readouts. To prevent slippage, all 3 rolls are driven on the RH45 thru RH150.

BAILEIGH RH85 PYRAMID ROLL BENDING MACHINE

Picture of Baileigh RH85 Pyramid Rolls

RH-85

Click to request this Quote

BAILEIGH RH85 PYRAMID ROLL BENDING MACHINE for large radius rolling of Pipe, Tube, Angle, Channel, flat bar, etc:

  • All 3 Rolls are Powered
  • Steel Frame Construction
  • Standard Combo Rolls for flat shapes included
  • Alloy steel Rolls & Shafts
  • Rolls are Hardened and Ground
  • Horizontal or Vertical Working Positions
  • Brake Motor equipped
  • Mobile Control Panel
  • 3-Axis Mechanical Lateral Angle Guide Rolls
  • Digital Read-Outs showing up-down movement of both lower rolls
  • Options: Pipe, Tube and Profile Bending Rolls

Capacities:

  • Mild Steel Max. Size OD/Wall Min. Dia.
  • Flat Bar (Hard Way): 3" x 1/2" @ 27.55" radius
  • Flat Bar (Easy Way): 5" x 1" @ 23.62" radius
  • Solid Square Rod: 1 3/4" @ 19.68" radius
  • Solid Round Rod: 2" @ 19.68" radius
  • Round Tube: 4" x .09 wall @ 47.24" radius
  • Pipe: 3" Sched 10 @ 27.55" radius
  • Rect Tube: 3 x 1" x 1/8 wall @ 31.49" radius
  • Square Tube: 2 3/4" x 1/8 wall @ 51.18" radius
  • Angle Iron (Leg Out): 3 x 3" x 5/16 @31.49" radius
  • Angle Iron (Leg In): 2 3/4 x 2 3/4 x 1/8 @27.55"
  • T-Bar (Leg Out): 2 3/4 x 5/16 @ 31.9" radius
  • T-Bar (Leg In): 3 x 5/16 @ 31.49" radius
  • Channel (Legs Out): 4 3/4" x 2" @ 23.62" radius
  • Channel (Legs In): 4" x 2" @ 19.68" radius
  • I Beam (Hard Way): 4 3/4" x 2 1/4" @ 23.62" rad.

SPECIFICATIONS:

  • Shaft Diameters: 2.75"
  • Roll Diameters: 9.64"
  • Shaft Speeds: 8 rpm
  • Hardened Rolls for standard profiles included
  • Hydraulic adjustment of bottom rolls up or down - independently
  • Electronics: 4 HP, 220 Volts,3 phase, 60Hz
  • Weight: 3,300 lbs.
  • Dimensions (l x w x h): 56" x 38" x 52"

BAILEIGH RH120 PYRAMID ROLL BENDING MACHINE

Picture of Baileigh RH85 Pyramid Rolls

RH-120

  • Roll adjustment is push button hydraulic
  • Shaft diameter: 3.937"
  • Roll diameters Upper & Lower: 12.40"
  • Speeds: (2) 5 rpm, 4 rpm
  • Motor: 15 HP, 220 volts, 3 phase
  • Shipping dimensions (L/W/H): 63" / 58" / 71" Shipping weight: 4,975 Lbs

Click to request this Quote

RH120 PYRAMID ROLL BENDING MACHINE for large radius rolling of Pipe, Tube, Angle, Channel, flat bar, etc:

  • All 3 Rolls are Power driven
  • Steel Frame Construction
  • Standard Combo Rolls for flat shapes included
  • Alloy steel Rolls and Shafts hardened & ground
  • Horizontal or Vertical Working Positions
  • Brake Motor equipped
  • Mobile Control Panel
  • 3-Axis Mechanical Lateral Angle Guide Rolls
  • Digital Read-Outs show up-down movement of both lower rolls!

Options:

Pipe,Tube and Profile Bending Rolls

Capacities:

  • Pipe: 4.5" schedule 40 @ 73" diameter
  • Round tube: 5.5" x .120" thick wall @ 118" diameter
  • Square tube: 4" x .196" thick wall@ 118" diameter
  • Angle iron: 4 x 4" x 3/8" @ 63" diameter
  • Solid square: 2.375" @ 40" diameter
  • Solid round: 2.75" @ 32" diameter
  • Flat bar - Easy way: 7.87" x 1.37" thick @ 40" dia.
  • Flat bar - Hard way: 4" x 1" @ 63" diameterdia.

BAILEIGH RH150 PYRAMID ROLL BENDING MACHINE -

Image of Baileigh RH150 Double Pinch Type Hydraulic Powered Rolling Machine

RH-150

  • Roll adjustment is push button hydraulic
  • Shaft diameter: 4.724"
  • Roll diameters Upper & Lower: 15.354"
  • Speeds: 3.25 rpm
  • Motor: 20 HP, 220 volts, 3 phase
  • Shipping dimensions (L/W/H): 79" / 59" / 80"
  • Shipping weight: 10,400 Lbs

Click to request this Quote

Our biggest for large radius rolling of Pipe, Tube, Angle, Channel, flat bar, etc:

  • All 3 Rolls are Power driven
  • Steel Frame Construction
  • Standard Combo Rolls for flat shapes included
  • Alloy steel Rolls and Shafts hardened & ground
  • Horizontal or Vertical Working Positions
  • Brake Motor equipped
  • Mobile Control Panel
  • 3-Axis Mechanical Lateral Angle Guide Rolls
  • Digital Read-Outs show up-down movement of both lower rolls!

Options:

Pipe, Tube and Profile Bending Rolls

Capacities:

  • Pipe: 5.5" schedule 40 @ 73" diameter
  • Round tube: 6.25" x .120" thick wall @ 118" dia.
  • Square tube: 4" x .196" thick wall@ 118" diameter
  • Angle iron: 4-1/2 x 4-1/2" x 1/2" @ 60" diameter
  • Solid square: 3" @ 32" diameter
  • Solid round: 3.38" @ 36" diameter
  • Flat bar - Easy way: 7.87" x 2" thick @ 40" dia.
  • Flat bar - Hard way: 5.5" x 1" @ 118" diameter

Small Radius Pipe & Tube Bending:

Rotary Draw Benders have the advantage of being able to form a smaller radius than 3 roll pyramid type machines (show at the top of this webpage). Though both types of machines require different dies each size of pipe or tube, draw type machines require a different die set for each radius you are trying to form. 3 roll pyramid type machines can form many different radii as long as each radius is large but require more skill to repeat the same radius, which is why rotary draw type madrel style machines are great if you have to form multiple parts of the same radius.

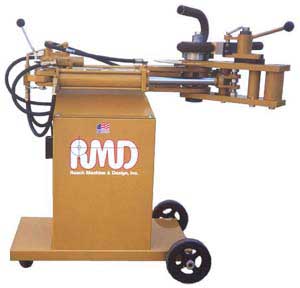

Die sets are interchangeable on all RMD benders. All die sets are color coded for easy identification (green for pipe, blue for tube, and gray for square). Bend Material: Round or square tubing, pipe, flat stock, angle iron, or solid rod. Custom dies available Fast change over of dies without tools. Note that the dies for these machines are selected to fit the tube or pipe size AND the size of the desired Center Line Radius.

Angle Finder Bend Degree Indicator:

Indicator accurately detects where plane of bend is within the 360 degree rotation. Fits from 1" OD to 3" OD. $199. with any machine purchase

EDWARDS 10 Ton Pipe/Tube Bender :

$3475. Edwards+Pipe-Tube+Bender

Head can pivot for horizontal use.

Click to see the huge list of Die Sets available

Click to Request our quote for this machine

Made in USA. Call 773-334-5000 to order this machine.

  • Operates Horizontal or Vertically
  • 180 Degree Bend Capacity
  • Easy To Use Hand Controls
  • Auto Stop Feature For Repeatable Bends
  • Heavy Duty Rolling and Locking Stand
  • Quick Disconnect Hoses
  • Heavy Duly All Steel Construction
  • 2" (10) Schedule 40 Pipe Capacity
  • 2-1/2" (00) .095" Tube Capacity
  • 2-1/4" .083" Chromoly Capacity
  • Pipe Die Sets Sold Separately - click to see the list
  • Stroke: 14"
  • Electric Motor Std: 5 HP, 3 Phase, 20B/240Volts, 14 amp
  • Electric Motor Options: 440/480 V, 575V, 3 phase, 7 amp; or 1 Phase, 220 Volts, 26 amps
  • Hydraulic Pump: 3-1/2 gpm-single stage@3000 psi max.

RDB-100 Manual Ratcheting Tube and Pipe Bender:

$1995. Image of manual ratcheting pipe bender

Call 773-334-5000 to order this machine. Mon - Fri 9 - 5

Capacity is up to 1" schedule 40 Pipe, 1" square tubing, 1-1/2" Chromolly (up to .083 wall), up to 1-3/4" tube (.095 wall mild steel).

Unique ratcheting mechanism allows you to bend easily by simply pulling a lever. Each pull will deliver 10 degrees of movement. No Pins to move or re-engaging to reach 206 degrees; this is accomplished by the anti-reverse stop latch. Bends pull out in seconds (no disassemble required). Maximum bend radius is 7" (depending on wall thickness, and material). Quick release counter die improves production time. Highly visible degree dial improves accuracy. Weight: 250 Lbs. Made in USA.

RDB-125 Hydraulic Rotary Draw Bender: Made in USA

RDB-125 Hydraulic powered pipe and tube bending machine

Click to Request our quote for this machine

Our lowest price powered pipe and tube bending machine.

Capacities:

  • Mild Steel or Aluminum schedule 40 Pipe: 2"
  • Stainless Steel schedule 40 Pipe: 1.5"
  • Mild Steel Round Tube: 2.5" x .125 wall
  • Aluminum Round Tube: 2.5" x .156 wall
  • Stainless Steel Round Tube: 2.25" x .125 wall
  • Chromolly Round Tube: 2" x .125 wall
  • Mild Steel Solid Rod: 1.25"
  • Mild Steel Square Tube: 2" x .125
  • Minimum OD: .25"
  • Maximum Center Line Radius: 7"
  • Minimum CLR .5"
  • Electrics: 110 Volts
  • Weight: 325 Lbs.

RDB-150 Hydraulic Rotary Draw Bender: Made in USA

RMD model 150-S hydraulic tube and pipe bending machine

Click to Request our quote for these machines

Capacities:

  • Mild Steel or Aluminum schedule 40 Pipe: 2"
  • Stainless Steel schedule 40 Pipe: 1.5"
  • Mild Steel Round Tube: 2.5" x .125 wall
  • Aluminum Round Tube: 2.5" x .156 wall
  • Stainless Steel Round Tube: 2.375" x .125 wall
  • Chromolly Round Tube: 2" x .125 wall
  • Mild Steel Solid Rod: 1.25"
  • Mild Steel Square Tube: 2" x .125
  • Minimum OD: .25"
  • Maximum Speed to 180 Degrees: 10 seconds
  • Maximum Center Line Radius: 7"
  • Minimum CLR .5"
  • Electrics: 120 Volts, 1 phase
  • Weight: 600 Lbs.
  • Optional: Angle-Autostop.

Extra Heavy Duty model RDB-175:

Same as model 150 but includes faster pump, foot pedal, angle-autostop, and larger maximum bend radius of 9".

RDB-250 Electric Programmable Bending Machine: Made in USA

RDB-250 Programmable Electric Pipe and Tube Bending Machine

Click to Request our quote for this machine

  • Mild Steel schedule 40 Pipe: 2.5"
  • Aluminum schedule 40 Pipe: 3"
  • Stainless Steel schedule 40 Pipe: 2"
  • Mild Steel Round Tube: 3" x.187 wall
  • Aluminum Round Tube: 3.5" x.250 wall
  • Stainless Steel Round Tube: 3" x .125 wall
  • Chromolly Round Tube: 2.5" x .125
  • Mild Steel Solid Rod: 1.5"
  • Mild Steel Square Tube: 3" x .125
  • Maximum Center Line Radius: 9", Min CLR: .5"
  • Electrics: 220 volts, 1 phase
  • Weight: 620 Lbs.
  • Optional: Programmable Memory

RDB-350-TS Electric Programmable Bender: Made in USA

RDB-350TS Programmable Electric Pipe and Tube Bending Machine

Click to Request our quote for this machine

This tubing bender has a maximum CLR is 24" which is our largest for these machines, Touch Screen Programming with memory for 175 programs.

  • Mild Steel schedule 40 Pipe: 2.5"
  • Aluminum schedule 40 Pipe: 3"
  • Stainless Steel schedule 40 Pipe: 2"
  • Mild Steel Round Tube: 3" x.187 wall
  • Aluminum Round Tube: 3.5" x.250 wall
  • Stainless Steel Round Tube: 3" x .125 wall
  • Chromolly Round Tube: 2.5" x .125
  • Mild Steel Solid Rod: 1.5"
  • Mild Steel Square Tube: 3" x .125
  • Maximum Center Line Radius: 24"
  • Minimum CLR: .5"
  • Electrics: 240 volts, 3 phase.
  • Weight: 1200 Lbs.

RDB- 500 Hydraulic Rotary Draw Bender: Made in USA

RDB-500 Hydraulic powered pipe and tube bending machine

Click to Request our quote for this machine

  • Mild Steel schedule 40 Pipe: 3"
  • Aluminum schedule 40 Pipe: 3.5"
  • Stainless Steel schedule 40 Pipe: 2.5"
  • Mild Steel Round Tube: 3" x .250 wall
  • Aluminum Round Tube: 3.5" x .187 wall Stainless Steel Round Tube: 3.5" x .187 wall
  • Chromolly Round Tube: 3.5" x .187 wall
  • Mild Steel Solid Rod: 2"
  • Mild Steel Square Tube: 3" x .250 wall
  • Maximum Speed to 180 Degrees 36 Seconds
  • Maximum Center Line Radius: 12", Minimum CLR .5"
  • Electrics: 220 volts, 1 phase, 30 amps.
  • Weight: 1800 Lbs.

One shot bending up to 206 degrees without stopping or ratcheting. Bends pull out in seconds (no disassembly required). Unique design coupled with powerful hydraulic pump reduces production time and improves efficiencies. Quick release counter die. Highly visible degree dial improves accuracy. Solid steel construction for durability. High quality industrial hydraulic system. Bend can be advanced after stopping machine, saves on set up costs (material savings). Bend round or square tubing, pipe, flat stock, angle iron, or solid rod. Autostop option for one bend programming. Made in USA.

45 Ton Hydraulic Horizontal Press

HPB-45

Click to Request our quote for this machine

Stroke in and stroke back is controlled with two hand wheel adjustments and also in a digital version that allows for programming several hundred complex functions. Table is made with tempered and ground steel, the carriage runs on double guides with dust scraper and forced lubrication. The mobile pin moves at two speeds and the stroke is adjusted via a high precision electrical limit switch. Built in lubrication system. Standard 90° bending die set included for flat bar (bends rebar too).

  • Max operating pressure: 45 Tons
  • Table Dimensions: 630 x 1100 mm
  • Table height: 955mm
  • Press bending capacity: 120 x 15mm
  • Stroke adjustment: 250mm
  • Tool Holding Pins Height: 120mm
  • Tool Holding Pins Diameter: 55mm
  • Distance between pins:120mm Min/370mm Max
  • Motor: 4 HP, 240V, 3 Phase, 60 Hz.
  • Horizontal Bending press dimensions:1200mm wide x 1150mm long x 1110mm high
  • Weight: 900 kg
