MILLING MACHINES

We sell Knee type Vertical and Horizontal Mills to the USA, Canada, and Latin America. Birmingham, GMC and JET options & upgrades are installed in USA. We also offer ACRA which comes pre-equipped with a digital readout and an X table power feed and includes free shipping to most of USA. Most of these milling machines are very similar to the famous Bridgeport Mill design.

American Machine Tools Company is accedited by tde Better Business Bureau! Click to verify. Se aceptan tarjetas de crèdito hasta por $10,000.

Metal Milling is the work of machining flat, curved, or irregular surfaces by feeding the workpiece against a rotating cutter containing a mutiple cutting edges. The milling machine consists basically of a motor driven spindle, which mounts and revolves the milling cutter, and a reciprocating adjustable worktable, which mounts and feeds the workpiece. Milling machines are basically classified as vertical or horizontal. These machines are also classified as knee-type and bed type. Knee-type milling machines have a vertically adjustable worktable resting on a saddle which is supported by a knee shaped massive casting that rides vertically on the milling machine column and can be clamped rigidly to the column in a position where the milling head and milling machine spindle are properly adjusted vertically for operation. Bed type mills have a fixed table that holds more weight. Vertical milling machines have a spindle located vertically, parallel to the column face, and mounted in a sliding head that can be fed up and down by hand or power. Modern vertical milling machines are designed so the entire head can also swivel to permit working on angular surfaces. We do have an attachment option to convert a Birmingham vertical mill into a horizontanal one.

Click for Instructions how to use a milling machine

Click for knee type vertical CNC Mills

Click for CNC Bed Mills

Many Options Available:

Acurite Digital Readout2 or 3 axis Digital Readout R8 Milling CuttersMilling Cutters R8 Collet SetR8 or NT40 Collet Sets Clamping KitClamping Kit Kurt Vise available with swivel baseVise Rotary TableRotary Table Power Draw BarPower Draw Bar Horizontal Milling Attachment for Vertical Milling MachineHorizontal Milling Device Table Power FeedTable Power Feed Dividing HeadDividing Head Coolant SystemCoolant System 6 inch Riser Block6 inch Riser Block

Birmingham Vertical Knee Milling Machines

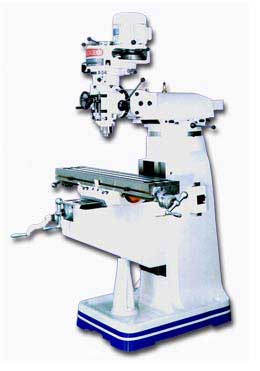

Birmingham BPS1642-49 vertical knee mills

BIRMINGHAM OPTIONS Available:

Installed Add-On package A (2 axis D.R.O., Align Servo Table Feed X-axis, R8 Precision Collet Set, 6" Anglock Vise, 52 piece Clamping Kit).

Other Options:

  • Inverter Drive
  • Slotting Attachment
  • Horizontal Milling Attachment
  • Rotary Table
  • Collet Sets
  • Drill Chuck
  • Raising Block
  • Flood Coolant System
  • Kurt or Angle Lock Vise
  • Clamping Kit
  • Halogen WorkLight
  • Bijur Auto Luber
  • Digital Readout (2 Axis OR 3 Axis)
  • Table Power Feed
  • Power Draw Bar Kit

BPS-1649C

9" x 49" Table, 16 speed

Click to Request this Quote

  • Hardened & Ground Work Table
  • Hardened & Ground On X. Y. Axis Slide Ways.
  • Ground Work Table Tee Slots.
  • Meehanite Casting (optional on BPS-1649C).
  • 16 Speed, 3HP, 220V, 3phase Motor (1phase motor available)
  • R-8 Spindle
  • Quill Travel: 5"
  • Optional Powerfeed and Digital Readout

BPV-3949C

9" x 49" Table, Variable Speed

Click to Request this Quote

  • Hardened & Ground Work Table
  • Hardened & Ground On X. Y. Axis Slide Ways.
  • Ground Work Table Tee Slots.
  • Meehanite Casting (optional on BPV-3949C).
  • Variable Speed, 3HP, 220 or 440V, 3phase, Motor(1phase motor available).
  • R-8 Spindle
  • Quill Travel: 5"
  • Optional Powerfeed and Digital Readout

BPS-1054C 10" x 54" Table

Click to Request this Quote

16 Speed, 3HP, 220V, 3phase Motor (1phase motor available)

BPV-1054C 10" x 54" Table

Click to Request this Quote

  • Variable Speed, 3HP, 220 or 440V, 3phase, Motor(1phase motor available).--------------------------------
  • Big Beafy machine for heavier jobs
  • Hardened & Ground Work Table.
  • Hardened & Ground On X. Y. Axis Slide Ways.
  • Ground Work Table Tee Slots.
  • R-8 Spindle
  • Quill Travel: 5"
  • Optional Meehanite Casting with turcite coated X-ways.
  • Optional Powerfeed and Digital Readout

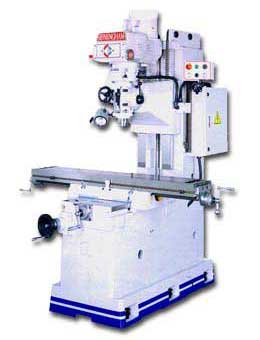

Birmingham BPV-B2V Bed Type Mill

Image of Birmingham BPV-B2V Bed Type Milling Machine

10" x 54" Table

Click to Request this Quote

  • 5HP Heavy Duty Variable Speed Head.
  • Z Axis AC Motor Rapid Up/Down.
  • Hardened & Ground Work Table (10" x 54").
  • Registered Meehanite Casting.
  • Wear Resistant Turcite "B" On X & Y Saddle Ways.
  • Square Ways on Y & Z Slideways.
  • Ground Work Table Tee Slots.
  • Variable Speed, 5HP, 220V/440V 3Ø., Motor
  • Choose Spindle: R8, ISO 30, or ISO NT40.
  • Quill Travel 5"
  • Auto Lube System.
  • Coolant System.
  • Splash Tray.
  • Low Voltage Halogen Worklight.
  • Control Panel.
  • Optional Powerfeed and Digital Readout.

GMC model GMM-949 Knee Mill

GMC 9 x 49 Bridgeport style milling machine shown with optional digital readout and X power feed.

New color is white. Photo shows optional Digital ReadOut and Power Feed on X-axis.

  • Table load capacity: 650 Lbs
  • Table X-axis travel: 36"
  • Table Y-axis travel: 12"
  • Table knee Z-axis travel: 16"
  • Spindle travel: 5"
  • Spindle diameter: 3-3/8"
  • Spindle to table - max: 18"
  • Spindle to column: 7" min, 19" max
  • Head swivel: 90 degrees
  • Head tilt: 45 degrees
  • Ram swivel: 360 degrees
  • Weight:Step pulley - 2650 Lbs.Variable speed - 2350 Lbs
  • Size: 63" long x 57" wide x 83" high

Click to Request a formal Quote with literature for this Milling Machine

Standard Features

  • Available with variable speed or step pulley
  • Manufactured in China with mill head from Taiwan
  • Meehanite " Casting
  • Turcite Coating on X and Y table slide ways
  • 9" x 49" table size
  • ISO 9002 certified factory
  • Mechanical step pulley 16 speeds from 90 - 5600 rpm - or -
  • Mechanical variable spindle speeds from 68 - 4200 rpm - or -
  • Electronic variable spindle speeds from 70 - 5000 rpm
  • Heavy duty 3 HP motor, 220 volts, 3 phase
  • Heavy Duty high grade castings
  • Hardened & ground dovetail guideways
  • Hardened & ground table and Ground table T-slots
  • Precision ground ACME Leadscrews
  • Chromed ground quill ( spindle )
  • Tilting & rotating head
  • Manual or automatic quill feeds 0.0015 , 0.003, 0.006 per spindle revolution
  • One shot lube system
  • Front and rear rubber chip guards
  • Tool box kit and leveling pads
  • One year warranty for parts
  • Way covers
  • One draw bar
  • Standard R8 spindle

Optional Equipment Available

  • Electronic variable speed inverter drive
  • Digital Readout
  • Power air draw bar
  • Coolant system w/ pump, nozzles and hoses
  • Base coolant/chip drop pan
  • Power feed table X-axis, installation included
  • Power feed table Y-axis, installation included
  • Power feed for knee up/down, installation included
  • Riser Blocks
  • Halogen work light
  • Auto luber with alarm
  • Anglock swivel vise
  • 52 pcs clamping kit
  • 11 pcs R8 collets set
  • Phase converter for use with single phase.

GMC model GMM-1054 Knee Mill

GMC 10 x 54 inch Bridgeport style milling machine

New Color is white.

  • Table load capacity: 650 Lbs
  • Table X-axis travel: 36"
  • Table Y-axis travel: 16-1/2"
  • Table knee Z-axis travel: 16-1/2"
  • Spindle travel: 5"
  • Spindle diameter: 3-3/8"
  • Spindle to table - max: 17"
  • Spindle to column: 4" min, 27" max
  • Head swivel: 90 degrees
  • Head tilt: 45 degrees
  • Ram swivel: 360 degrees
  • Weight: 3750 Lbs.
  • Size: 79" long x 67" wide x 91" high

Click to Request a formal Quote with literature for this Milling Machine

Standard Features

  • Available with variable speed or step pulley
  • Manufactured in Taiwan, assembled in China
  • Meehanite Casting
  • Turcite Coating on X and Y table slide ways
  • 10" x 54" table size
  • ISO 9002 certified factory
  • Mechanical variable spindle speeds from 68 - 4200 rpm - or -
  • Electronic variable spindle speeds from 70 - 5000 rpm
  • Heavy duty 3 HP motor, 220 volts, 3 phase
  • Heavy Duty high grade castings
  • Hardened & ground dovetail guideways
  • Hardened & ground table and Ground table T-slots
  • Precision ground ACME Leadscrews
  • Chromed ground quill ( spindle )
  • Tilting & rotating head
  • Manual or automatic quill feeds 0.0015 , 0.003, 0.006 per spindle revolution
  • One shot lube system
  • Front and rear rubber chip guards
  • Tool box kit and leveling pads
  • One year warranty on parts
  • Way covers
  • One draw bar

Optional Equipment Available

  • Electronic variable speed inverter drive
  • Digital Readout
  • Power air draw bar
  • Coolant system w/ pump, nozzles and hoses
  • Base coolant/chip drop pan
  • Power feed table X-axis, installation included
  • Power feed table Y-axis, installation included
  • Power feed for knee up/down, installation included
  • Riser Blocks
  • Halogen work light
  • Auto luber with alarm
  • Anglock swivel vise
  • 52 pcs clamping kit
  • 11 pcs R8 collets set
  • Phase converter for use with single phase.

JET JTM Vertical Milling Machine

Image of Jet JTM Milling Machine

Optional Equipment Available

  • Electronic variable speed inverter drive
  • Digital Readout
  • Power air draw bar
  • Coolant system w/ pump, nozzles and hoses
  • Base coolant/chip drop pan
  • Power feed table X-axis, installation included
  • Power feed table Y-axis, installation included
  • Power feed for knee up/down, installation included
  • Riser Blocks
  • Halogen work light
  • Auto luber with alarm
  • Anglock swivel vise
  • 52 pcs clamping kit
  • 11 pcs R8 collets set
  • Phase converter for use with 1 phase electrics.

Photo of Jet JTM Milling Machine with optional Digital Readout and Power Feed on X axis of Table

Choose from 9" x 42" or 9" x 49" or 10" x 50" Table Choose from 1 phase or 3 phase Electrics

  • Meehanite casting
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Spindle head is internally cooled
  • Satin chrome finished dials
  • Heavy-duty splined motor drive
  • One-piece quill pinion and shaft
  • Three-stage power downfeed with automatic stop
  • Heavy-duty spindle brake
  • Precision hardened and ground ways
  • Precision ground table
  • Adjustable gibs throughout
  • Internal coolant tank built into base for optional coolant system
  • One-shot lubrication system
  • Way covers
  • Draw bar
  • Tool box with tools
  • Tolerance test sheet included
  • 2 Year warranty
  • Head Movement: 90° Right & Left, 45° Front & Back
  • Distance Spindle to Column: 19" (max), 4.5" (minimum)
  • Max Distance Spindle to Table: 17-1/2 inches
  • Quill Diameter: 3-3/8
  • Quill Down feed Rates: .0015/.003/.006 inches/rev.
  • Spindle Taper: R-8
  • Spindle Travel: 5
  • Spindle Speeds: 8 with 1 phase, 16 with 3 phase
  • T-Slots Size: 5/8
  • Travel of Knee: 14-1/2 inches

JET Mills with 9 x 42 inch Tables:

  • JET JTM-1: 2HP, 230 Volts, 3 phase Electrics
  • JET JTM-2: 2HP, 115/230 Volts, 1 phase Electrics
  • Travel of Ram: 13-3/8 inches
  • Table Cross Travel: 12-1/2 inches
  • Table Longitudinal Travel: 23-7/8 inches
  • Range of Spindle Speeds: 80 to 2720 rpm
  • Table Load Capacity: 550 Lbs.
  • Machine Weight: 2200 Lbs.

Click to Request a formal Quote for this machine

JET Mills with 9 x 49 inch Tables:

  • JET JTM-4VS-690182: 2HP, 115/230 Volts, 1 phase Elec.
  • JET JTM-4VS-690180: 2HP, 230 Volts, 3 phase Electrics
  • Range of Spindle Speeds: 60 to 4200 rpm
  • Travel of Ram: 13-3/8 inches
  • Table Cross Travel: 12-1/2 inches
  • Table Longitudinal Travel: 34 inches
  • Table Load Capacity: 660 Lbs.
  • Machine Weight: 2420 Lbs.

Click to Request a formal Quote for this machine

JET Mill with 10 x 50 inch Tables:

  • JET JTM-1050: 3HP, 230/460 Volts, 3 phase Electrics
  • Variable Spindle Speed: 70 to 3800 rpm
  • Travel of Ram: 20-1/2 inches
  • Table Cross Travel: 15-1/4 inches
  • Table Longitudinal Travel: 30 inches
  • Table Load Capacity: 720 Lbs.
  • Machine Weight: 2900 Lbs.

Click to Request a formal Quote for this machine

ACRA pre-equipped Milling Machine

Acra Milling Machine 9 x 49 with Digital Readout

TABLE POWER FEED not shown

Acra Milling Machine 10 x 54 with Digital Readout

  • FREE SHIPPING to 48 states of USA
  • DIGITAL READ OUT for X + Y axis, installed
  • TABLE POWER FEED on X axis, installed

Model BPV-2VC

Click to Request more information about this mill

  • 9" x 49" Table
  • Variable Speed: 60 - 4300 rpm
  • Electric Motor: 3HP, 220V or 440V, 3phase
  • 90 degree left and right head swivel with locks
  • 45 degree front and back head tilt
  • Full 360 degree ram turret swivel
  • Hardened & Ground X & Y Axis Slide Ways
  • Hardened & Ground Work Table
  • Ground Work Table Tee Slots
  • Longitudinal X travel: 35" (33" powerfeed)
  • Quill Travel: 5"
  • R-8 Spindle
  • Table capacity: 600 Lbs
  • Machine weight: 2500 Lbs
  • Call 1-773-334-5000 to ask questions or place order

Model BPV-3VC

Click to Request more information about this mill

  • 10" x 54" Table for heavy duty work
  • Variable Speed: 60 - 4300 rpm
  • Electric Motor: 3HP, 220V or 440V, 3phase
  • 90 degree left and right head swivel with locks
  • 45 degree front and back head tilt
  • Full 360 degree ram turret swivel
  • Hardened & Ground X & Y Axis Slide Ways
  • Hardened & Ground Work Table
  • Ground Work Table Tee Slots
  • Longitudinal X travel: 38" (35" powerfeed)
  • Quill Travel: 5"
  • R-8 Spindle
  • Table capacity: 800 Lbs
  • Machine weight: 3500 Lbs
  • Call 1-773-334-5000 to ask questions or place order

ACRA Combination Horizontal-Vertical Milling Machine:

$28,500.

Photo of Acra Horizontal Vertical Milling Machine from American Machine Tools Company

Click to Request a formal Quote with literature for this machine

  • Quality made in Taiwan not China
  • Castings made from genuine Meehanite
  • Box knee ways are hardened and ground
  • Box column ways
  • Double box-type Turcite coated saddle ways
  • Double table and knee locks
  • Spring loaded handwheels for safety
  • Precision hardened and ground table
  • All controls located on moveable control pendant
  • Designed for Accuracy, Longevity and Durability
  • Flood coolant system with splash pan
  • Longitudinal power feed with rapid transverse
  • Rapid knee traverse
  • Rear rubber way cover
  • 1 Inch diameter horizontal arbor
  • Two over arm supports
  • One shot lubrication system
  • Toolbox
  • X Axis Travel: 36"
  • Y Axis Travel: 16-1/2"
  • Z Axis Travel: 5" Quill
  • Ram Travel: 18-1/2"
  • Knee Travel: 17-1/2"
  • Throat Distance: 12-13/16"
  • Spindle Gauge-line to Table Top: 5-5/16"
  • Vertical Spindle Taper: NST #40
  • Vertical Speed (Variable Speed): 60-4500 RPM
  • Quill Feed (IPR): 0.0016, 0.003, 0.006
  • Horizontal Speed (6 Speeds): 80-1350 RPM
  • Horizontal Spindle Center to Table: 0" to 17-3/8"
  • Horizontal Spindle Center to Overarm: 5-1/2"
  • Horizontal Spindle Nose to Table: 15/16"
  • Head Tilt (right-left): 90°
  • Head Tilt (up-down): 45°
  • Vertical Motor: 5 HP, 220 or 440 Volts, 3 Phase
  • Horizontal Motor: 5 HP, 220 or 440 Volts, 3 Phase
  • Dimensions: 82" x 75" x 93"
  • Weight: 4200 Lbs.
