Portable Line boring Machine Equipment to repair holes on heavy equipment.  CLICK FOR HOMEPAGE.

Portable Line Boring Machine Equipment

Portable Line Boring Machine Equipment for easy concentric bore repair of holes on Backhoes, Dozers, Endloaders, Scrapper Hitches, Tractors, Excavators, machine frames, etc - using a standard magnetic drill press.

Photo of John Deere backhoe

Photo of John Deere excavator

Photo of Caterpillar compacter

Photo of Caterpillar dozer

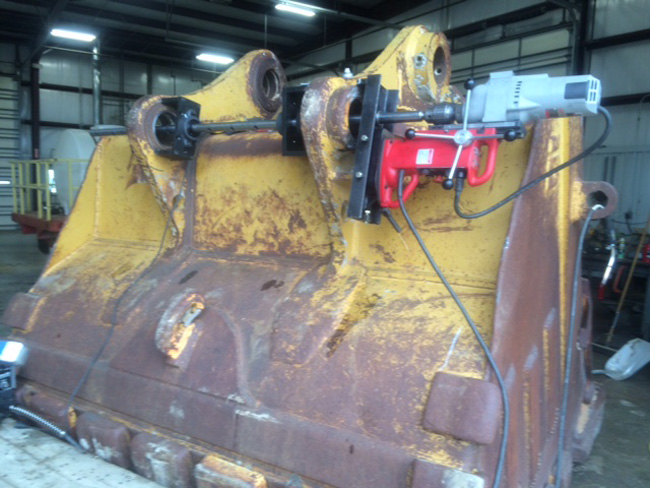

Customer photo shows our 72" boring bar reboring 4 holes in line on a large bucket. The mag drill is held by our weld-on safety base in case of power failure. Also notice the 2 just bored and sleeved holes above.

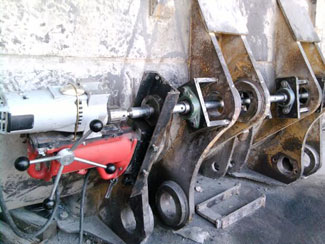

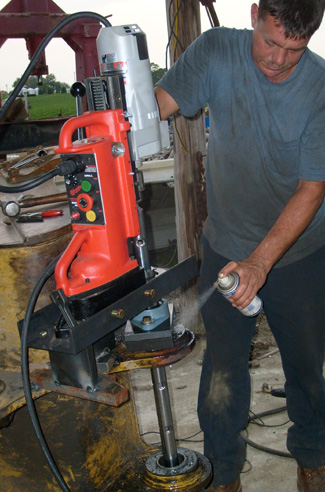

All you need is our line boring equipment, a mag drill, welder, grinder and you can do it. But avoid the dangers of long hair and loose clothing.

Q125, Q150, Q175 Line Boring Systems - with drill base adapter:

Made in Chicago, Illinois, USA. Our equipment is the easiest and most economical way to rebore holes round and concentric again. One year warranty against defects in American craftsmanship.The Q125S, Q150 and Q175 setups include everything you need for reboring most holes. It is intended for repairing holes up to 8 inch diameter in heavy construction equipment such as cranes, backhoes, endloaders, excavators and tractors powered by your variable speed magnetic drill press with a 3/4 inch drill chuck. It can also be used to rebore holes in machinery frames, steel mill ladles, bridge support pivots, etc. Our 1.500 inch diameter and 1.750" diameter boring bars hold standard 1/2" square shank carbide lathe machine cutting tools. Our 1.250" diameter boring bars hold standard 3/8" square shank carbide lathe machine cutting tools. The bearing that is built into our Adapter Base bearing will hold the boring shaft load to prevent overloading the bearings in your mag drill. Since 2014 we now add extra mounting holes to allow an extra flange bearing to be bolted directly underneath. The Adapter Base also clamps the magnetic drill in case of power failure. A jacking screw is provided for positioning. Approved by Milwaukee Tool Company Engineers for use with their magnetic drill press. Available in 2 lengths depending upon what is the length of your magnetic base. Our boring bars are made from hard chrome plated induction hardened high tensile strength alloy steel to last a lifetime. Without a thick layer of chrome plating, your boring bar will need to be sanded and/or oiled regularly to prevent rust. The chrome is so hard it prevents scratches or scars on your shaft. The chrome also makes removing weld splatter super easy. That is why we sell only chrome plated boring shafts. No maintenance required. We also can supply .875, 1.00, 1.25 1.50 and 1.75 diameter boring bars separately. Prices do not include shipping cost. Most equipment is in stock and ships the next day or so. Scroll down to see all our different size kits, photos, videos, instructions and options.

Optional powerfeed available at extra cost.

CLICK TO READ ENDORSEMENTS of our equipment from past users

VIDEOS:

Line Boring Bars Separately:

Our boring bars are hard chrome plated induction hardened high tensile strength alloy steel. The hard chrome means they dont rust, set screws in the cones wont hurt the chrome and weld splatter wont stick. Most sizes are normally in stock.

PRICES for BORING BARS only:

  • 0.875 diameter x 36 inches long: $395. (for holes 1 to 1.50 inch diameter).
  • 1.000 diameter x 36 inches long: $425. (for holes 1.12 to 1.50 inch diameter).
  • 1.250 diameter x 20 inches long: $280. (for holes 1.50 to 4 inch diameter).
  • 1.250 diameter x 40 inches long: $550.
  • 1.250 diameter x 60 inches long: $795.
  • 1.500 diameter x 20 inches long: $350. (for holes 1.75 to 5.5 inch diameter)*.
  • 1.500 diameter x 40 inches long: $695.
  • 1.500 diameter x 54 inches long: $895.
  • 1.500 diameter x 72 inches long: $1095.
  • 1.750 diameter x 20 inches long: $380. (for holes 2 to 6 inch diameter)*.
  • 1.750 diameter x 40 inches long: $750.
  • 1.750 diameter x 48 inches long: $895.
  • 1.750 diameter x 72 inches long: $1195.
  • 1.750 diameter x 96 inches long: $1495.
  • Shafts .875 and 1 inch diameter have a 1/2" diameter shank with 3 flats 120 degrees apart.
  • Shafts 1.25, 1.50 and 1.75 inch have a 3/4" diameter shank with 3 flats 120 degrees apart.
  • .875 dia has .25 square holes, 1.00 dia has .312 square holes, 1.25 dia has .375 square holes, 1.500 dia has .500 square holes, 1.750 dia has .500 square holes spaced 5 inches apart.
  • Shipped in PVC tube with end caps. Cutters, bearings, shipping, etc cost extra.
  • 8 inch diameter is possible if you purchase our 8 inch Boring Kit: $695.

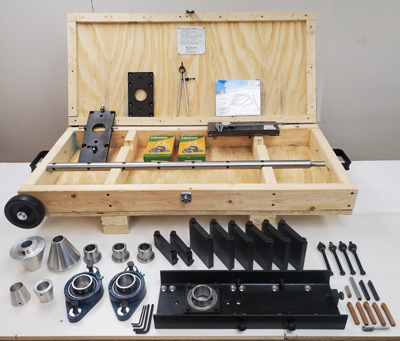

Q125-S Line Boring Kit

Bores single holes or 2 holes in-line from 1.50 to 4 inches diameter spaced up to 24 inches apart

$2295.

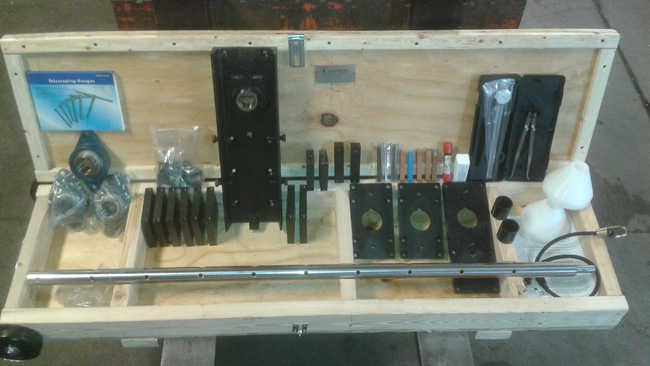

Q125-S portable Line Boring Machine includes equipment carrying case with dolly wheels (new!)
Click to request Q125-S information be sent to you

  • 1.25" diameter x 40" long Boring Bar - chrome plated induction hardened and precision ground 100,000 PSI high tensile strength alloy steel.
  • The chrome resists burrs and scoring to still fit the bearings use after use.
  • Cutting Bit mounting holes are spaced 5 inches apart. 3/4" shank with 3 flats for solid gripping by your drill chuck.
  • 1 Drill Base Adapter with built-in bearing - Important safety device to hold the magnetic drill press in case of power failure. The built-in bearing takes the load of the boring shaft to prevent overloading the internal drill press bearings. Includes mounting hole for BOA-408-AMT bore welder.
  • 2 Self-aligning Bearings - the I.D. of the bearings have a perfect fit between bar and bearings, which insures holes can be bored to near zero TIR runout.
  • 2 Bearing Plates - 3/4 inch thick to reduce vibration when boring.
  • 10 Standoffs - 3 different heights
  • 2 Centering Cones - for quick concentric alignment of the boring bar and bearings in larger holes.
  • 2 Positioning Sleeves - for quick concentric alignment of the boring bar and bearings in small holes.
  • 7 Bore Cutting Tools - 3 types of boring, and 1 chamfering. Held in the boring shaft by heavy set screws.
  • 1 Dial Caliper - Measures 0" to 8" with dial readout to .001" (digital optional)
  • 1 Caliper Jaw Extensions - Extends the jaws of the Dial Caliper to measure inside holes with shaft still inside.

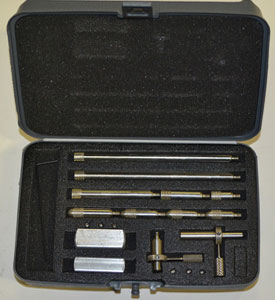

  • 1 Telescoping Bore Gage Set - To measure the diameter of your holes.
  • 1 Wood case - now with dolly wheels.

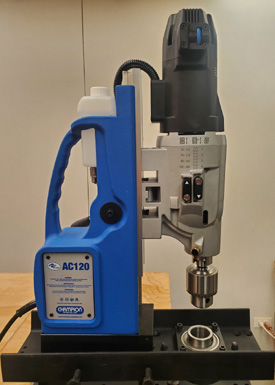

  • Optional Milwaukee Portable Magnetic Drill Press with chuck: $1595. (Variable speed, 9" stroke. See below)
  • Optional Q88A 7/8" x 36" Boring Bar Kit with bushings, cones, and cutters for use with Q150 equipment. Bores holes 1" to 1.5" diameter: $750.
  • Optional BOA-408-AMT Bore Welder: $6995. extra
  • Optional Measuring Tools: for bore sizing and cutter positioning - scroll down below for info, photos, prices
  • Q125-L with 60" boring bar + 1 extra bearing: $2595.

- Q125-L with 60" long boring bar + 1 extra bearing assembly: $2695.
Click to request Q125-L information be sent to you

- scroll down below for more info, photos, and prices

Q150-S Line Boring Kit

Bores 2 holes in-line from 1.75 to 5.5 inches diameter spaced up to 24 inches apart, maybe more. 8 inch diameter capacity optional.

$2395.

Q150-S portable Line Boring Machine includes equipment carrying case - now with dolly wheels (not shown)
Click to request Q150-S information be sent to you

  • Powered by magnetic drill with 3/4" drill chuck.
  • Optional Milwaukee Portable Magnetic Drill Press with chuck: $1595. (Variable speed, 9" stroke. See below)
  • Optional Power Feed: $1695. extra
  • Optional Adapter, large Cones & Bearing Plates to bore up to 8 inches diameter: $695. extra
  • Optional Q88A 7/8" x 36" Boring Bar Kit with bushings, cones and cutters for use with Q150 equipment. Bores holes 1" to 1.5" diameter: $750.
  • Optional 20" long boring shaft for single holes: $350.
  • Optional BOA-408-AMT Bore Welder: $6995. extra
  • Extra Carbide cutters: $12. each
  • Optional Measuring Tools: for bore sizing and cutter positioning - scroll down below for info, photos, prices and other options
  • 1.50" diameter x 40" long Boring Bar - chrome plated induction hardened and precision ground 100,000 PSI high tensile strength alloy steel.
  • The chrome resists burrs and scoring to still fit the bearings use after use.
  • Cutting Bit mounting holes are spaced 5 inches apart. 3/4" shank with 3 flats for solid gripping by your drill chuck.
  • 1 Drill Base Adapter with built-in bearing - Important safety device to hold the magnetic drill press in case of power failure. The built-in bearing takes the load of the boring shaft to prevent overloading the internal drill press bearings. Includes mounting hole for BOA-408-AMT bore welder.
  • 2 Self-aligning Bearings - the I.D. of the bearings have a perfect fit between bar and bearings, which insures holes can be bored to near zero TIR runout.
  • 2 Bearing Plates - 3/4 inch thick to reduce vibration when boring.
  • 10 Standoffs - 3 different heights
  • 2 Centering Cones - for quick concentric alignment of the boring bar and bearings in larger holes.
  • 2 Positioning Sleeves - for quick concentric alignment of the boring bar and bearings in small holes.
  • 8 Bore Cutting Tools - 3 types of boring, and 1 chamfering. Held in the boring shaft by heavy set screws.
  • 1 Dial Caliper - Measures 0" to 8" with dial readout to .001" (digital optional)
  • 1 Caliper Jaw Extensions - Extends the jaws of the Dial Caliper to measure inside holes with shaft still inside.
  • 1 Telescoping Bore Gage Set - To measure the diameter of your holes.
  • 1 Wood case - now with dolly wheels.

- scroll down below for more info, photos, prices and other options

Q175-S Line Boring Kit

Bores 2 holes in-line from 2 to 6 inches diameter spaced up to 24 inches apart, maybe more. 8 inch diameter boring capacity optional.

$2595.


Click to request Q175-S information be sent to you

  • Powered by magnetic drill with 3/4" drill chuck.
  • Optional Milwaukee Portable Magnetic Drill Press with chuck: $1595. (Variable speed, 9" stroke. See below)
  • Optional Power Feed: $1695. extra
  • Optional Adapter, large Cones & Bearing Plates to bore up to 8 inches diameter: $695. extra
  • Optional Q100A 1" x 36" Boring Bar Kit with bushings, cones and cutters for use with Q150 equipment. Bores holes 1.25" to 1.5" diameter: $795.
  • Optional 20" long boring shaft for single holes: $380.
  • Optional BOA-408-AMT Bore Welder: $6995. extra
  • Extra Carbide cutters: $12. each
  • Optional Measuring Tools: for bore sizing and cutter positioning - scroll down below for info, photos, prices and other options
  • 1.75" diameter x 40" long Boring Bar - chrome plated induction hardened and precision ground 100,000 PSI high tensile strength alloy steel.
  • The chrome resists burrs and scoring to still fit the bearings use after use.
  • Cutting Bit mounting holes are spaced 5 inches apart. 3/4" shank with 3 flats for solid gripping by your drill chuck.
  • 1 Drill Base Adapter with built-in bearing - Important safety device to hold the magnetic drill press in case of power failure. The built-in bearing takes the load of the boring shaft to prevent overloading the internal drill press bearings. Includes mounting hole for BOA-408-AMT bore welder.
  • 2 Self-aligning Bearings - the I.D. of the bearings have a perfect fit between bar and bearings, which insures holes can be bored to near zero TIR runout.
  • 2 Bearing Plates - 3/4 inch thick to reduce vibration when boring.
  • 10 Standoffs - 3 different heights
  • 2 Centering Cones - for quick concentric alignment of the boring bar and bearings in larger holes.
  • 2 Positioning Sleeves - for quick concentric alignment of the boring bar and bearings in small holes.
  • 8 Bore Cutting Tools - 3 types of boring, and 1 chamfering. Held in the boring shaft by heavy set screws.
  • 1 Dial Caliper - Measures 0" to 8" with dial readout to .001" (digital optional)
  • 1 Caliper Jaw Extensions - Extends the jaws of the Dial Caliper to measure inside holes with shaft still inside.
  • 1 Telescoping Bore Gage Set - To measure the diameter of your holes.
  • 1 Wood case - now with dolly wheels.

- scroll down below for more info, photos, prices and other options

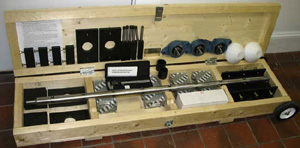

Q150-L Line Boring Kit

Rebores multiple holes in-line from 1.75 to 5.5 inches diameter spaced up to 40" apart. (44mm to 140mm diameter holes up to 965mm apart). 8 inch boring option available.

$2795.

Call 773-334-5000 to order this equipment. Ships within 2 days.

Click to request the Q150-L formal quote and information be sent to you

The standard Q150-L comes complete with everything you need except the mag drill:

  • 1.50" diameter x 54" long Boring Bar - chrome plated induction hardened and precision ground 100,000 PSI high tensile strength alloy steel. The chrome resists burrs and scoring to still fit the bearings use after use. Cutting Bit mounting holes are spaced 5 inches apart. 3/4 diameter shank with 3 flats for solid gripping by your mag drill chuck.
  • 3 bolt-on self-aligning Bearings - the I.D. of the bearings have a perfect fit between bar and bearings, which insures holes can be bored to near zero TIR runout.
  • 3 Bolt-on Bearing Mounting Plates and 5 pairs of Standoffs - 3/4 inch thick for easy weld on and vibration free machining. Easy to unbolt for measuring or welding. Black oxide coated to prevent rust. One of the Bearing Mounting Plates is extra long for use at the end of a boom or to mount the optional bore welder. Standoffs come in 3 different heights.
  • 1 Drill Base Adapter with built-in bearing - Important safety device to hold the magnetic drill press in case of power failure. The built-in bearing takes the load of the boring shaft to prevent overloading the internal drill press bearings. Includes mounting hole for BOA-408-AMT bore welder.
  • 2 Centering Sleeves - for concentric alignment of the boring bar and bearings in small holes.
  • 2 Positioning Cones - for quick concentric alignment of the boring bar and bearings in larger holes.
  • 8 Carbide Cutting Tools - 3 types of boring, 1 chamfering, 1 facing. Held in the boring shaft by heavy set screws. Modifiable cutters are long enough to rebore 5.5" diameter.
  • 1 Dial Caliper - Measures 0" to 8" with dial readout to .001"
  • 1 Caliper Jaw Extensions - Extends the jaws of the Digital Caliper to measure inside holes.
  • 1 Telescoping Bore Gage Set - To measure the diameter of your holes.
  • 1 Elastic Bunge Cord - Use the hold cones in position or to dampen boring bar vibration.
  • 1 Solid Wood Case - Padlockable, with 2 handles, and dolly wheels.

SCROLL WAY DOWN TO SEE PHOTOS OF OPTIONS.

Optionals include:

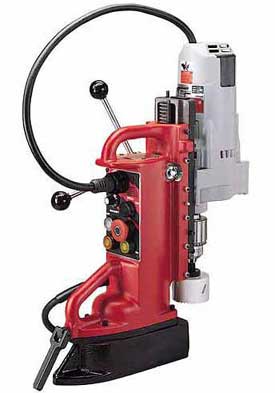

  • Milwaukee Portable Magnetic Drill Press with chuck: $1595. (see below) Variable speed, 9" stroke. You need this if you do not already have a mag drill with 3/4" chuck.
  • Power Feed: $1695. extra
  • Adapter Kit to bore up to 8 inches (200mm) diameter (with positioning cones for 5" to 8" diameter and extra long bearing mounting plates): $695. extra

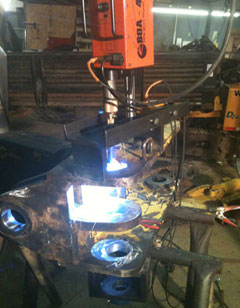

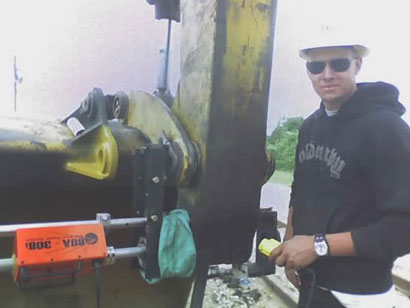

  • BOA-408-AMT Bore Welder Attachment: $6995. extra
  • 40" long short bar for easy short distance boring: $695. extra
  • 20" long extra short bar for single hole boring: $350. extra

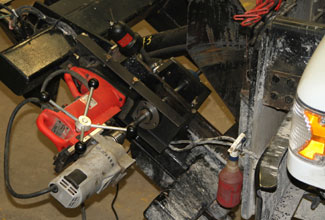

  • Q88A 7/8" x 36" Boring Bar Kit for use with Q150 equipment - bores holes from 1" to 1.5" diameter up to 15" apart. Also includes adapter bushings and centering cones: $750.
  • Q100A - 1.00 x 36" long Boring Bar Kit with bushings and cones for use with the Q150 equipment - bores holes from 1.25" to 1.5" diameter up to 20" apart: $795.
  • Ajustable measuring/centering tools: $95. each- these mount inside boring bar
  • Clamping Coller Set: $119. extra - reduce vibration in holes 3.5 to 5.5" dia.

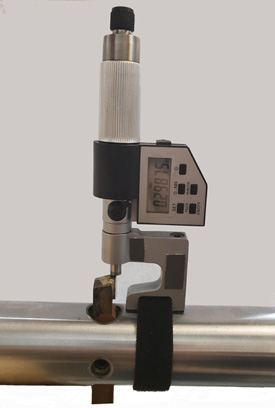

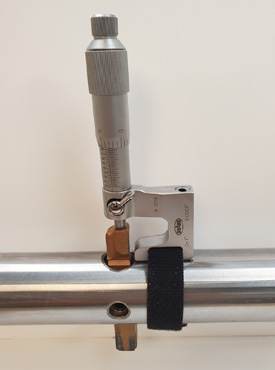

  • Cutting Tool Positioner: $199. - this adjusts the cutter height within .001"
  • Grooving Tool Set: $590. - includes everything to machine retaining ring grooves
  • Extra Cutting Tools: $12. each (minumum purchase is quantity of 10)

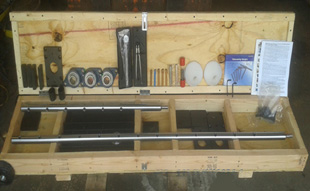

Q150-XLS Line Boring Kit

Rebores multiple holes in-line from 1.75 to 5.5 inches diameter spaced up to 60" apart.(44mm to 140mm diameter holes up to 1425mm apart). Rebores up to 8 inches (200mm) diameter with optional oversize boring kit.

$3495.

Call 773-334-5000 to order this equipment. Ships within 2 days.

Click to request the Q150XLS formal quote and information be sent to you

The standard Q150-XLS comes complete with everything you need except the mag drill:

  • 1.50" diameter x 72" long Boring Bar - chrome plated induction hardened and precision ground 100,000 PSI high tensile strength alloy steel. The chrome resists burrs and scoring to still fit the bearings use after use. Cutting Bit mounting holes are spaced 5 inches apart. 3/4 diameter shank with 3 flats for solid gripping by your mag drill chuck.
  • 1.50" diameter x 40" long Boring Bar - for easy close hole boring.
  • 3 bolt-on self-aligning Bearings - the I.D. of the bearings have a perfect fit between bar and bearings, which insures holes can be bored to near zero TIR runout.
  • 3 Bolt-on Bearing Mounting Plates and 5 pairs of Standoffs - 3/4 inch thick for easy weld on and vibration free machining. Easy to unbolt for measuring or welding. Black oxide coated to prevent rust. One of the Bearing Mounting Plates is extra long for use at the end of a boom or to mount the optional bore welder. Standoffs come in 3 different heights.
  • 1 Drill Base Adapter with built-in bearing - Important safety device to hold the magnetic drill press in case of power failure. The built-in bearing takes the load of the boring shaft to prevent overloading the internal drill press bearings. Includes mounting hole for BOA-408-AMT bore welder.
  • 2 Centering Sleeves - for concentric alignment of the boring bar and bearings in small holes.
  • 2 Positioning Cones - for quick concentric alignment of the boring bar and bearings in larger holes.
  • 8 Carbide Cutting Tools - 3 types of boring, 1 chamfering, 1 facing. Held in the boring shaft by heavy set screws. Modifiable cutters are long enough to rebore 5.5" diameter.
  • 1 Dial Caliper - Measures 0" to 8" with dial readout to .001"
  • 1 Caliper Jaw Extensions - Extends the jaws of the Digital Caliper to measure inside holes.
  • 1 Telescoping Bore Gauge Set - To measure the diameter of your holes.
  • 1 Elastic Bunge Cord - Use the hold cones in position or to dampen boring bar vibration.
  • 1 Solid Wood Case - Padlockable, with 2 handles, and dolly wheels.

SCROLL WAY DOWN TO SEE PHOTOS OF OPTIONS.

Optionals include:

  • Milwaukee Portable Magnetic Drill Press with chuck: $1595. (see below) Variable speed, 9" stroke. You need this if you do not already have a mag drill with 3/4" chuck.
  • Power Feed: $1695. extra
  • Adapter Kit to bore up to 8 inches (200mm) diameter (with positioning cones for 5" to 8" diameter and extra long bearing mounting plates): $695. extra
  • BOA-408-AMT Bore Welder Attachment: $6995. extra
  • 40" long short bar for easy short distance boring: $695. extra
  • 20" long extra short bar for single hole boring: $350. extra
  • Q88A 7/8" x 36" Boring Bar Kit for use with Q150 equipment - bores holes from 1" to 1.5" diameter up to 15" apart. Also includes adapter bushings and centering cones: $750.
  • Q100A - 1.00 x 36" long Boring Bar Kit with bushings and cones for use with the Q150 equipment - bores holes from 1.25" to 1.5" diameter up to 20" apart: $795.
  • Ajustable measuring/centering tools: $95. each- these mount inside boring bar
  • Clamping Coller Set: $119. extra - reduce vibration in holes 3.5 to 5.5" dia.
  • Cutting Tool Positioner: $199. - this adjusts the cutter height within .001"
  • Grooving Tool Set: $590. - includes everything to machine retaining ring grooves
  • Extra Cutting Tools: $12. each (minumum purchase is quantity of 10)

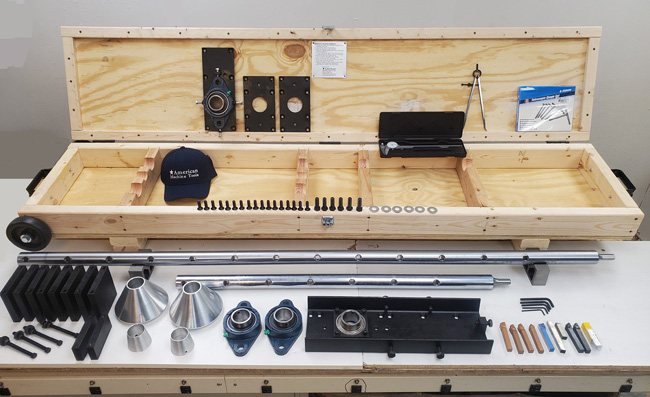

Q175-XLS Line Boring Kit

Q175XLS portable line boring equipment

Rebores multiple holes in-line from 2 to 6 inches diameter spaced up to 60" apart.(50mm to 150mm diameter holes up to 1425mm apart). Rebores up to 8 inches (200mm) diameter with optional oversize boring kit.

$3795.

Call 773-334-5000 to order this equipment. Ships within 2 days.

Click to request the Q175XLS formal quote and information be sent to you

The standard Q175-XLS comes complete with everything you need except the mag drill:

  • 1.75" diameter x 72" long Boring Bar - chrome plated induction hardened and precision ground 100,000 PSI high tensile strength alloy steel. The chrome resists burrs and scoring to still fit the bearings use after use. Cutting Bit mounting holes are spaced 5 inches apart. 3/4 diameter shank with 3 flats for solid gripping by your mag drill chuck.
  • 1.75" diameter x 40" long Boring Bar - for easy close hole boring.
  • 3 bolt-on self-aligning Bearings - the I.D. of the bearings have a perfect fit between bar and bearings, which insures holes can be bored to near zero TIR runout.
  • 3 Bolt-on Bearing Mounting Plates and 5 pairs of Standoffs - 3/4 inch thick for easy weld on and vibration free machining. Easy to unbolt for measuring or welding. Black oxide coated to prevent rust. One of the Bearing Mounting Plates is extra long for use at the end of a boom or to mount the optional bore welder. Standoffs come in 3 different heights.
  • 1 Drill Base Adapter with built-in bearing - Important safety device to hold the magnetic drill press in case of power failure. The built-in bearing takes the load of the boring shaft to prevent overloading the internal drill press bearings. Includes mounting hole for BOA-408-AMT bore welder.
  • 2 Centering Sleeves - for concentric alignment of the boring bar and bearings in small holes.
  • 2 Positioning Cones - for quick concentric alignment of the boring bar and bearings in larger holes.
  • 8 Carbide Cutting Tools - 3 types of boring, 1 chamfering, 1 facing. Held in the boring shaft by heavy set screws. Modifiable cutters are long enough to rebore 5.5" diameter.
  • 1 Dial Caliper - Measures 0" to 8" with dial readout to .001"
  • 1 Caliper Jaw Extensions - Extends the jaws of the Digital Caliper to measure inside holes.
  • 1 Telescoping Bore Gauge Set - To measure the diameter of your holes.
  • 1 Elastic Bunge Cord - Use the hold cones in position or to dampen boring bar vibration.
  • 1 Solid Wood Case - Padlockable, with 2 handles, and dolly wheels.

SCROLL WAY DOWN TO SEE PHOTOS OF OPTIONS.

Optionals include:

  • Milwaukee Portable Magnetic Drill Press with chuck: $1595. (see below) Variable speed, 9" stroke. You need this if you do not already have a mag drill with 3/4" chuck.
  • Power Feed: $1695. extra
  • Adapter Kit to bore up to 8 inches (200mm) diameter (with positioning cones for 5" to 8" diameter and extra long bearing mounting plates): $695. extra
  • BOA-408-AMT Bore Welder Attachment: $6995. extra
  • 20" long extra short bar for single hole boring: $380. extra
  • Q88A 7/8" x 36" Boring Bar Kit for use with Q175 equipment - bores holes from 1" to 1.5" diameter up to 15" apart. Also includes adapter bushings and centering cones: $750.
  • Q100A - 1.00 x 36" long Boring Bar Kit with bushings and cones for use with the Q175 equipment - bores holes from 1.25" to 1.5" diameter up to 20" apart: $795.
  • Optional Q125A - 1.250 x 40" long Boring Bar Kit with bushings and cones for use with the Q175 equipment - bores holes from 1.5" to 4" diameter up to 24" apart: $850.
  • Ajustable measuring/centering tools: $95. each- these mount inside boring bar
  • Clamping Coller Set: $119. extra - reduce vibration in holes 3.5 to 5.5" dia.
  • Cutting Tool Positioner: $199. - this adjusts the cutter height within .001"
  • Grooving Tool Set: $590. - includes everything to machine retaining ring grooves
  • Extra Cutting Tools: $12. each (minumum purchase is quantity of 10)

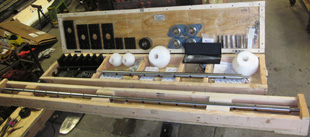

Q175-XLM Line Boring Kit

Same as Q175XLS but includes 1.750 diameter boring shafts x 48 inch long and 96 inch long for extra strength and extra length. Rebores holes from 2 inch (50mm) to 6 inch (150mm) diameter in line at least 80 inches (2 meters) apart. Uses 1/2 inch (12.5mm) carbide cutters. [Photo shows optional 8 inch capacity boring adapter and 8" cones that cost extra]. This setup is too large for most uses.

$4395.

Call 773-334-5000 to order this equipment. Ships within 2 days.

Click to request the Q175XLM formal quote and information be sent to you

The standard Q175-XLM comes complete with everything you need except the mag drill:

  • 1.75" diameter x 96" long Boring Bar - chrome plated induction hardened and precision ground 100,000 PSI high tensile strength alloy steel. The chrome resists burrs and scoring to still fit the bearings use after use. Cutting Bit mounting holes are spaced 5 inches apart. 3/4 diameter shank with 3 flats for solid gripping by your mag drill chuck.
  • 1.75" diameter x 48" long Boring Bar - for easy close hole boring.
  • 4 bolt-on self-aligning Bearings - the I.D. of the bearings have a perfect fit between bar and bearings.
  • 4 Bolt-on Bearing Mounting Plates and 6 pairs of Standoffs - 3/4 inch thick for easy weld on and vibration free machining. Easy to unbolt for measuring or welding. Black oxide coated to prevent rust. One of the Bearing Mounting Plates is extra long for use at the end of a boom or to mount the optional bore welder. Standoffs come in 3 different heights.
  • 1 Drill Base Adapter with built-in bearing - Important safety device to hold the magnetic drill press in case of power failure. The built-in bearing takes the load of the boring shaft to prevent overloading the internal drill press bearings. Includes mounting hole for BOA-408-AMT bore welder.
  • 2 Centering Sleeves - for concentric alignment of the boring bar and bearings in small holes.
  • 2 Positioning Cones - for quick concentric alignment of the boring bar and bearings in larger holes.
  • 8 Carbide Cutting Tools - 3 types of boring, 1 chamfering, 1 facing. Held in the boring shaft by heavy set screws. Modifiable cutters are long enough to rebore 5.5" diameter.
  • 1 Dial Caliper - Measures 0" to 8" with dial readout to .001"
  • 1 Caliper Jaw Extensions - Extends the jaws of the Digital Caliper to measure inside holes.
  • 1 Telescoping Bore Gauge Set - To measure the diameter of your holes.
  • 1 Elastic Bunge Cord - Use the hold cones in position or to dampen boring bar vibration.
  • 1 Solid Wood Case - Padlockable, with 2 handles, and dolly wheels.

SCROLL WAY DOWN TO SEE PHOTOS OF OPTIONS.

Optionals include:

  • Milwaukee Portable Magnetic Drill Press with chuck: $1595. (see below) Variable speed, 9" stroke. You need this if you do not already have a mag drill with 3/4" chuck.
  • Power Feed: $1695. extra
  • Adapter Kit to bore up to 8 inches (200mm) diameter (with positioning cones for 5" to 8" diameter and extra long bearing mounting plates): $695. extra
  • BOA-408-AMT Bore Welder Attachment: $6995. extra
  • 21" long extra short bar for single hole boring: $380. extra
  • Q88A 7/8" x 36" Boring Bar Kit for use with Q175 equipment - bores holes from 1" to 1.5" diameter up to 15" apart. Also includes adapter bushings and centering cones: $750.
  • Q100A - 1.00 x 36" long Boring Bar Kit with bushings and cones for use with the Q175 equipment - bores holes from 1.25" to 1.5" diameter up to 20" apart: $795.
  • Optional Q125A - 1.250 x 40" long Boring Bar Kit with bushings and cones for use with the Q175 equipment - bores holes from 1.5" to 4" diameter up to 24" apart: $850.
  • Ajustable measuring/centering tools: $95. each- these mount inside boring bar
  • Clamping Coller Set: $119. extra - reduce vibration in holes 3.5 to 5.5" dia.
  • Cutting Tool Positioner: $199. - this adjusts the cutter height within .001"
  • Grooving Tool Set: $590. - includes everything to machine retaining ring grooves
  • Extra Cutting Tools: $12. each (minumum purchase is quantity of 10)

Q150-E5 Line Boring Kit and Q150-E8 Line Boring Kit

Q150-E5 - Rebores holes in-line 1.75 to 5.5 inches (140mm) diameter. Includes Milwaukee Magnetic Drill Press with manual feed.
Q150-E8 - Rebores holes in-line from 1.75 to 8 inches (200mm) diameter. Includes Milwaukee Magnetic Drill Press with manual feed.

Q150-E5 - $5090.
Q150-
E8 - $5675.

Call 773-334-5000 to order this equipment. Ships within 2 days.

Click to request the Q150E formal quote and information be sent to you

The standard Q150-E5 comes complete with:

  • 1.75" diameter x 75" long Boring Bar - chrome plated induction hardened and precision ground 100,000 PSI high tensile strength alloy steel. The chrome resists burrs and scoring to still fit the bearings use after use. Cutting Bit mounting holes are spaced 5 inches apart. 3/4 diameter shank with 3 flats for solid gripping by your mag drill chuck.
  • 1.5" diameter x 40" long Boring Bar - for easy close hole boring.
  • 1 Milwaukee Portable Magnetic Drill Press - with 3/4" chuck, 9" stroke and variable speed.
  • 3 bolt-on self-aligning Bearings - the I.D. of the bearings have a perfect fit between bar and bearings.
  • 3 Bolt-on Bearing Mounting Plates and 5 pairs of Standoffs - 3/4 inch thick for easy weld on and vibration free machining. Easy to unbolt for measuring or welding. Black oxide coated to prevent rust. One of the Bearing Mounting Plates is extra long for use at the end of a boom or to mount the optional bore welder. Standoffs come in 3 different heights.
  • 1 Drill Base Adapter with built-in bearing - Important safety device to hold the magnetic drill press in case of power failure. The built-in bearing takes the load of the boring shaft to prevent overloading the internal drill press bearings. Includes mounting hole for BOA-408-AMT bore welder.
  • 2 Centering Sleeves - for concentric alignment of the boring bar and bearings in small holes.
  • 2 Positioning Cones - for quick concentric alignment of the boring bar and bearings in larger holes.
  • 8 Carbide Cutting Tools - 3 types of boring, 1 chamfering, 1 facing. Held in the boring shaft by heavy set screws. Modifiable cutters are long enough to rebore 5.5" diameter.
  • 1 Dial Caliper - Measures 0" to 8" with dial readout to .001"
  • 1 Caliper Jaw Extensions - Extends the jaws of the Digital Caliper to measure inside holes.
  • 1 Telescoping Bore Gauge Set - To measure the diameter of your holes.
  • 1 Elastic Bunge Cord - Use the hold cones in position or to dampen boring bar vibration.
  • 1 Solid Wood Case - Padlockable, with 2 handles, and dolly wheels.

Q150-E8 is same as E5 but it also comes with:

  • 1 Adaptor to bore up to 8 inches (200mm) diameter - heavy duty solid steel. Holds carbide cutter out far enough for reboring holes up to 8 inch diameter.
  • 3 Longer bolt-on Bearing Plates - to bridge over 8" diameter holes.
  • 2 extra Centering Cones - for concentric alignment of the boring bar and bearings in holes 5" to 8"

Optionals available:

  • Power Feed: $1695 extra
  • BOA-408-AMT Bore Welder Attachment: $6995. extra
  • E8 Adapter Kit to bore up to 8 inches (200mm) diameter (with boring adapter, large positioning cones for 5" to 8" diameter and extra long bearing mounting plates): $695. extra
  • 20" long extra short bar for single hole boring: $380. extra
  • Q88A 7/8" x 36" Boring Bar Kit for use with Q150 equipment - bores holes from 1" to 1.5" diameter up to 15" apart. Also includes adapter bushings and centering cones: $750.
  • Q100A - 1.00 x 36" long Boring Bar Kit with bushings and cones for use with the Q150 equipment - bores holes from 1.25" to 1.5" diameter up to 20" apart: $795.
  • Ajustable measuring/centering tools: $95. each- these mount inside boring bar
  • Slotted Clamping Coller Set: $119. extra - reduce vibration in holes 3.5 to 5.5" dia.
  • Cutting Tool Positioner: $199. - this adjusts the cutter height within .001"
  • Grooving Tool Set: $590. - includes everything to machine retaining ring grooves
  • Extra Cutting Tools: $12. each (minumum purchase is quantity of 10)

Q175-E8 Line Boring Kit

Q175XLS portable line boring equipment

Same as Q150E8 but includes 1.750 diameter (not 1.500) boring bars x 40 inch long and 72 inch long for extra strength. Rebores holes from 2 inch (50mm) to 8 inch (200mm) diameter in line up to 60 inches (2 meters) apart. Uses 1/2 inch (12.5mm) carbide cutters.

$5995.

Call 773-334-5000 to order this equipment. Ships within 2 days.

Click to request the Q175E8 formal quote and information be sent to you

The standard Q175-E8 comes with:

  • 1.75" diameter x 72" long Boring Bar - chrome plated induction hardened and precision ground 100,000 PSI high tensile strength alloy steel. The chrome resists burrs and scoring to still fit the bearings use after use. Cutting Bit mounting holes are spaced 5 inches apart. 3/4 diameter shank with 3 flats for solid gripping by your mag drill chuck.
  • 1 Milwaukee Portable Magnetic Drill Press - with 3/4" chuck, 9" stroke and variable speed.
  • 1.75" diameter x 40" long Boring Bar - for easy close hole boring.
  • 3 bolt-on self-aligning Bearings - the I.D. of the bearings have a perfect fit between bar and bearings.
  • 3 Bolt-on Bearing Mounting Plates and 5 pairs of Standoffs - 3/4 inch thick for easy weld on and vibration free machining. Easy to unbolt for measuring or welding. Black oxide coated to prevent rust. One of the Bearing Mounting Plates is extra long for use at the end of a boom or to mount the optional bore welder. Standoffs come in 3 different heights.
  • 1 Drill Base Adapter with built-in bearing - Important safety device to hold the magnetic drill press in case of power failure. The built-in bearing takes the load of the boring shaft to prevent overloading the internal drill press bearings. Includes mounting hole for BOA-408-AMT bore welder.
  • 2 Centering Sleeves - for concentric alignment of the boring bar and bearings in small holes.
  • 4 Positioning Cones - for quick concentric alignment of the boring bar and bearings in small and large holes.
  • 8 Carbide Cutting Tools - 3 types of boring, 1 chamfering, 1 facing. Held in the boring shaft by heavy set screws.
  • 1 Dial Caliper - Measures 0" to 8" with dial readout to .001"
  • 1 Caliper Jaw Extensions - Extends the jaws of the Digital Caliper to measure inside holes.
  • 1 Telescoping Bore Gauge Set - To measure the diameter of your holes.
  • 1 Elastic Bunge Cord - Use the hold cones in position or to dampen boring bar vibration.
  • 1 Solid Wood Case - Padlockable, with 2 handles, and dolly wheels.

SCROLL WAY DOWN TO SEE PHOTOS OF OPTIONS.

Optionals include:

  • Power Feed: $1695 or $1995. extra
  • BOA-408-AMT Bore Welder Attachment: $6995. extra
  • 21" long extra short bar for single hole boring: $380. extra
  • Q88A 7/8" x 36" Boring Bar Kit for use with Q175 equipment - bores holes from 1" to 1.5" diameter up to 15" apart. Also includes adapter bushings and centering cones: $750.
  • Optional Q125A - 1.250 x 40" long Boring Bar Kit with bushings and cones for use with the Q175 or Q150 equipment - bores holes from 1.5" to 4" diameter up to 24" apart: $850.
  • Ajustable measuring/centering tools: $95. each- these mount inside boring bar
  • Clamping Coller Set: $119. extra - reduce vibration in holes 3.5 to 5.5" dia.
  • Cutting Tool Positioner: $199. - this adjusts the cutter height within .001"
  • Honing Tool : $97. - includes 220 grit & 100 grit honing stones
  • Facing-Sanding Tool : $194. - includes 6 coarse & 3 medium sanding discs
  • Grooving Tool Set: $590. - includes everything to machine retaining ring grooves
  • Extra Cutting Tools: $12. each (minumum purchase is quantity of 10)

Q175-XE8 Line Boring Kit


Q175-XE8 includes 1.750 diameter boring shafts x 48 inch long and 96 inch long for extra strength and extra length. Rebores holes from 2 inch (50mm) to 8 inch (200mm) diameter in line at least 80 inches (2 meters) apart. Uses 1/2 inch (12.5mm) carbide cutters. This setup is too large for most uses.

$6595.

Call 773-334-5000 to order this equipment. Ships within 3 days.

Click to request the Q175XE8 formal quote and information be sent to you

The standard Q175-E comes with:

  • 1.75" diameter x 96" long Boring Bar - chrome plated induction hardened and precision ground 100,000 PSI high tensile strength alloy steel. The chrome resists burrs and scoring to still fit the bearings use after use. Cutting Bit mounting holes are spaced 5 inches apart. 3/4 diameter shank with 3 flats for solid gripping by your mag drill chuck.
  • 1 Milwaukee Portable Magnetic Drill Press - with 3/4" chuck, 9" stroke and variable speed.
  • 1.75" diameter x 48" long Boring Bar - for easy close hole boring.
  • 4 bolt-on self-aligning Bearings - the I.D. of the bearings have a perfect fit between bar and bearings.
  • 4 Bolt-on Bearing Mounting Plates and 6 pairs of Standoffs - 3/4 inch thick for easy weld on and vibration free machining. Easy to unbolt for measuring or welding. Black oxide coated to prevent rust. One of the Bearing Mounting Plates is extra long for use at the end of a boom or to mount the optional bore welder. Standoffs come in 3 different heights.
  • 1 Drill Base Adapter with built-in bearing - Important safety device to hold the magnetic drill press in case of power failure. The built-in bearing takes the load of the boring shaft to prevent overloading the internal drill press bearings. Includes mounting hole for BOA-408-AMT bore welder.
  • 2 Centering Sleeves - for concentric alignment of the boring bar and bearings in small holes.
  • 4 Positioning Cones - for quick concentric alignment of the boring bar and bearings in larger holes.
  • 8 Carbide Cutting Tools - 3 types of boring, 1 chamfering, 1 facing. Held in the boring shaft by heavy set screws. Modifiable cutters are long enough to rebore 5.5" diameter.
  • 1 Dial Caliper - Measures 0" to 8" with dial readout to .001"
  • 1 Caliper Jaw Extensions - Extends the jaws of the Digital Caliper to measure inside holes.
  • 1 Telescoping Bore Gauge Set - To measure the diameter of your holes.
  • 1 Elastic Bunge Cord - Use the hold cones in position or to dampen boring bar vibration.
  • 1 Solid Wood Case - Padlockable, with 2 handles, and dolly wheels.

SCROLL WAY DOWN TO SEE PHOTOS OF OPTIONS.

Optionals include:

  • Power Feed: $1695 or $1995. extra
  • BOA-408-AMT Bore Welder Attachment: $6995. extra
  • 21" long extra short bar for single hole boring: $380. extra
  • Q88A 7/8" x 36" Boring Bar Kit for use with Q175 equipment - bores holes from 1" to 1.5" diameter up to 15" apart. Also includes adapter bushings and centering cones: $750.
  • Optional Q125A - 1.250 x 40" long Boring Bar Kit with bushings and cones for use with the Q175 or Q150 equipment - bores holes from 1.5" to 4" diameter up to 24" apart: $850.
  • Ajustable measuring/centering tools: $95. each- these mount inside boring bar
  • Clamping Coller Set: $119. extra - reduce vibration in holes 3.5 to 5.5" dia.
  • Cutting Tool Positioner: $199. - this adjusts the cutter height within .001"
  • Honing Tool : $97. - includes 220 grit & 100 grit honing stones
  • Facing-Sanding Tool : $194. - includes 6 coarse & 3 medium sanding discs
  • Grooving Tool Set: $590. - includes everything to machine retaining ring grooves
  • Extra Cutting Tools: $12. each (minumum purchase is quantity of 10)

PF150 PowerFeed

PF150 Powerfeed for the Q150

$1695.

Fits the Drill Head of a Milwaukee magnetic drill press. The powerful feed motor has a knob to adjust the variable feed rate. 10 inch stroke. Works in forward or reverse. RPMs are adjusted on the Milwaukee Control Panel. Designed to use with any Q150 line boring equipment. Also fits the Q125 by inserting a bushing. If your Milwaukee drill has a morse taper, you will need a larger size mounting plate and a $225 adapter to prevent losing 3 inches of stroke.

Click to watch a Video

PF175 PowerFeed

PF175 Powerfeed for the Q175

$1695.

Fits the Drill Head of a Milwaukee magnetic drill press. The powerful feed motor has a knob to adjust the variable feed rate. 10 inch stroke. Works in forward or reverse. RPMs are adjusted on the Milwaukee Control Panel. Designed to use with any Q175 line boring equipment. Also fits the Q125 by inserting a bushing. If your Milwaukee drill has a morse taper, you will need a larger size mounting plate and a $225 adapter to prevent losing 3 inches of stroke.

Click to watch a Video

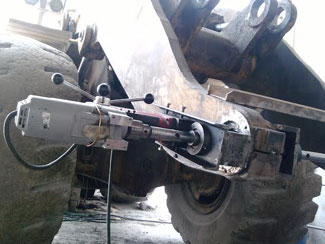

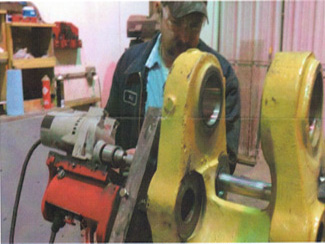

Picture shows how easy it is to set up and repair pivot holes on a bucket.

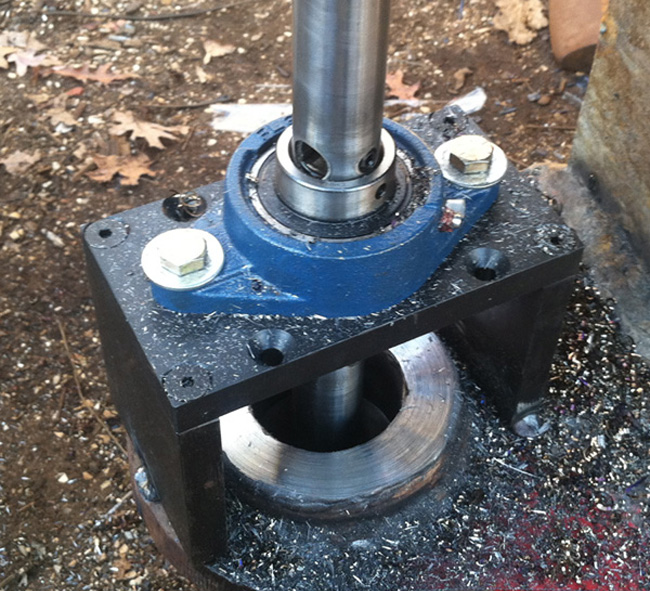

Customer photo showing how the bearing mounting plates are connected to standoffs that are tack welded in place. Notice the finished hole in the upper right.

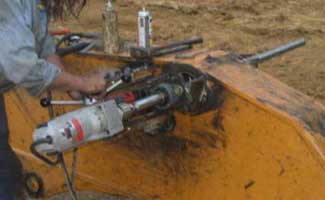

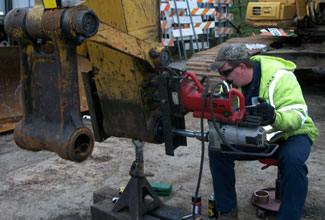

Photo shows the Line Boring System boring 2 holes in line on a boom.

Customer photo shows our Q150S Line Boring Machine boring 2 holes in line with a Milwaukee Mag Drill. The manual feed allows you to control the pressure to save cutting bits. Or try using our bungee cord for a crude automatic feed.

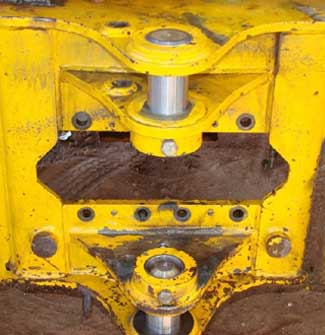

Photo shows Q150 boring bar used in center pin holes.

Photo shows customer boring center pin holes. Notice he temporarily welded a plate in position to attach the drill press assembly.

Bore Center Pins

Close up photo shows new center pins in newly bored holes. Line boring takes patience but with our tools its not rocket science.

Bore repair of center pin holes.

Customer photo: Bore repair of center pin holes.

Photo shows customers reboring link arm holes.

Photo shows customer reboring link arm holes.

Customer photo: Reboring holes while close to the ground.

Customer photo: Reboring holes while close to the ground.

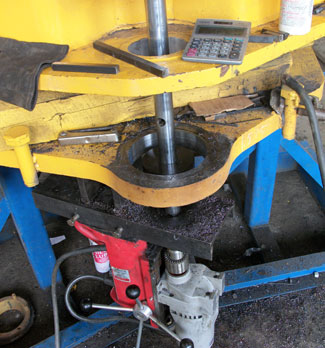

Customer photo shows how he line bores from upside down!

Customer photo shows how he line bores from upside down!

Photo of Q88A add-on option for reboring 1 inch holes.

Customer is reboring 1 inch holes on a snowplow attachment using the Q88A add-on option.

ReBoring holes on the end of a boom.

Customer is ReBoring holes on the end of a boom using an extended bearing plate on left side.

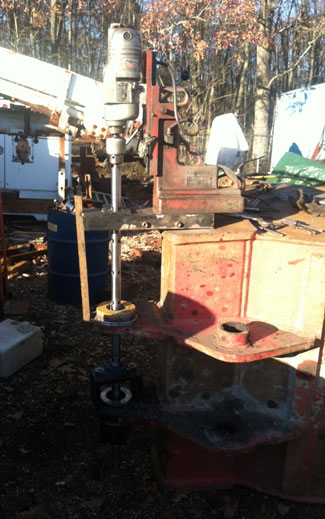

Photo shows a very old magnetic drill press driving the Q150 equipment

Even the old magnetic drill shown above can line bore using the Q150 equipment.

Picture shows the Q150 line boring some very large mining equipment

Very few jobs are too big for the Q150 shown under the red Milwaukee magnetic drill press.

WD40 when line boring

If you dont have any cutting oil, you can substitute WD40. But it is important not to weld on top of oil because it will harden the weld.

Reboring center pin holes

Customer photo shows reboring of center pin holes using 3 bearings. One in the adapter base at top, one down below, and one in the middle.

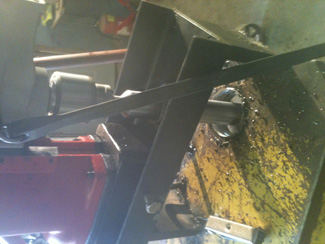

Reboring with magnetic drill press

Mag drill in our adapter base

Boring multiple holes in line

Mag Drill doing bore repair

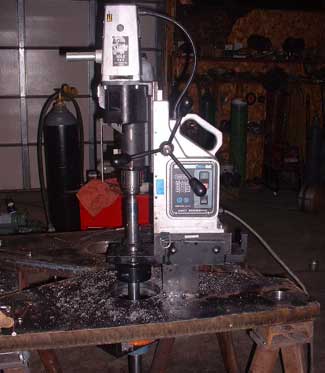

Photo shows the Q150S attached to a customers mag drill turning a torch cut hole into a finished 6 inch diameter hole.

Photo shows the Q150S with oversize adapter attached to a customers mag drill turning a rough torched hole into a finished 6 inch diameter hole. We have 18" long boring bars.

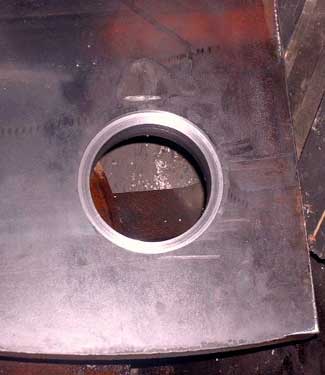

Picture shows what was a rough torch cut hole turned into a finished 6 inch diameter hole.

Close up photo shows a finished 6 inch diameter hole that was also counterbored 1/16 deep by the Q150S. Hole was originally torch cut by customer then ground and bored out smooth.

Photo of line bore equipment assembly

Customer's photo shows typical assembly of line bore equipment with Milwaukee magnetic drill. A chain was used to lift magnetic drill press in position. He used 3 bearings to reduce vibration of boring bar. If you look closely, you can just barely see the cabide cutting bit sticking out of the shaft next to the hole on the left side.

Line Boring machine equipment from American Machine Tools

Customer's photo shows another typical assembly of our line boring machine setup with the 72 inch shaft and the Milwaukee magnetic drill press.

Customers photo shows a typical setup to rebore 4 holes in line

Customer's photo shows a typical setup to rebore 4 holes in line, one after the other.

Customer shows how he was multi-tasking by setting up the Q150 with Milwaukee magnetic drill to line bore from the right side and bore weld with the BOA-408-AMT from the left side.

Customer's multi-tasking photo shows how he set up the Q150 with Milwaukee magnetic drill to line bore from the right side and bore weld with the BOA-408-AMT from the left side.

BOA-408-AMT Welding Package

$7195

Only $6995 if purchased with Q150 or Q175 set-up.

Photo of holes being welded in line Picture of BOA-308i-S1 welder

This bore welder system is for fast smooth perfect spiral welding in holes from 1.50" (32mm) to 8.0" (204mm) diameter. Connects to your Wire Feed MIG Welder with free adapter. Does a perfect spiral weld that is very easy to bore.

  • Mounts to either end of all new Q125, Q150 or Q175 line boring systems so you can leave the boring equipment setup while welding the holes.
  • Connects to your MIG wire feeder and power supply
  • Includes adapter to connect to your wire feed MIG welder.
  • Pass-through drive system features telescoping, reversible torch extension with precision lead-screw feed ensures accurate, repeatable weld bead placement ensuring proper bead to bead and bead to base metal penetration (weld thickness is easily adjusted by increasing or decreasing torch speed and wire feed speed)
  • Durable corrosion-resistant construction throughout
  • Lockable clutch allows single-plane first welds
  • Easily adapted to a variety of boring bar systems using standard BRS interchange kits
  • Pivoting torch head allows system to weld in large range of bore sizes with no torch change
  • All weld nozzles are electrically isolated, thread-on design
  • All weld tips are straight thread-in design; easily replaced and inexpensive
  • Excellent telephone tech support

Package includes

  • Adapter to fit your MIG welder
  • Weld-on adjustable mounting adapter
  • Custom heavy duty aluminum carrying/storage case
  • Arc start / stop / interrupt switch
  • Power cord
  • Operators manual
  • Tool kit
  • One piece motion device and controller with eight position borewelder mount
  • 1.25" stainless steel support tube
  • Mini diffuser
  • Mini nozzle (insulated)
  • Standard diffuser
  • (2) .8mm (.030") Stub tips
  • (2) .8mm (.030") Standard tips
  • Standard nozzle (insulated)
  • Stub nozzle (insulated)
  • Standard torch assembly with 24" extension tube and 120" conduit

Options Available

  • Consummables Kit (includes extra welding tips, nozzles, diffusers) $658. you will need this eventually
  • Small hole welding kit 1 - 1.5" dia
  • Auto-skip upgrade (you can add this at a later date)
  • Outside diameter welding torch for repairing pins
  • Face welding torch
  • Bore welder to boring bar interchange kit (allows units to share single support)
  • MIG Power supply or wire feeder

Click to request more Bore Welder info and prices be sent to you
Click to see VIDEO of our Bore Welder on the Q150

Picture shows horizontal welding in a hole using a cloth to shield the welding process Photo shows vertical welding in a hole Photo shows our Bore Welder on the left and our Line Boring Equipment on the right side

OPTIONS AVAILABLE for Q125, Q150 and Q175 Equipment:

Replacement Cutting Tools

Carbide Boring Cutter

Carbide

Cobalt Steel Boring Cutter

Cobalt

Carbide Chamfering Cutter

Chamfer

Carbide Facing Cutter

Facing

Borite Carbide Tool Holder

Borite

All of the above cutters are included when you buy a complete Q150 or Q175 setup.

  • Brazed carbide boring cutter 1/2" square: $12. They are 3.5" long. Just sawcut to length to fit in hole. Assume 1 per hole is needed. Can be sharpened on green silicon grinding wheel. Rake angle can also be ground steeper
  • Cobalt steel boring-finishing cutter 1/2" square: $12. Needs sharpening often but never breaks. Great for beginners and good for boring high spots in weld or for finish cut. Sharpen on any grinding wheel.
  • Brazed carbide Chamfering cutter 1/2" square: $12. Chamfers a 45 degree lead-in angle on outside of hole.
  • Brazed carbide Facing cutter 1/2" square: $12. Faces a path 5/8" wide. Can face overlapping paths.
  • Borite LH 1/2" holder with triangle carbide insert: $29. Reusable by changing the triangle carbide insert. Great for reboring holes larger than 3.5" diameter.
  • Borite 3-sided triangle carbide insert #PC300: $12.

Minimum order size is 10 cutters. We recommend C5 (or PC300) carbide for reboring steel plate and C2 carbide for reboring cast steel.Note: 1/2 inch = 12.5mm

Q88A 0.875" dia x 36" Boring Bar Kit for use with Q150 or Q175 equipment

$750.

Q88A add-on set to use  the Q150 to rebore holes 1 inch to 1.50 inch diameter

For reboring small holes using the Q150/Q175 system. Works from 1" to 1.5 inch diameter for holes spaced up to 20" apart, possibly more depending how you set it up. This set includes flanged insert bushings, centering cones, 1/4 inch square carbide cutters and a cobalt steel cutter. Rebores Bobcats, snowplow hitches, etc.

Q100A 1.000" dia x 36" Boring Bar Kit for use with Q150 or Q175 equipment

$795.

Q88A add-on set to use  the Q150 to rebore holes 1 inch to 1.50 inch diameter

For reboring small holes using the Q150/Q175 system. Works from 1.125" to 1.5 inch diameter for holes spaced up to 20" apart, possibly more depending how you set it up. This set includes flanged insert bushings, centering cones, 5/16 inch square carbide cutters and a cobalt steel cutter. To rebore Bobcats, snowplow hitches, etc.

Q125A 1.250" dia x 40" Boring Bar Kit for use with Q150 or Q175 equipment

$850.

Q88A add-on set to use  the Q150 to rebore holes 1 inch to 1.50 inch diameter

For reboring small holes using the Q175 system. Works from 1.5" to 4 inch diameter for holes spaced up to 24" apart, possibly more depending how you set it up. This set includes flanged insert bushings, centering cones, 3/8 inch square carbide cutters and a cobalt steel cutter. Great for reboring 1.5", 1.75", 2" diameter holes.

20 inch Boring Shaft

18 inch Shaft

$280. (1.250 diameter)
$350. (1.500 diameter)

$380. (1.750 diameter)

This short shaft is designed for boring single holes. There is a square hole for mounting a carbide cutter close to the end for getting into blind holes. May be used for reboring holes for truck axle bearings and valve bodies. The 1.750 diameter size can be made with a threaded end to install a boring head for $175 extra.

8 inch Capacity Boring Kit

$695.

8 inch capacity boring kit

  • Cutting Tool Adaptor Collar mounts on Q150 or Q175 shaft as shown in the lower photo to hold the cutter out far enough to rebore holes up to 8 inch diameter. The weight of the collar also means it acts a little like a fly wheel. It screws in to the same threaded hole that the set screw uses. The collar also has slots on the face of it so a cutter can be mounted there instead for facing or boring to the bottom of a blind hole.
  • Also includes 2 extra large diameter positioning cones to fit holes from 5 to 8 inches. The positioning cones have set screws in them to hold the cone in position on the shaft.
  • Also includes extra long bearing mounting plates to bridge over holes up to 8 inches diameter instead of only 5.5 inches diameter. These same plates are also used with our Facing-Sanding Tool.

This extra Kit is included with the Q150E8, Q175E8 and Q175XE8.

Adjustable Bearing Plate

$209.

8 inch capacity boring kit

  • This mounting plate has 4 adjustment screws to allow the fine adjusting of the position of your flange bearing before you bolt it down. The plate is available in two different sizes; Regular size to bridge over holes up to 5.5 inch diameter or large for 8 inch hole capacity.

This is included free with the Q150 and Q175 Kits.

Adapter Base for Magnetic Drill Press

$495.

8 inch capacity boring kit

  • This Adapter base with built-in bearing will hold the boring shaft load to prevent overloading the bearings in your magnetic drill press. It also has extra mounting holes to allow an extra flange bearing to be bolted directly underneath the existing bearing. For safety reasons the Adapter Base also clamps the magnetic drill in case of power failure. A jacking screw is provided for positioning. Approved by Milwaukee Tool Company Engineers for use with their magnetic drill press. Available in two bearing sizes; 1.500 or 1.750 and two lengths depending upon what is the length of the magnetic base of your drill. It has 8 mounting holes to screw on your standoffs and an extra threaded mounting hole for our optional bore welder.

This is included free with Q125-S, Q150 and Q175 Kits.

Telescoping Bore Gauge Set

$49.

Telescoping Bore Gage Set

6 piece Telescoping Gauge Set. Measures up to 6 inch (150mm) diameter holes. Insert the spring loaded prongs into hole. Plungers expand in hole to be measured. Use the knurled end to lock the setting, then measure accross the ends with the dial caliper included with your line boring equipment. Self-centering spring-loaded action with lock, satin chrome finish. Precision-machined hardened steel anvils with spherical tips; uniform contact pressure. Comes in plastic pouch for storage.

Included FREE with new Q150 & Q175 systems.

Threaded Measuring and Centering Tool Set

$95.

Threaded Bore Measuring Set

Fits thru the boring bar into the 1/2" square cutting tool ports. We include all the different lengths of threaded extensions with rounded ends you will need for holes 1.75" to 8". These tools are used to measure a hole thru the tool port in the boring bar. After gaging the hole you measure accross the threaded gauge rods with the dial caliper. These adjustable tools can also be used to position the boring bar inside a worn hole during setup. A simple low cost alternative to the Snap Gauge Set below.

Boring Bar mounted Snap Gauge Set to measure holes

$589.

Professional bore measuring Snap Gage Set

The most accurate, reliable and easy way to measure the holes but also our most expensive. These hole size measuring gauges fit inside the boring bar into the 1/2" square cutting tool ports. These tools are used to accurately measure the bored hole without removing the boring bar. Very accurate to within .001". The gauges are spring loaded to expand inside the bore. The size is locked with a set screw using a small hex wrench. The gauge is then removed and a caliper is used to accurately measure the length of the gauge. If you will be doing a lot of bore repair then you will want this.

Cutting Tool Positioner

$199.

Cutting Tool Positioner Image shows how to adjust the Cutting Tool

Two piece gauge that offers an easy way to accurately adjust your cutter height to within .001 inch on the radius. It also holds the cutter while you tighten the set screw in the boring bar against the cutter shank. Set screws onto the cutting tool and adjusts the position up or down by .001" per line of rotation on the outer ring. Works for adjusting the cutter height for holes 2.25" diameter and larger. Need to mount to other end of cutter for holes smaller than 2.5". For holes larger than 2.5" diameter it can be left on the cutter while boring holes. We include a hex wrench for the set screw that is inside the inner collar.

We recommend this for holes 2.5" diameter and larger.

Small Cutting Tool Positioner

$198.

Photo shows how you can adjust the boring tool with the dial indicator

Fits in a inch square hole in the boring shaft and very accurately adjusts the height position to within .001" on the radius. Works for setting the cutter for boring holes 1.75 to 2.5" diameter. Can be left in the boring bar while boring. Works by rotating the screw head against the boring bar. The screw is threaded into the cutter. Each line of rotation equals .001 inch of position change. Much easier than using a dial caliper or dial indicator. Set includes adjuster, 3 carbide cutters and a sharpie marker (to draw a reference line on the boring bar). Extra cutters cost $35 each.

We recommend this for holes 2.5" diameter and smaller.

Adjustable Dial Indicator:

$49.

Photo shows how you can adjust the boring tool with the dial indicator

If you do not already own an Adjustable Dial Indicator, then buying this option could be a no brainer. Every machine shop should have one. This option works great for accurately adjusting your cutter height within .001 inch. The magnet will attach to our mag drill adapter base, or to one of our bearing mounting plates, or to the boring shaft.

The assembly includes:

  • Magnet with V-shaped base and on-off switch
  • Adjustable arms with connectors and fine adjust
  • Dial Indicator - accurate to .001 inch

Good measuring method for all size holes.

Dial Indicator and magnet mounting adapter

$69.

Image of Dial Indicator with Magnet being used to set cutter height

This is much better than it sounds. Includes a Dial Indicator with .001 inch increments, and also includes a magnetic mounting adapter. This solid mounting system eliminates the unsteady attachments normally used with a dial indicator when adjusting your cutting tool height.

Good measuring method for all size holes.

Cutting Tool Micro-Adjuster

$340. (Dial type), $542. (Digital type)

Cutting Tool Micro Adjuster

A very accurate way to adjust your cutter height. Clamps to the carbide carbide cutting tool shank and very accurately adjusts the position. Can be used on either end of the cutter. Works for setting the cutter for boring holes 2.5" diameter and larger. Extremely accurate to within less than .001".

Unfortunately you have to always remove it after each use before boring. The Cutting Tool Positioner is easier to use.

Precision Dial Indicator Bore Gauge

$124.

Dial indicator Bore Gauge
  • Measues 2.0" - 6.0 inch with 11 anvils
  • Indicator is in inches
  • 0.0005" Graduation indicator.
  • 6 inch probe depth
  • For measuring hole diameters, tapers, and roundness.
  • Self centering.
  • Comes with AGD Group II dial indicator.
  • Fitted case with anvils index
  • Accurate way to measure your holes
  • Time consuming to use.

Honing Tool

$97.

Honing Tool Expands to fit your bore. 100 Grit honing stones included

Attaches to your Mag Drill chuck or any other portable drill. 2 to 7 inch range. Comes with 2 sets of 100 Grit honing stones that are great for removing the last .001 inch without going over but we also include 220 Grit honing stones for super smooth finishing work such as brake cylinders.

We recommend this.

Set of 2 Slotted Clamping Collars

$119.

Clamping Collars

Reduce the vibration of your carbide cutter with this option. These 2 clamping collars can be attached at any time to reduce cutting tool chatter. They are slotted to fit around the square shank of your cutter. One on each side of the cutter but still allowing access to the set screw in the boring bar to adjust your cutter height. Each clamping collar has a set screw to clamp against the cutter shank. Great way to reduce vibration when boring holes 3.5 inches diameter or larger up to 5.5 or 6" diameter.

We recommend this for 4" and 5" holes.

Facing-Sanding Tool

$294.

Picture of Facing-Sanding Tool Kit

Use to sand and face the damaged boss around a hole and make it like new again. The set includes an 8 inch diameter aluminum sanding disc that screws into our Q150 boring shaft and is designed to spin at 350 RPM. This kit also includes 6 adhesive coarse sanding discs for metal removal and 3 adhesive medium sanding discs for metal finishing. Discs are 8 inches diameter. You can add an 8 inch capacity bearing mounting plate if needed for only $49 extra.

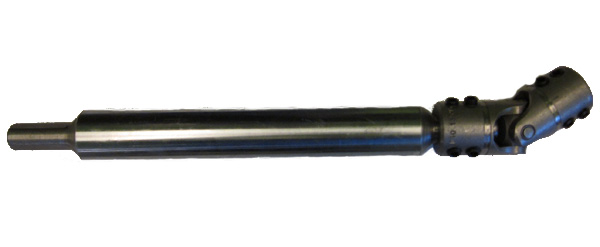

Universal Joint for Mis-alignment

$695.

Universal Joint for misalignment

Used to crudely compensate for misalignment of the Boring Shaft and the Magnetic Drill Press. Comes with Adapter Shaft (shown in photo) to connect the Universal Joint Coupling to your 3/4 inch Drill Press Chuck.

This is not needed for 99 percent of line boring jobs.

Shaft Extender

$495.

Extension tube to connect 2 boring bars together to make 1 long shaft

This tube is specifically engineered to connect 2 line boring shafts together. This will allow you to line bore long distances. Connects the 2 shafts from the Q150XLS, Q150E, Q175XLS to be 9 feet long. Connects the 2 shafts from the Q175XLM or Q175E to be 12 feet long. The outer diameter is 2.25 inches(Q150) or 2.50 inches(Q175). The length is 18 inches. Made from high strength tubing with inner diameter being an exact fit over the shafts.

Retaining Ring Groove Cutter Set

$590.

Portable Retaining Ring Groove Cutter Set
  • 3 different lengths of inserts to fit boring shaft for every size hole up to 8 inches (if used with our 8 inch capacity boring collar option)
  • All the different widths and lengths of cutters you need to machine out standard size retaining ring grooves in holes from 2 to 8 inches (all sizes not shown in photo).
  • Compression springs to pressure the cutter.
  • Set screws to adjust the spring pressure in holes up to 5 inch diameter.
  • Positioning bolts to adjust the spring pressure in holes from 5 to 8 inches diameter.
  • Hex wrenches to adjust set screw and release spring.

Milwaukee Magnetic Drill Press with 3/4 inch chuck to fit the shank of our line boring shaft

$1595. if purchased with a line boring setup.($1695. if purchased separately.)

Milwaukee Magnetic Drill Press Milwaukee logo
  • You will find many uses for this drill, besides boring.
  • Approved by Milwaukee Tool Company engineers for use with the Q150 line boring Adapter Base.
  • Uses 120 volts electricity (see below for optional $219 transformer if your country has 220 volts).
  • Powerful 12.5 Amp motor
  • Swivel-lock Adjustable Positioning Base
  • 9 inch stroke, 11 total stroke if stops are removed
  • Variable Speed controlled by a knob
  • Feedback Speed Control
  • Computer Controlled Reverse is variable speed
  • Solid State Electronic Switching
  • Full Wave Holding Power
  • Superior Cutting Tool Performance
  • Line Lock-Out: Prevents tool from operating should voltage be restored to an interrupted line when switch is locked in the "on" position.
  • Motor/Magnet Interlock
  • Base/Chip De-Mag
  • Soft-Start
  • Weight: 65 Lbs.
  • We normally have it in stock

The Dial to adjust the RPM on the Milwaukee Magnetic Drill Press goes from 0 to 9:

  • 0 = 0 rpm
  • 1 = 39 rpm
  • 2 = 78 rpm
  • 3 = 117 rpm
  • 4 = 156 rpm
  • 5 = 195 rpm
  • 6 = 234 rpm
  • 7 = 273 rpm
  • 8 = 312 rpm
  • 9 = 350 rpm = top speed

Voltage Transformer/Regulator

$219.

Voltage Transformer with regulator

Optional Protective Wood Shipping Box: $20. For using our drill press in Africa or Middle East. Fully automatic servo motor-type A.C. voltage transformer and regulator, 3000 watts. It will convert your 220-240 volts 1 phase electricity to 110-120 volts to use the Milwaukee magnetic drill press in countries where 120 volts is not available. Not to be used on American 220-240 Volts. This voltage regulator will stabilize a voltage fluctuation between 50v-130v or 160v-245v (+/- 4%). Weight 26 Lbs. (12 kg)
