OPTIONS AVAILABLE for the Edwards 60 ton Ironworker:

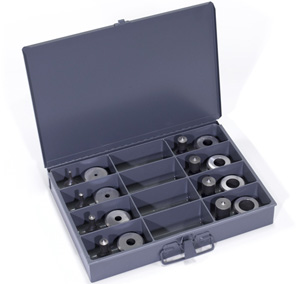

TOOL BOX OF 8 round PUNCH & DIE SETS:
$379.FREE with purchase of a new Ironworker!
- Choose 8 sizes from 3/16 up to 1-1/16 diameter.
- These hardened Punch & Die Sets are available in the following sizes: 1/8, 5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 13/32, 7/16, 15/32, 1/2, 17/32, 9/16, 19/32, 5/8, 21/32, 11/16, 23/32, 3/4, 25/32, 13/16, 27/32, 7/8, 29/32, 15/16, 31/32, 1", 1-1/32, 1-1/16.
- We normally recommend the following clearance hole sizes for common size American bolts - 7/32 for #10 screws, 5/16 for a 1/4 inch screws, 7/16 for 3/8 bolts, 9/16 for 1/2 bolts, 11/16 for 5/8 bolts, 13/16 for 3/4 bolts and 1-1/16 for 1" bolts.
- The die will have 1/32" clearance over the punch.
HARDENED PUNCH & DIE SETS
- ROUND up to 1-1/16": $49.
- METRIC ROUND up to 27mm: $149.
- OVERSIZE ROUND up to 1-9/16": $99.
- OBLONG up to 1-1/16": $189.
- SQUARE up to 13/16": $169.
- HEX up to 25/32": $239.
The die will have 1/32" clearance over the punch. A notched coupling nut ($95) will be needed to use a 13/16 square punch.
COPER-NOTCHER: INCLUDED FREE on 60 ton

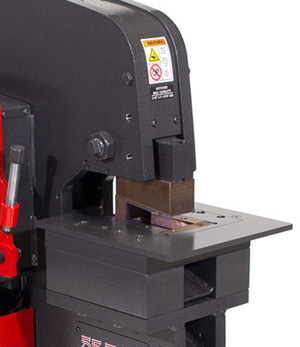

Coper Notcher tool is used to bite off a piece of metal instead of using a vertical bandsaw or torch. This tool has an upper jaw the bites down into a lower jaw. The capacity to notch steel is 2-1/2" wide up to 5" long in 3/8" thick steel. It is capable of biting off a square shape, rectangle shape or V-shape. The rectangular notch is useful for coping back a flange on a piece of angle iron so it can fit up against another angle or channel at 90 degrees. You can V-shape notch by turning your part at 45 degrees to the machine. V-notching is useful when making a frame out of angle iron. You V notch where you plan to bend the angle to 90 degrees. Click to see a VIDEO
The safety guard was removed for the photo, but you must use the safety guards to help prevent accidents.

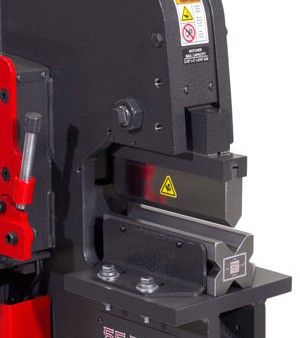

PRESS BRAKE TOOL:
8"
Bend flat steel that is up to 1/4 inch thick! Sometimes 3/8" thick. This Press Brake Tool includes a standard wedge shaped top die and a V-shaped four-way bottom die that allows for 1/16", 1/8", 3/16", and 1/4" material to be bent to a 90° angle or smaller angle. The bottom brake die is held with brackets that easily bolt to the mounting table. Repeat the same bend angles by using the Ironworker electric stroke control to stop the top die at the desired depth for the angle you bend.
It easily mounts on the left side of the machine after you unbolt the punching assembly. Click to see a VIDEO

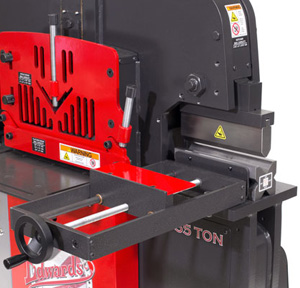

PRESS BRAKE TOOL BACK GAUGE:
.
How to make REPEAT BENDS? Use this Back Gauge to measure the bend line distance for your press brake tool along with using the electric stroke control that is included with your Edwards 55 ton Ironworker. Just bolt it on to the Edwards Ironworker Brake Tool. It has an easy to use hand crank to position it with your tape measure.
PIPE NOTCHING TOOL:
- Pipe Notcher Housing: (needed)
- 1/2" Pipe Notching Die:
- 3/4" Pipe Notching Die:
- 1" Pipe Notching Die:
- 1-1/4" Pipe Notching Die:
- 1-1/2" Pipe Notching Die:
- 2" Pipe Notching Die:

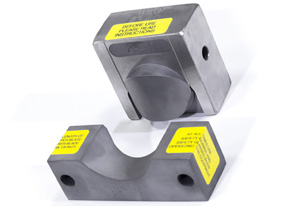

The Pipe Notcher saves the time of cutting and grinding to make a semi-circle saddle style 90 degree joint connection of one piece of pipe to another. Just stick the end of your pipe into the housing and step on the foot pedal, then rotate 180 degres and repeat. Total time to make a perfect notch is 8 seconds. Great for making railings and cattle fencing out of schedule 40 pipe. Schedule 80 size and Tubing size notchers are available on special order. To order you buy the Pipe Notcher Housing plus the Notching Die. It easily mounts on the left side of the machine after you unbolt the punching assembly. Click to see a VIDEO
The safety guard was removed for the photo, but you must use the safety guards to help prevent accidents.

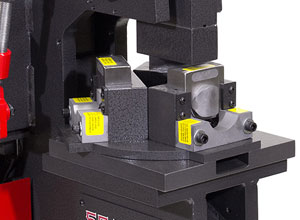

TURRET FOR PIPE NOTCHERS:
.
This turret holds up to 3 different size pipe notching dies and rotates so that you can quickly position the size you want for your next notch. It easily mounts on the left side of the machine after you unbolt the punching assembly.

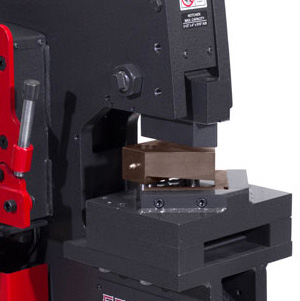

ANGLE V NOTCHER:
.
The Angle Notcher bites out a 92° V-notch out of the lower leg of angle iron. V-notcher works on angle iron up to 3" x 3" x 1/4" size. This is great for making steel frames out of angle iron that is to be bent at 90 degress. It easily mounts on the left side of the machine after you unbolt the punching assembly. Please note that if you plan on doing a small number of V-notches, you can save money by using the free coper-notcher instead.

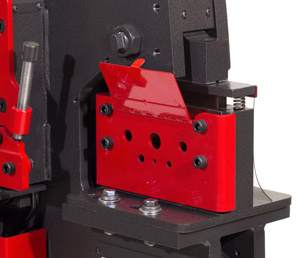

ROD SHEAR :
.
The flat bar shear on the Ironworker can cut round rod but the ends do not look pretty. If you need to cut a lot of solid round rod without the blade leaving a distorted flat spot at the end, then you will want this tool. It cuts 1/4", 3/8", 1/2", 5/8", 3/4" and 1" solid round rod. It easily mounts on the left side of the machine after you unbolt the punching assembly.
BACK GAUGE, Manual Cut (shown):
.BACK GAUGE, Automatic Cut(not shown):
.
The Back Gauge measures out 48 inches for repeat cutting of parts to length on the Angle Shear and Flat Bar Shear. On the back of the 55 ton Ironworker there is a threaded hole to screw in this Back Gauge.
The Automatic Cut version has a trigger that you push the metal against and that automatically cycles the machine to cut your metal without stepping on the foot pedal.

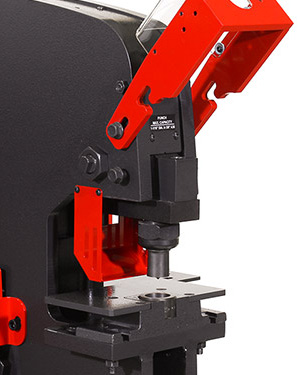

OVERSIZE PUNCHING ASSEMBLY:
.- (for holes up to 1-9/16" diameter)
- EXTRA LARGE 241 PUNCH ASSEMBLY: .
- (for holes and hole patterns up to 4" diameter)
If you need to punch holes larger than 1-1/16 diameter, then you need either the Oversize Punching Assembly (1-9/16" capacity) or the Extra Large 241 Punching Assembly (up to 4" capacity). The Extra Large 241 Punching Assembly can also hold special multi-hole punches so you can punch unusual shapes or multiple holes at one time as long as they can fit within a 4" circle.
The safety guard was moved for the photo, but you must use the safety guards to help prevent accidents.
3/8" thick PUNCH GAUGING TABLE:
.1" thick PUNCH GAUGING TABLE:
.

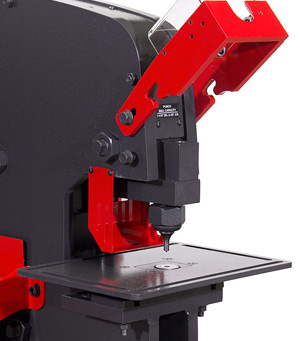

If you have repeat position hole punching to do then you need one of our Gauging Table Kits. It comes with a 12" x 16" table that bolts onto the standard or oversize Pedestal Die Table. The kit also includes an adjustable fence bar for front to back and an adjustable fence bar for left to right positioning. Each fence bar has handles that clamp down to the table slots to guide your metal parts into the same position for making repeat parts.
The safety guard was moved for the photo, but you must use the safety guards to help prevent accidents.
FENCE GUIDES:
.

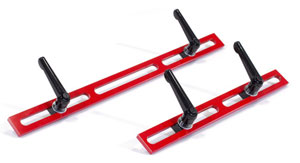

A Fence Bar can be used as a straight edge on your flat bar shear to guide a perfect 90 degree cut. The flat bar shear table plate has a mounting slot for it.
The fence bars also come free with the punch gauging tables shown above to act as positioning bars: 1 behind the punch and 1 to the left of the punch. Great for punching holes in the same exact positions.
STRIPPER REDUCING PLATE:
.

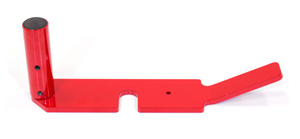

The purpose is to minimize distortion when punching thinner metals, especially when using smaller punches. It mounts to your stripper bar with 2 screws and has a spring loaded pin to align it. It can be swung away when its not used.

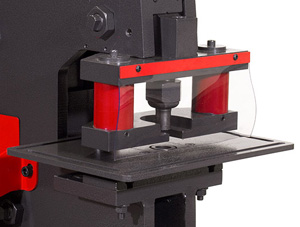

URETHANE STRIPPER :
.
This special stripper works differently than the less expensive Stripper Reducing Plate because it maintains constant pressure while punching which will minimize distortion of delicate metal parts, thin metal parts and soft copper buss bars.

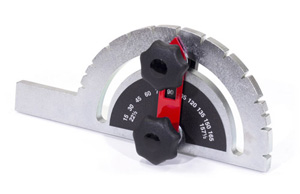

PROTRACTOR ANGLE GAUGE:
.
Set any angle you want on this Protractor Angle Gauge when shearing flat steel or when punching slotted holes. The Protractor has notches every 15° and also at 22.5° but it is often used at 90°. It works by fitting into the slot on the shear table, punch gauging table or up against the punch table. Its also reversible so people who are left handed will find it just as easy to use.

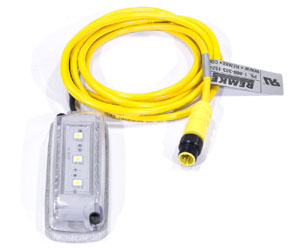

WORK LIGHT :
.
Is your show not well lit? Then consider this super bright LED light that plugs into all Edwards Ironworkers made after 2014 with an M12 connector and has a 100,000 hour rating. Super durable lexan lens and magnetic base allow you to attach the light on any metal surface on the machine. Good lighting can help improve the quality of your work.
HYDRAULIC ACCESSORY CONNECTOR:
.
This cool option allows you to easily plug in another machine to the hydraulic pump of your ironworker such as the pipe bender, 20 ton tabletop shop press, 40 ton, 60 ton, or 110 ton shop press, radius rolling machine or the horizontal press brake. See below. Since it is very difficult to install this later it must be ordered when you buy your machine.
EDWARDS PIPE & TUBE BENDER:
.
This machine connects to the Hydraulic Accessory Connector on your new Edwards Ironworker.
- 10 Tons of force
- 2" (10) Schedule 40 Pipe Capacity
- 2-1/2" (00) .095" wall Tube Capacity
- 2-1/4" .083" Chromoly Capacity
- Die Sets Sold Separately - click to see the list of die sets
- Cylinder 1-3/4" ram
- Stroke 14"
- Heavy Duly All Steel Construction
- Smooth, Fast operation
- 180 Degree Bend Capacity
- Easy To Use Hand Controls
- Operates Horizontal or Vertically
- Heavy Duty Rolling and Locking Stand
- Auto Stop Feature For Repeatable Bends
- Quick Disconnect Hoses
EDWARDS 20 TON TABLE TOP PRESS:
.
- Plug in accessory to a new Edwards Ironworker machine that has the hydraulic accessory connector option.
- Heavy duty all steel construction
- Easy to use hand controls
- Quick disconnect hoses
- Cylinder with 2 inch Ram, 6-1/4" stroke
- Width between frame columns: 20"
- Excellent table top machine
Optional Press Brake Tooling available:
18 inches long .

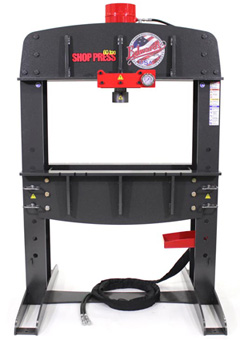

EDWARDS LARGE HYDRAULIC SHOP PRESS:
40 ton / 60 ton / 110 ton
The 40 ton, 60 ton and 110 ton Shop Presses are available as a plug in accessory to a new Edwards Ironworker machine that has the hydraulic accessory connector.
- Heavy duty all steel construction
- Easy to use hand controls
- Quick disconnect hoses
- Stroke: 12 1/4"
- Width inside frame: 40 ton: 38" / 60 ton: 42" / 110 ton: 48"
- Height inside frame: 40 ton 38" / 60 ton: 39" / 110 ton: 37"
- Optional Press Brake Tooling as seen in photo: can bend 3/16 x 32", 1/4 x 24", 3/8 x 6" wide.
- Press Brake Tooling:
- 12 inches long
- 18 inches long
- 24 inches long
- 32 inches long
- 36 inches long
- 40 inches long
EDWARDS RADIUS ROLLING MACHINE:
.
For curving flat bar, pipe, tubing and angle iron. Plug it into your Edwards Ironworker with the Hydraulic Accessory Connector. Dial in the variable speed hydraulic drive for each bending jobs. Easily change the machine from vertical for smaller parts to horizontal for long parts. The machine comes standard with a set of flat rolls.
- Capacities:
- Angle Iron: 2 x 2 x 1/4.
- Square Tube: 2 inch with 1/8" wall thickness.
- Flat Bar: 4 x .75" easy way / 3/8 x 2 hard way
- Round Pipe: 2" schedule 40 (optional rolls required)
- Round Tube: 2.5" dia x .095 wall (optional rolls required)
- Round Bar: 1.375" diameter (optional rolls required)
EDWARDS HORIZONTAL PRESS BRAKE:
.
This machine comes with standard V-die tooling for simple bends but you can put other different tooling shapes on the vertical shafts of this machine to form, bend, and straighten metal. This machine can quickly connect to your Edwards Ironworker. Designed for maximum tooling flexibility, the 4 pin locations are locked with a simple crank for inboard tool squaring. Digital encoder reads positive stop for accurate repeatability within 0.01".
Stroke: 10 inches. Work height: 38 inches
