CNC BED MILLING MACHINES

American Machine Tools Company is accedited by tde Better Business Bureau! Click to verify. We accept credit cards for up to $10,000.

We sell the Birmingham Bed Type Mills made in Taiwan with American made Centroid CNC controllers for the USA, Canada, and Latin America.

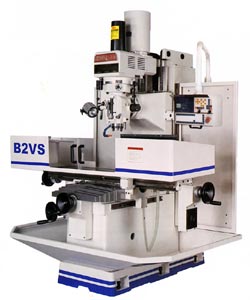

B2VS CNC Bed Type Mill (made in Taiwan)

Birmingham B2VS Bed Mill Photo of Centroid CNC Control

with CENTROID M-400 CNC CONTROL (made in USA)
Click to Request a Quote for this machine

  • Table size: 10" x 54"
  • Travel: X = 30", Y = 18", Z = 19"
  • Table Load Capacity: 1500 pounds
  • Spindle Taper: NT-30/40 or R-8
  • Spindle Speeds: 130 - 5160 RPM
  • Centroid M400 CNC
  • Heavy-duty meehanite castings
  • Hardened & ground square ways
  • Turcite-coated surfaces
  • Hardwheels for all axis
  • Manual or automatic quill
  • Easy to use control with Mastercam
  • Auto lubrication
  • Power draw bar
  • Halogen work light
  • Coolant system
  • Table top enclosure
  • Base chip coolant drop pan

Click to read about the CENTROID CNC Control

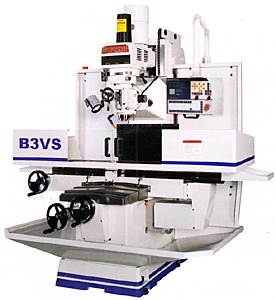

B3VS Bed Type Mill (made in Taiwan)

Birmingham B2VS Bed Mill Photo of Centroid CNC Control

with CENTROID M400 CONTROL(made in USA)
Click to see a VIDEO of the B3VS Bed Mill
Click to Request a Quote for this machine

  • Table size: 12" x 60"
  • Travel: X = 41", Y = 20", Z = 23"
  • Table Load Capacity: 2200 pounds
  • Spindle Taper:NT-40 or CAT-40
  • Spindle Speeds: 130 - 5160 RPM
  • Centroid M400 CNC
  • Heavy-duty meehanite castings
  • Hardened & ground square ways
  • Turcite-coated surfaces
  • Hardwheels for all axis
  • Manual or automatic quill
  • Easy to use control with Mastercam
  • Auto lubrication
  • Power draw bar
  • Halogen work light
  • Coolant system
  • Table top enclosure
  • Base chip coolant drop pan

Click to read about the CENTROID CNC Control

Click for conventional Vertical Milling machine specifications and photos.

Click for CNC Vertical Knee Mill specifications and photos.
